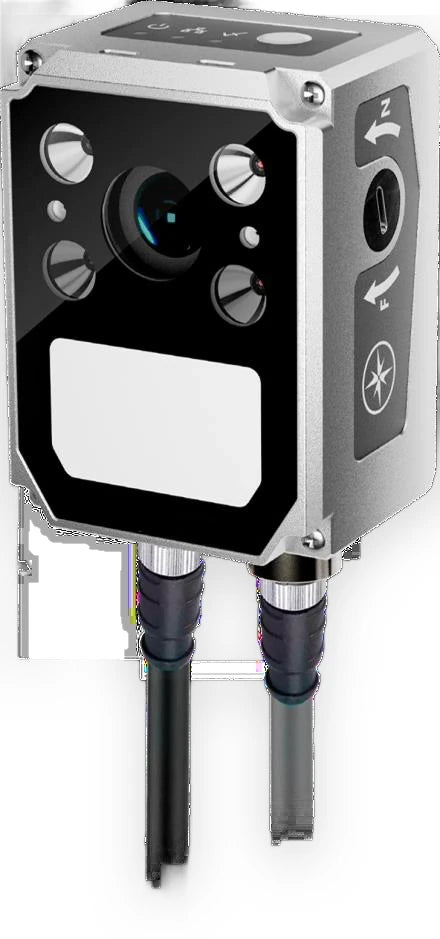

Representative photo of this series
Fixed code readers
Dual aviation plug LS-CRD-S04 series fixed industrial barcode reader, 1.2 MP, focal length 12 mm (LS-CRD-0052)
Model LS-CRD-0052
- Resolution1280 x 960
- Speed120FPS
- Focal length12 mm
- ShutterGlobal
$559.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flexible-reading fixed industrial barcode reader with a new optical system: selectable light source type, lens and light colour, new Quick & Max modes, and precise stepless focusing from 30mm to infinity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CRD-0052 |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Lighting system | Direct light (D), Polarized light (P), Uniform light (U) |
| Sight | 2 green LED dot aiming |
| Barcode level verification | ISO/IEC 15415, ISO/IEC 16022, ISO/IEC TR29158 (AIM DPM-1-2006) |
| Ordering note | The actual model needs to be confirmed before placing an order; the light source color is selected when ordering. |
| Lenses | 12mm (Standard) |
Optics
| Focus | Automatic / Manual focus system |
|---|---|
| Field of view | 31° horizontally, 20° vertically |
| Focal length (mm) | 12 |
Sensor and imaging
| Image sensor | 1280*960 Pixel Global Shutter CMOS |
|---|---|
| Max acquisition frame rate | 120FPS |
| Resolution | 1280 x 960 |
| Shutter | Global |
Interfaces and I/O
| Communication interface | Ethernet 100 Mbit/s, RS232 |
|---|---|
| Supported communication protocols | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP |
Light
| Lighting color | Red / White / Blue |
|---|
Environment and compliance
| Ambient temperature | -10~50°C |
|---|---|
| Certification | CE, FCC, RoHS |
Electrical
| Input/Output IO | Non-polarized 2-way isolated IO input + Non-polarized 3-way isolated IO output |
|---|---|
| Powered by | 24V DC |
| Protection level | IP65 |
| Voltage | 24 V DC |
Mechanical
| Shipping weight | 0.59 kg |
|---|
