Area scan cameras

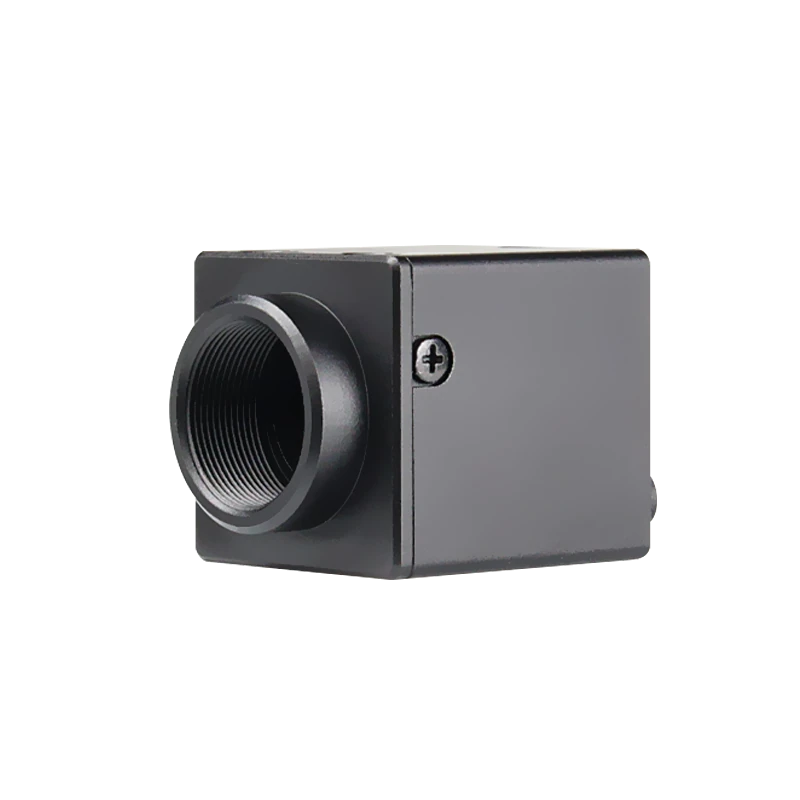

Mini area scan camera, 4.9 MP, USB3, Color/Mono (LS-CMR-0457)
Model LS-CMR-0457
- Resolution2568*1920
- SensorRolling shutter
- InterfaceUSB3.0
- Speed60FPS
- Lens mountM10.5
- Mono / colourColor/Mono
$239.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This series of ultra-miniature USB3.0 area scanning cameras include both color and monochrome models,rolling shutter. Optional M10.5 or M12 lens interfaces are available.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0457 |
|---|---|
| Remark | Ultra - miniature |
| Camera type | Ultra micro USB3.0 camera |
| Spectral response | Color:390nm~650nm;Mono:380nm~940nm |
| Standard accessories | 3m USB3.0 cable |
Sensor and imaging
| Resolution | 2568*1920 |
|---|---|
| Pixel size | 2.2 μm |
| Shutter | Rolling |
| Frame rate | 60FPS |
| Sensor type | Rolling shutter |
| Effective pixels | 5MP |
| Mono/color | Color/Mono |
| Max Frame Rate | ROI of any size (minimum ROI resolution 96x96) |
| Gain | 1.0x–15x |
| Dynamic range | 74.3dB |
| Exposure time | 8us-199ms 998us |
| Exposure mode | Manual exposure/auto exposure/area exposure |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| External trigger interface | 4 pin PH1.5mm 180° Wafer holder, TTL-5.0V level |
| Lens interface | M10.5 |
Light
| Color/Mono | Color/Mono |
|---|---|
| Mono / colour | Color/Mono |
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
Electrical
| Output Image Format | RAW8, BMP24, MONO8 |
|---|---|
| Trigger mode | Continuous operation, software trigger, hardware triggerTrigger |
| Power supply | USB 5V power supply |
| Typical Power Consumption | Max.Power consumption:<1.2W,Standby:0.5W |
| Voltage | USB 5V power supply |
Mechanical
| Target size | 1/2.5" |
|---|---|
| Lens mount | M10.5 |
| Optical Size | 1/2.5" |

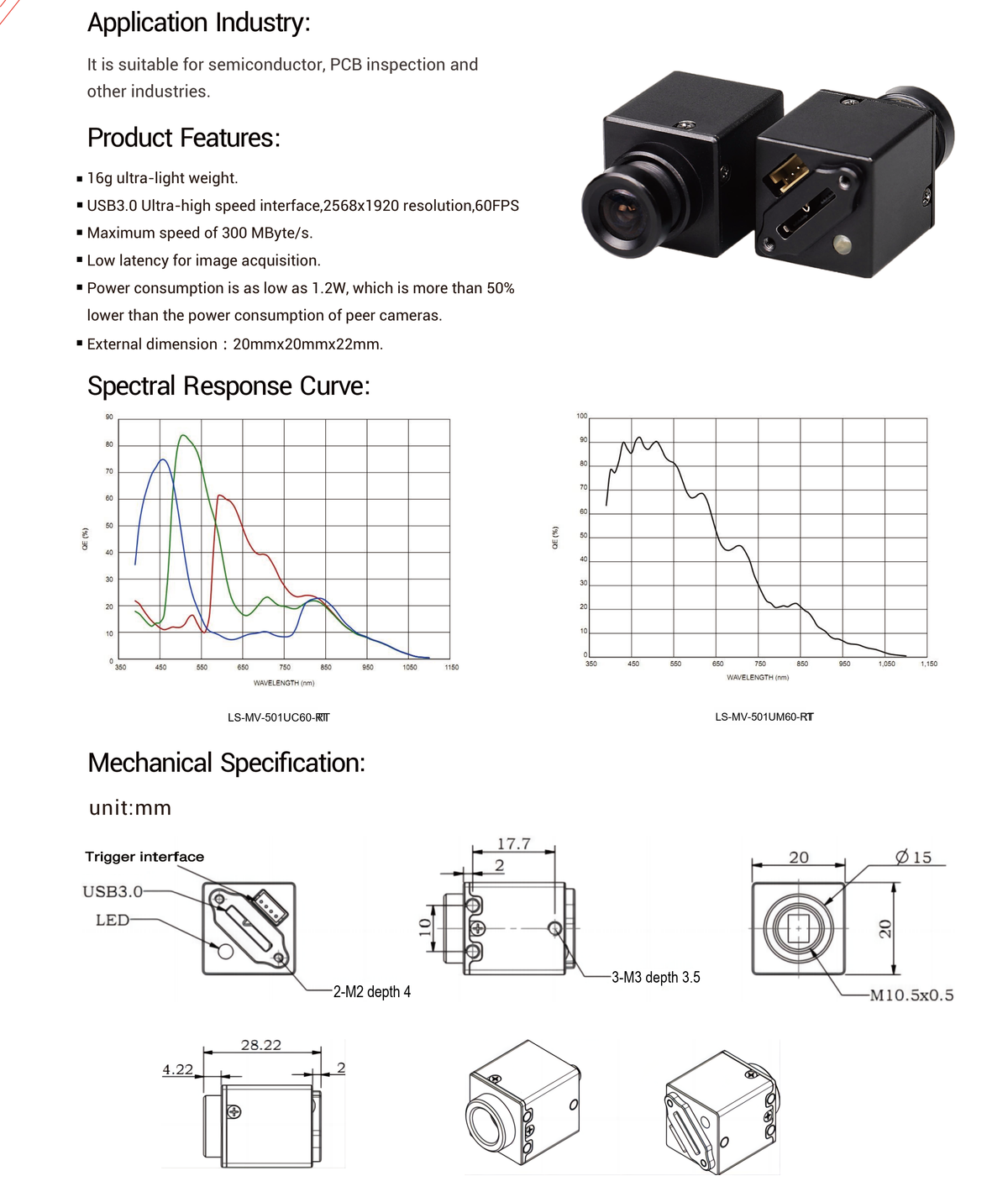

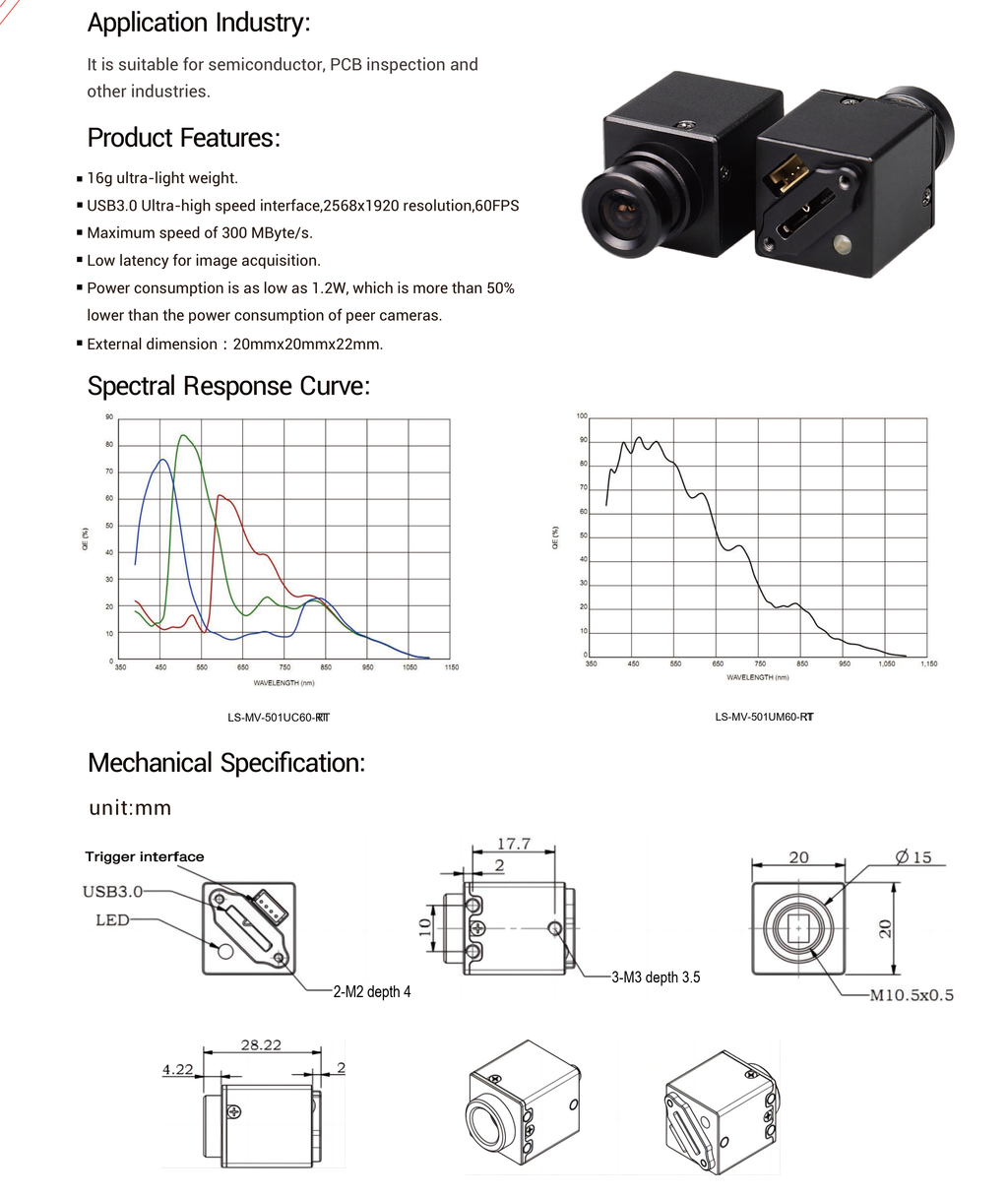

| Dimension | 20mmx20mmx22mm (excluding lens interface length) |
| Weight | 16g |
