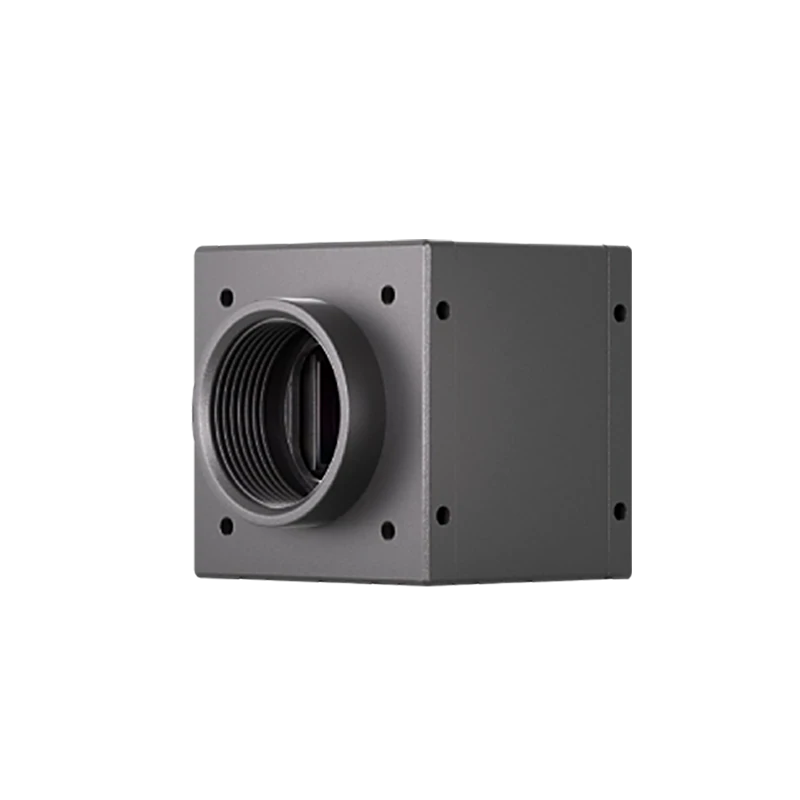

Microscope camera, 20 MP, USB3, Color (LS-CMR-0453)
Model LS-CMR-0453
- Resolution5480*3648
- SensorRolling Shutter
- InterfaceUSB3.0
- Speed22FPS
- Lens mountC-mount
- Mono / colourColor
$569.00
Ships in 2-3 weeks
0.41 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
This series of Microscope USB3.0 area scan cameras includes color and monochrome,global and rolling shutter.Conforms to USB3.0 ultra-high speed communication protocol.Suitable for medical imaging,Microscopic imaging,low light imaging and other applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0453 |
|---|---|
| Remark | Microscope |
| Camera type | Microscope USB3.0 Camera |
| Spectral response | 390nm-650nm |
| Support format | RAW, BMP, JPEG, PNG |
| Compatibility | USB3.0 Vision,GenlCam,HALCON,LabView,OpenCV |
Sensor and imaging
| Resolution | 5480*3648 |
|---|---|
| Pixel size | 2.4 μm |
| Shutter | Rolling |
| Frame rate | 22FPS |
| Sensor type | Rolling Shutter |
| Mono/color | Color |
| Max Frame Rate | 22FPS |
| Gain | Gain:1-32times,step size:0.125times |
| Bit depth | 12bit |
| Exposure time | 38us-60s |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Lens interface | C-Mount |
Light
| Color/Mono | Color |
|---|---|
| Mono / colour | Color |
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE,FCC,RoHS |
Electrical
| Output Image Format | RAW8,RAW16,BMP24 |
|---|---|
| Trigger mode | Software Trigger |
| Power supply | USB 5V power supply |
| Typical Power Consumption | <1.4W |
| IP Protection Rating | IP30 |
| Voltage | USB 5V power supply |
Mechanical
| Target size | 1" |
|---|---|
| Lens mount | C |
| Optical Size | 1" |

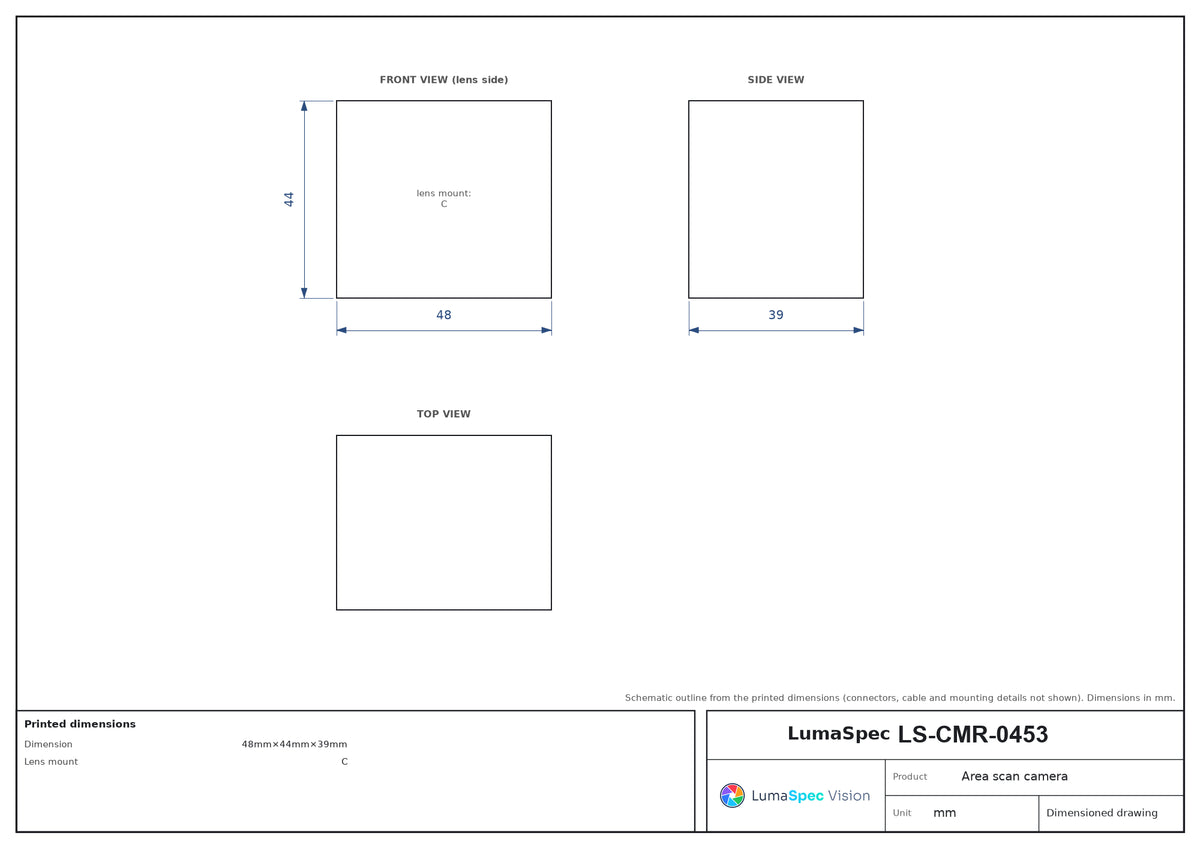

| Dimension | 48mm×44mm×39mm |
| Weight | <220g |
