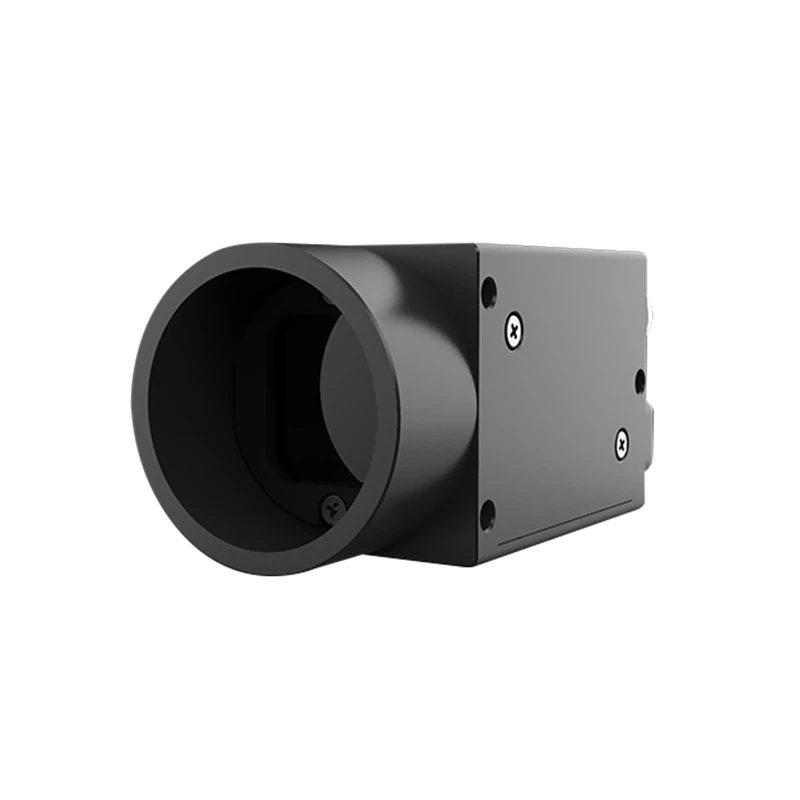

GigE area scan camera, LS-CMR-S29 series with CMOS sensor, 20 MP, GigE, Color/Mono (LS-CMR-0422)

Model LS-CMR-0422

InterfaceGigE (RJ45 Gigabit Ethernet)
Speed[email protected]
Lens mountC-mount
Pixel size2.4X2.4μm

$559.00

Ships in 2-3 weeks

0.18 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0422
Acquisition mode	Continuous/soft trigger/hard trigger
User-defined data area	2K Bytes
Vision standard	GigE Vision V1.2, Genlcam
Driver	Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Frame buffer	128M Bytes
Suffix options	Order suffix (connector / PoE / lens mount): -T-CL threaded aviation connector, C-mount (recommended); -T-L threaded, CS-mount (made to order); -TPO-CL PoE, dual extended IO, threaded, C-mount (made to order); -T1-C push-fit aviation connector, C-mount (recommended); -T1P-C PoE, push-fit, C-mount (made to order); -T, -TPO, -TPO-C (being discontinued).
Sensitivity	462mV 1/30s,388mV 1/30s
Synchronization	Continuous / software trigger / hardware trigger
Filter	Standard 650nm Infrared Cut-off Filter/Standard double-sided AR-enhanced film
Camera custom data	2K Bytes
Visual Standard Protoco	GigE Vision V1.2, GenICam
Support System	WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Drivers	DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Pregramming Language	C / C++ / C# / VB6 / VB.NET / Delphi / BCB / Python
Programmable Control	Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color.trigger mode, frame rate control

Sensor and imaging

Sensor	1" CMOS, IMX183
Shutter	Rolling
Pixel size	2.4X2.4μm
Effective pixels	20MP
Resolution @ frame rate	[email protected]
Pixel bit depth	12bit
Maximum gain	22
Exposure time (ms)	0.016~4194.3

Interfaces and I/O

Interface	GigE (RJ45 Gigabit Ethernet)
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
GPIO	1 optical isolation input, 1 optical isolation output; optional 3 inputs and 4 outputs
I/O port	1 optical input, 1 optical output; 3 input 4 output
Video output format	Bayer8,Mono8

Light

Color	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Working temperature @ humidity	0~50°C @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60°C @ 20%~95% (no condensation)
Working temperature	0 ~ 5 0 ° C
Working humidity	20-80% (Non-condensing)
Storage temperature	-30-60 ° C
Storage humidity	20-95% (Non-condensing)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

Electrical

Power supply	12~24V/POE, 48~57V (POE is optional)
Power	<2.5W
Power Requirements	9~24V(POE is optional)
Power consumption	< 2.66 W

Mechanical

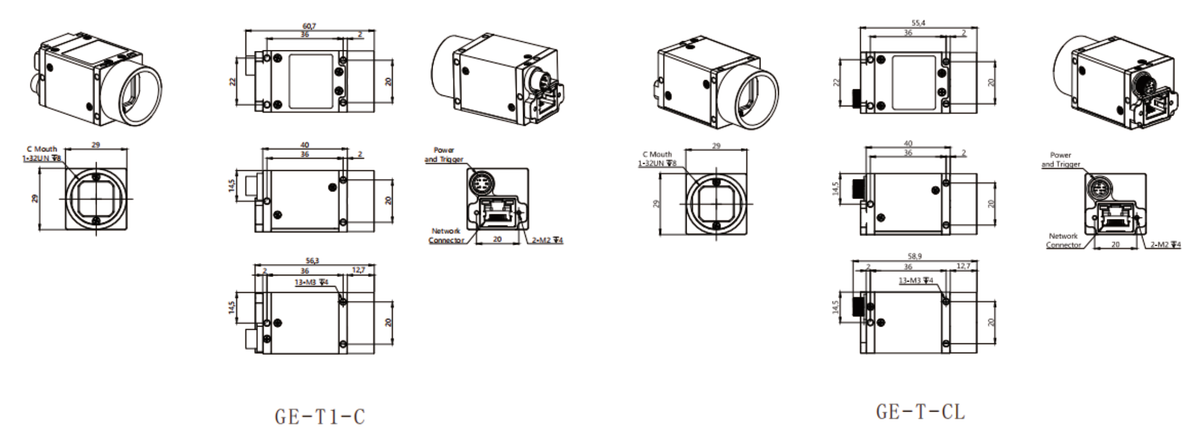

Dimensions	29 x 29 x 40 mm (without lens mount and rear shell interface)
Lens mount	C-mount is default, optional C or CS interface ( can provide M12 lens transfer interface accessories)
Weight	< 60 g

Downloads

Datasheet (PDF)LS-CMR-0422 · 1.5 MB

Features

Unique packet retransmission technology to ensure reliable data transmission
Built-in hardware accelerates image processing and reduces CPU utilization on the host side
Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
Pixels from 0.3MP to 65MP, CCD and CMOS are optional
Excellent SDK design, as simple as using a USB camera, plug and play
Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
SDK plug and play.
Supporting 12bit raw data output.
Multiple cameras work at the same time.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronic semiconductors
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the GigE area scan camera, LS-CMR-S29 series with CMOS sensor series

See all 40 models
