Area scan cameras

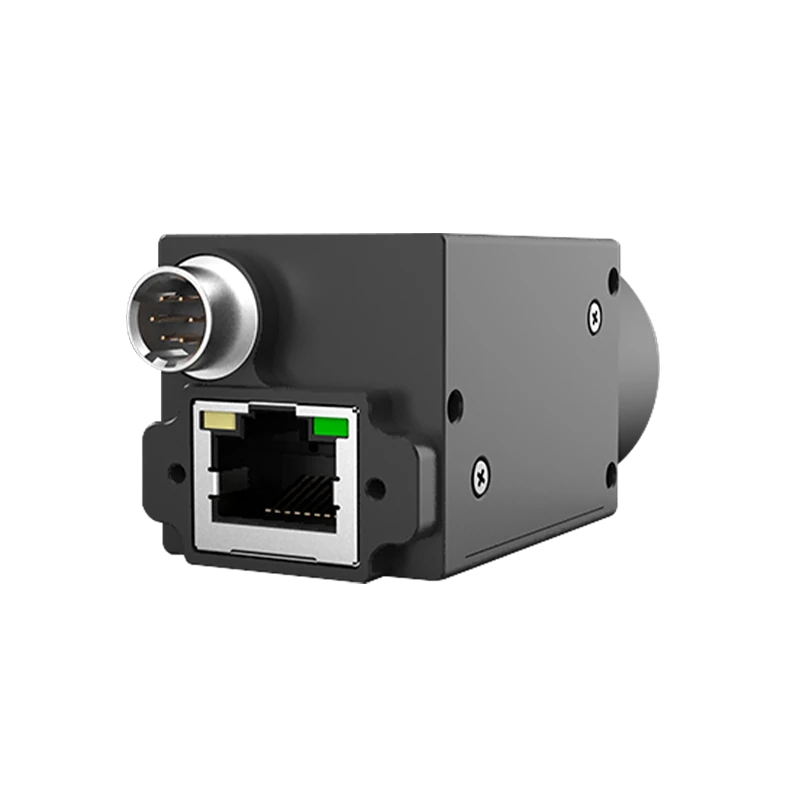

GigE area scan camera, LS-CMR-S29 series with CMOS sensor, 1.9 MP, GigE, Color/Mono (LS-CMR-0397)

Model LS-CMR-0397

Resolution1600×1200
SensorCMOS
InterfaceGigE (RJ45 Gigabit Ethernet)
Speed60
Lens mountC-mount
Pixel size4.5μm

$209.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0397
Acquisition mode	Continuous/soft trigger/hard trigger
User-defined data area	2K Bytes
Vision standard	GigE Vision V1.2, Genlcam
Driver	Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Frame buffer	128M Bytes
Suffix options	Order suffix (connector / PoE / lens mount): -T-CL threaded aviation connector, C-mount (recommended); -T-L threaded, CS-mount (made to order); -TPO-CL PoE, dual extended IO, threaded, C-mount (made to order); -T1-C push-fit aviation connector, C-mount (recommended); -T1P-C PoE, push-fit, C-mount (made to order); -T, -TPO, -TPO-C (being discontinued).
Sensitivity	7.4V/lux-s 3200K
Synchronization	Continuous / software trigger / hardware trigger
Filter	Standard 650nm Infrared Cut-off Filter/Standard double-sided AR-enhanced film
Camera custom data	2K Bytes
Visual Standard Protoco	GigE Vision V1.2, GenICam
Support System	WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Drivers	DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Pregramming Language	C / C++ / C# / VB6 / VB.NET / Delphi / BCB / Python
Programmable Control	Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color.trigger mode, frame rate control

Sensor and imaging

E ﬀ ective pixels	2MP
Sensor	CMOS
Shutter	Global
Max resolution	1600×1200
Pixel size	4.5μm
Frame rate (FPS)	60
Mini exposure	0.015ms
Sensor model	EV76C570
Sensor	1/1.8" CMOS, EV76C570
Pixel size	4.5X4.5μm
Effective pixels	2MP
Resolution @ frame rate	1600X1200@60FPS
Pixel bit depth	10bit
Maximum gain	8
Exposure time (ms)	0.016~91
Sensor type	CMOS
Shutter method	Global
Min exposure	0.015ms
Pixel size	4.5μm x 4.5μm
Maximum gain (multiple)	8
Exposure time range (ms)	0.015~95.7

Interfaces and I/O

Interface	GigE (RJ45 Gigabit Ethernet)
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
GPIO	1 optical isolation input, 1 optical isolation output; optional 3 inputs and 4 outputs
I/O port	1 optical input, 1 optical output; 3 input 4 output
Video output format	Bayer8/Bayer12,Mono8/Mono12

Light

Color	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Working temperature @ humidity	0~50°C @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60°C @ 20%~95% (no condensation)
Working temperature	0 ~ 5 0 ° C
Working humidity	20-80% (Non-condensing)
Storage temperature	-30-60 ° C
Storage humidity	20-95% (Non-condensing)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

Electrical

Power supply	12~24V/POE, 48~57V (POE is optional)
Power	<2.5W
Power Requirements	9~24V(POE is optional)
Power consumption	< 2.5 W
Voltage	12~24V/POE, 48~57V (POE is optional)

Mechanical

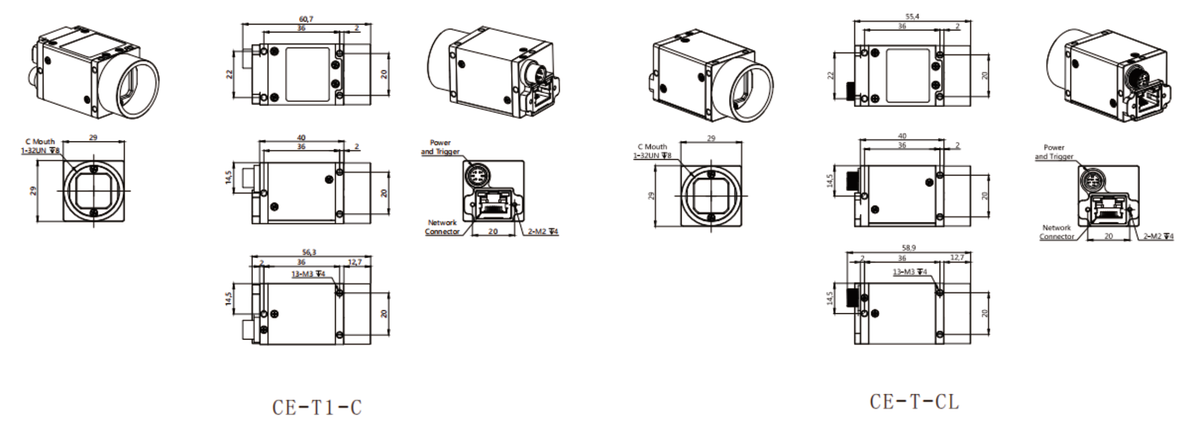

Dimensions	29 x 29 x 40 mm (without lens mount and rear shell interface)
Target size	1/1.8"
Lens mount	C-mount is default, optional C or CS interface ( can provide M12 lens transfer interface accessories)
Weight	< 75 g
Net weight	<75g

Downloads

Datasheet (PDF)LS-CMR-0397 · 1.5 MB

Features

Unique packet retransmission technology to ensure reliable data transmission
Built-in hardware accelerates image processing and reduces CPU utilization on the host side
Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
Pixels from 0.3MP to 65MP, CCD and CMOS are optional
Excellent SDK design, as simple as using a USB camera, plug and play
Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
SDK plug and play.
Supporting 12bit raw data output.
Multiple cameras work at the same time.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronic semiconductors
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement
