GigE area scan camera, F series with large format size

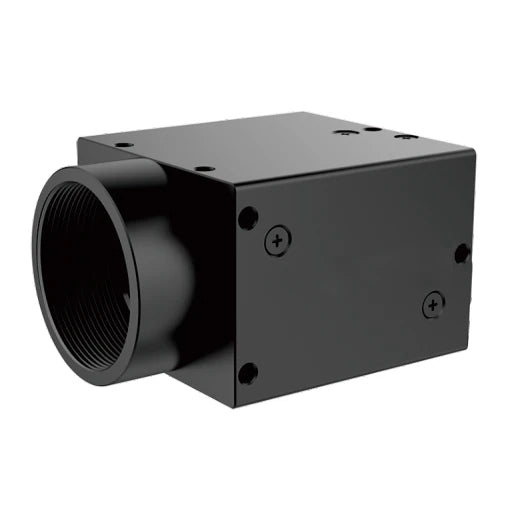

Representative photo of this series

Area scan cameras

GigE area scan camera, LS-CMR-S27 series with large format size, 12 MP, GigE, Color/Mono (LS-CMR-0375)

Model LS-CMR-0375

Resolution4090 x 3000
SensorCMOS
InterfaceGigE (RJ45 Gigabit Ethernet)
Speed9.5
Lens mountC-mount
Pixel size3.45μm

$1,469.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0375
Acquisition mode	Continuous/soft trigger/hard trigger
User-defined data area	2K Bytes
Vision standard	GigE Vision V1.2, Genlcam
Driver	Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Frame buffer	128M Bytes
Suffix options	Order suffix (connector / PoE / lens mount): -T-CL threaded aviation connector, C-mount (recommended); -T-L threaded, CS-mount (made to order); -TPO-CL PoE, dual extended IO, threaded, C-mount (made to order); -T1-C push-fit aviation connector, C-mount (recommended); -T1P-C PoE, push-fit, C-mount (made to order); -T, -TPO, -TPO-C (being discontinued).
Sensitivity	Color: 1146mV; Mono: 915mV

Sensor and imaging

Effective pixels	12MP
Sensor type	CMOS
Shutter method	Global
Max resolution	4090 x 3000
Pixel size	3.45μm
Frame rate (FPS)	9.5
Min exposure	0.034ms
Sensor model	IMX304
Resolution @ frame rate	4090 x 3000@9.5FPS
Pixel size	3.45μm x 3.45μm
Pixel bit depth	12bit
Maximum gain (multiple)	250
Exposure time range (ms)	0.034~71303.1

Interfaces and I/O

Interface	GigE (RJ45 Gigabit Ethernet)
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
GPIO	1 optical isolation input, 1 optical isolation output; optional 3 inputs and 4 outputs
Video output format	Color: Bayer GB 8/12bit; Mono: Mono 8/12bit

Light

Color	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Working temperature @ humidity	0~50°C @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60°C @ 20%~95% (no condensation)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

Electrical

Power supply	12~24V/POE, 48~57 (POE is optional)
Power	<2.5W
Voltage	12~24V/POE, 48~57 (POE is optional)

Mechanical

Lens mount	C-Mount (CS port optional)
Dimensions	29 x 29 x 40 mm (without lens mount and rear shell interface)
Weight	<75g
Target size	1.1"

Downloads

Datasheet (PDF)LS-CMR-0375 · 799 KB

Features

Unique packet retransmission technology to ensure reliable data transmission
Built-in hardware accelerates image processing and reduces CPU utilization on the host side
Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
Pixels from 0.3MP to 65MP, CCD and CMOS are optional
Excellent SDK design, as simple as using a USB camera, plug and play
Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
SDK plug and play.
Supporting 12bit raw data output.
Multiple cameras work at the same time.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronic semiconductors
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement
