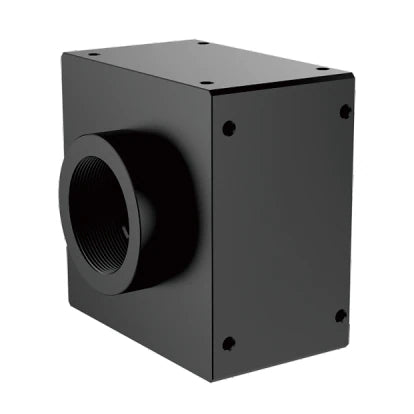

Representative photo of this series

Area scan cameras

GigE area scan camera, LS-CMR-S23 series, 13 MP, GigE, Color/Mono (LS-CMR-0356)

Model LS-CMR-0356

Resolution4112 x 3088
SensorCMOS
InterfaceGigE (RJ45 Gigabit Ethernet)
Speed9.25
Lens mountC-mount
Pixel size3.5μm

$1,109.00

Ships in 2-3 weeks

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0356
Acquisition mode	Continuous/soft trigger/hard trigger
User-defined data area	2K Bytes
Vision standard	GigE Vision V1.2, Genlcam
Driver	Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Frame buffer	256M Bytes
Suffix options	Order suffix (connector / PoE / lens mount): -T-CL threaded aviation connector, C-mount (recommended); -T-L threaded, CS-mount (made to order); -TPO-CL PoE, dual extended IO, threaded, C-mount (made to order); -T1-C push-fit aviation connector, C-mount (recommended); -T1P-C PoE, push-fit, C-mount (made to order); -T, -TPO, -TPO-C (being discontinued).
Sensitivity	3.9V/lux·s

Sensor and imaging

Effective pixels	12MP
Sensor type	CMOS
Shutter method	Global
Max resolution	4112 x 3088
Pixel size	3.5μm
Frame rate (FPS)	9.25
Min exposure	0.0327ms
Sensor model	OEM
Resolution @ frame rate	4112 x 3088@9.25FPS
Pixel size	3.5μm x 3.5μm
Pixel bit depth	12bit
Maximum gain (multiple)	16
Exposure time range (ms)	0.0327~548614.9

Interfaces and I/O

Interface	GigE (RJ45 Gigabit Ethernet)
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
Video output format	Color: Bayer GR 8/12bit; Mono: Mono 8/12bit
GPIO	1-channel trigger input, 1-channel flash output; 1-channel GPI input, 1-way GPI output, 1-way non-isolated bidirectional IO

Light

Color	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Working temperature @ humidity	0~50°C @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60°C @ 20%~95% (no condensation)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system

Electrical

Power supply	12V
Power	<12W
Voltage	12V

Mechanical

Lens mount	C-Mount

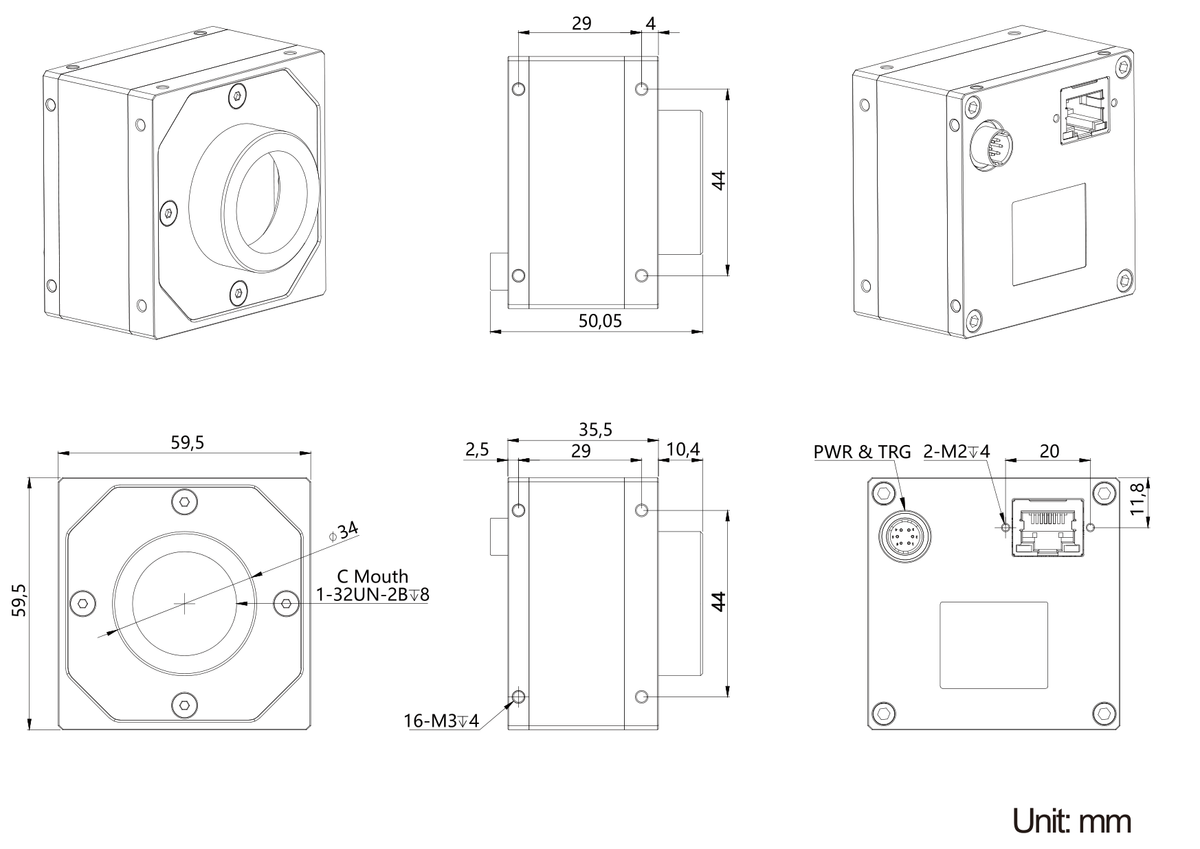

Dimensions	59.5 x 59.5 x 35.5 mm (without lens mount and rear shell interface)
Weight	<250g
Target size	1.1"

Downloads

Datasheet (PDF)LS-CMR-0356 · 680 KB

Features

Unique packet retransmission technology to ensure reliable data transmission
Built-in hardware accelerates image processing and reduces CPU utilization on the host side
Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
Pixels from 0.3MP to 65MP, CCD and CMOS are optional
Excellent SDK design, as simple as using a USB camera, plug and play
Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)

Applications

Electronic semiconductors
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
