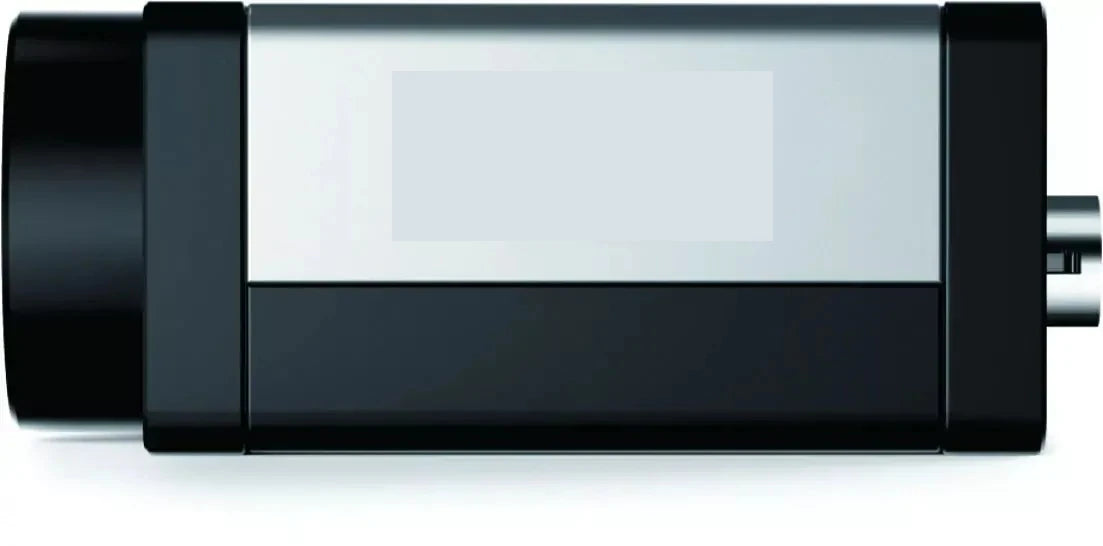

Representative photo of this series
Area scan cameras
High-resolution area scan camera, 65 MP, Camera Link, Mono (LS-CMR-0272)
Model LS-CMR-0272
- Resolution9344 x 7000
- Sensor29.9 x 22.4
- InterfaceCameraLink
- Speed1
- Lens mountM58
- Mono / colourMono
$8,219.00
Ships in 2-3 weeks
0.73 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High resolution, global exposure cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0272 |
|---|---|
| Image format | Mono: Mono8/10/10Packed, Color: Mono8, BayerRGB/10/10Packed, BayerGB8/10/10Packed, RGB8Packed, YUV422Packed |
| ROI | Support |
| Gamma | range 0-4,support LUT |
| Flat field correction | support |
| Sync mode | Software trigger/hardware trigger/free run |
Sensor and imaging
| Resolution | 9344 x 7000 |
|---|---|
| Frame rate (FPS) | 1 |
| Sensor | GMAX3265 |
| Sensor size (mm^2) | 29.9 x 22.4 |
| Sensor type | CMOS |
| Shutter type | Global |
| Bit depth | 10 |
| Mono/color | Mono |
| Pixel (μm) | 3.2x 3.2 |
| Sensor size | 37.3mm |
| Resolution (MP) | 65MP |
| SNR | 40dB |
| Dynamic range | 66dB |
| Binning | Support |
| Decimation | Non-support |
| Gain | X1~X32 |
| Shutter exposure | 16μS~1S |
| Defective pixel correction | support |
| Pixel size (μm) | 3.2 |
Interfaces and I/O
| Data interface | CameraLink |
|---|---|
| Interface | GigE |
| GPIO interface | 12 core Hirose interface, external power supply,, Opto-isolated input x 3, opto-isolated output x 3 |
| I/O connector pinout (pin, signal, description) | 1 GND Ground for camera power; 2 Power Power for camera; 3 RXD RS232 Serial port receive; 4 TXD RS232 Send by serial port; 5 Line 1 Opto-coupled IO input line 1; 6 Line 2 Opto-coupled IO input line 2; 7 Line 3 Opto-coupled IO input line 3; 8 OPT_IN_GND Ground for Opto-coupled input, don't connect power; 9 Line 1 Opto-coupled IO output line 1; 10 Line 2 Opto-coupled IO output line 2; 11 Line 3 Opto-coupled IO output line 3; 12 OPT_OUT_GND Ground for Opto-coupled output, don't connect power |
Environment and compliance
| Temperature | Storage temperature: -30℃~+80℃; Working temperature: -30℃~+50℃ |
|---|
Computing
| Image storage | support 256MB |
|---|---|
| Storage | Storage parameters x 2 |
Electrical
| Power supply | DC12V-24V |
|---|---|
| Power consumption | 12V≈9W |
Mechanical
| Lens mount | M58(FBL 12) |
|---|---|

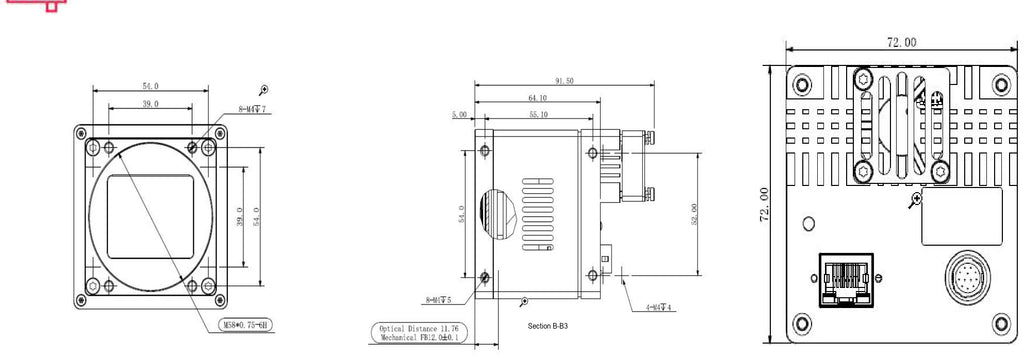

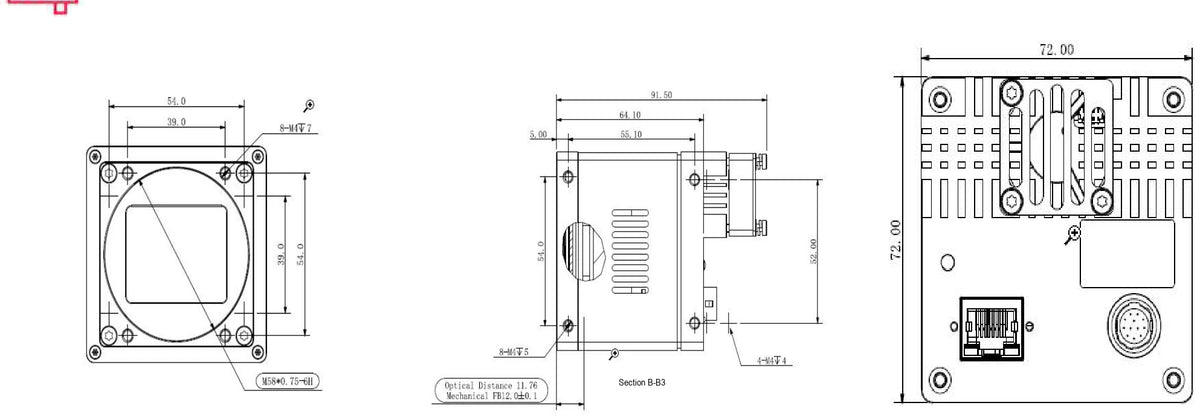

| Dimension | 72mm*72mm*64mm(Don't includedrear housing interface) |
| Weight | 450g |
