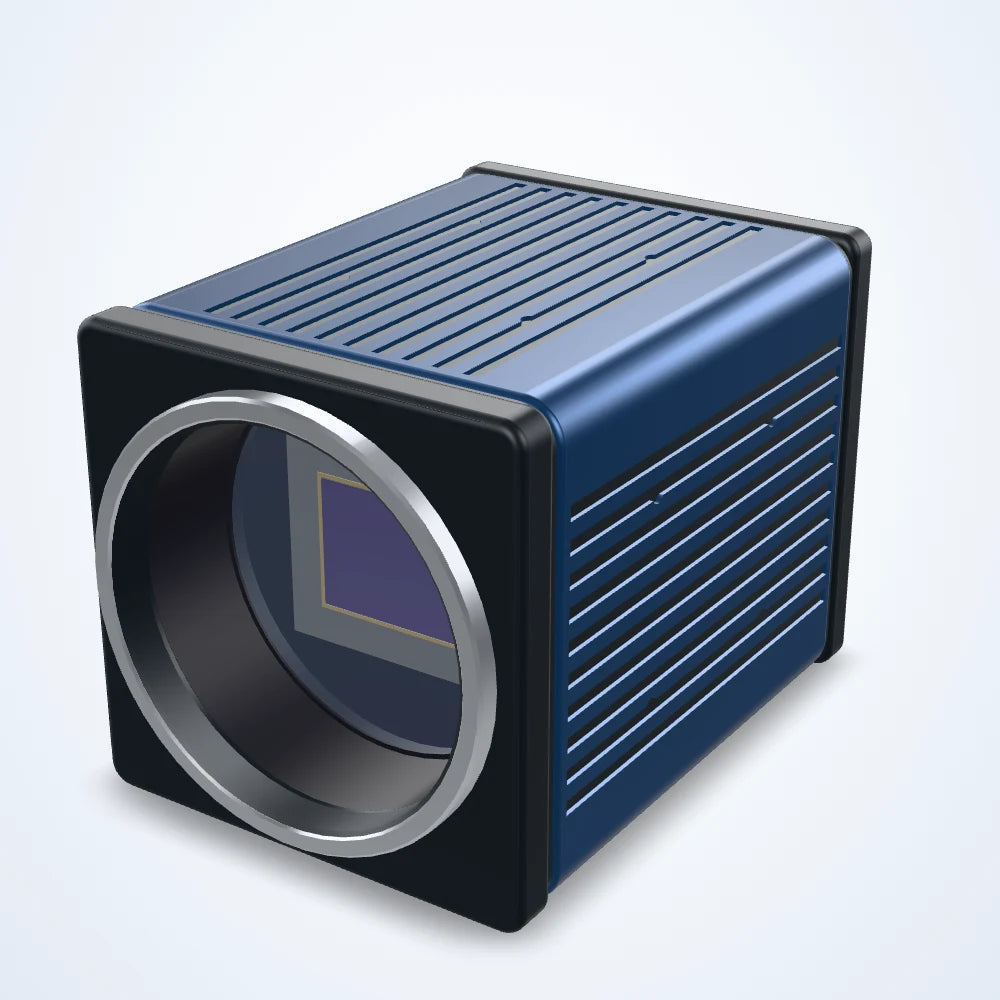

Area scan camera (series view)

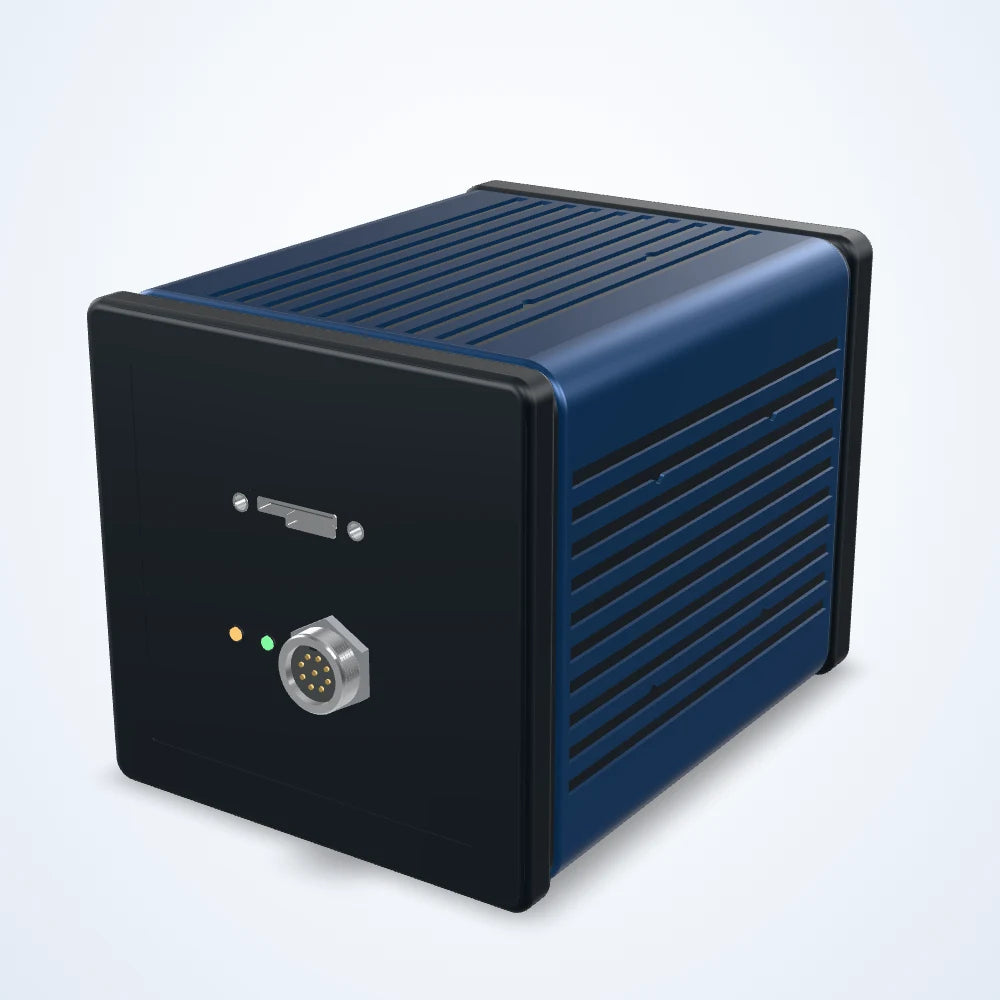

  • Area scan camera (series view)
  • Area scan camera (series view)
  • 16.8 MP UV Camera Link area scan camera, Gsense4040, 3.2" rolling shutter, 23 fps, M54, 4096×4096 CameraLink 200-1000 nm

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

16.8 MP UV Camera Link area scan camera, Gsense4040, 3.2" rolling shutter, 23 fps, M54, 4096×4096 CameraLink 200-1000 nm (LS-CMR-0184)

Model LS-CMR-0184

  • Resolution4096×4096
  • Sensor3.2"
  • InterfaceUSB3.0/ CameraLink
  • Speed20/23 fps
  • Lens mountM54
  • Pixel size9 μm
$34,500.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

3.0 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

16.8 MP UV Camera Link area scan camera, Gsense4040, 3.2" rolling shutter, 23 fps, M54, 4096×4096 CameraLink 200-1000 nm (LS-CMR-0184)LS-CMR-0184

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16.8 MP area scan camera for inspection, measurement and guidance on the production line. Gsense4040 sensor (3.2"); 4096 x 4096 pixels of 9 μm; up to 23 frames per second; rolling shutter; Camera Link interface; M54 lens mount; spectral range 300-1000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0184
Spectral range300-1000 nm
Quantum efficiency74%@600

Sensor and imaging

Sensor modelGSENSE4040
Resolution4096×4096
Max. frame rate20/23 fps
Sensor size3.2"
Pixel size9 μm
Dynamic range82.5
Exposure time12 us~1h
ShutterRolling
Sensor makeGPixel
Sensor typeCMOS
Pixel bit depth8/12/16 bit

Interfaces and I/O

Data interfaceUSB3.0/ CameraLink

Light

Color TypeUV

Environment and compliance

Operating temperature-30- 45°C(Operating), -40 - 60°C(Storage)

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyDC19 V

Mechanical

Lens mountM54 mount
Dimensions100 mm×100 mm×127.7 mm(not including lens mount and rear case connector)
Weight1317g
