Area scan cameras

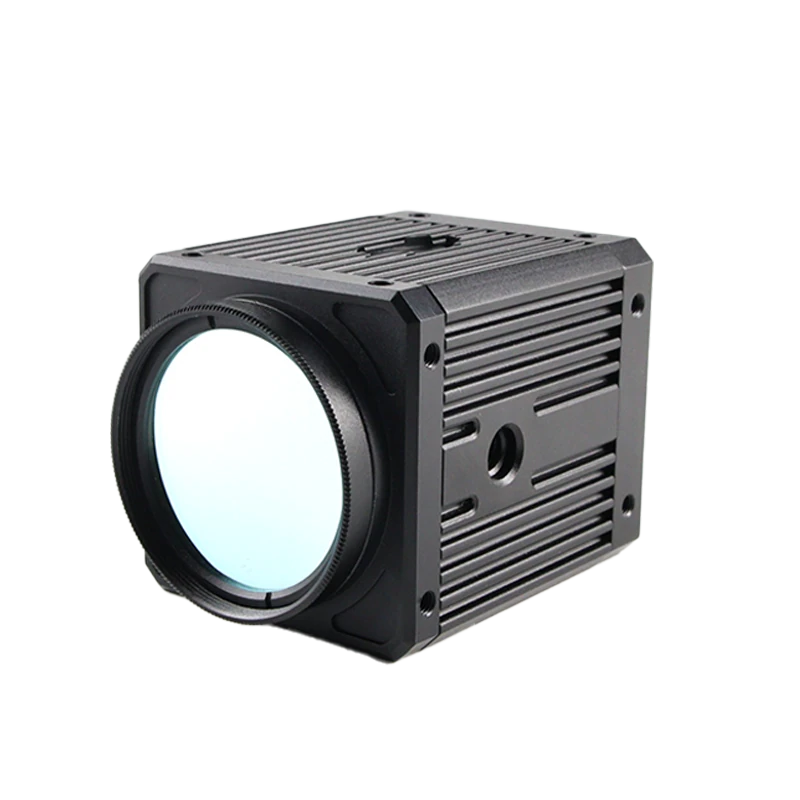

Weld monitoring camera, 1.3 MP, USB3, Mono/Color (LS-CMR-0002)
Model LS-CMR-0002
- Resolution1280x1024
- Sensor1/2.7CMOS imager
- InterfaceUSB3.0/U3Vison/GenlCam
- Speed206fps
- Lens mountC-mount
- Pixel size5.6 * 5.6 μm
$359.00
Ships in 2-3 weeks
0.27 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Weld monitoring camera is an advanced tool specifically designed for monitoring and controlling the welding process.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0002 |
|---|---|
| Operation System Software | Win7/Win10/Android |
| Lens | F=25mm(Builded-in) F=42mm(Interchangeable) |
| Product name | Weld Monitoring Camera |
| Feature | Pictures or videos can be stored |
| Operation System Software | USB |
| Configuration | Bare metal + accessories + software |
Optics
| Working distance | 160-250mm(F25mm len) 200-450mm(F25mm len) |
|---|
Sensor and imaging
| Sensor type | 1/2.7CMOS imager |
|---|---|
| Effective pixels | 1.3MP |
| Max resolution | 1280x1024 |
| Frame rate | 206fps |
| Shutter | Global |
| Sensor | 1/2.7", CMOS |
| Pixel size | 5.6 * 5.6 μm |
Interfaces and I/O
| Protocol | USB3.0/U3Vison/GenlCam |
|---|---|
| Interface | USB3.0/U3Vison/GenlCam |
Light
| Color | Mono/Color |
|---|---|
| Mono / colour | Mono/Color |
Environment and compliance
| Working temperature | -40°C—85°℃ |
|---|
Mechanical
| Dimension | 45x45x62mm |
|---|---|
| Lens mount | C-Mount |
| Net weight | 120g |
Other models in the Weld monitoring camera (LS-CMR-S01) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0001 | 1.3 MP, Mono/Color | $299.00 | Ships in 2-3 weeks | View |
