Telecentric collimated light, Ø150 mm (LS-CLM-0065)

Model LS-CLM-0065

ColourWhite, Red, Green, Blue
Voltage5 V
Power3 W
TypeTelecentric

$1,589.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color White Red Green Blue

Volume pricing, Net 30 terms or a formal quote for purchasing?

Telecentric parallel light source with high uniform parallel light output and low distortion imaging, for industrial and scientific fields with high requirements on imaging quality and measurement accuracy.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CLM-0065
Category	Telecentric Collimated Light
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Flammability Rating	IEC60707
Value-added Services	One year free technical support

Interfaces and I/O

Interface (default)	3PIN2 power interface
Cable length	0.5m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

LED type	SMD
Color	Red/Blue/White/Green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Lamp Luminous Efficiency(lm/w)	110
Color Rendering Index(Ra)	85
Color Temperature(CCT)	6000K (Daylight Alert)
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power (W)	3
Voltage (V)	5

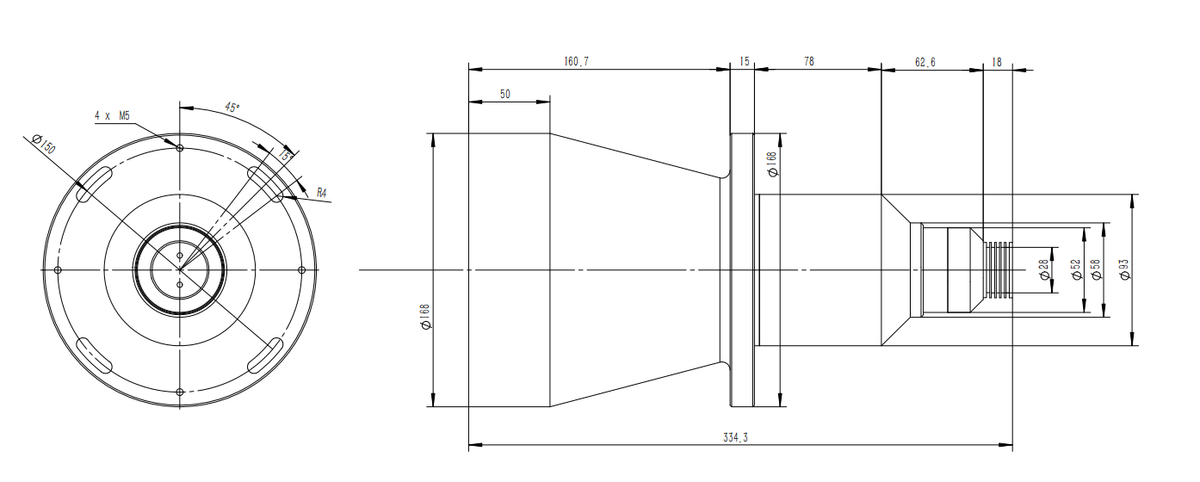

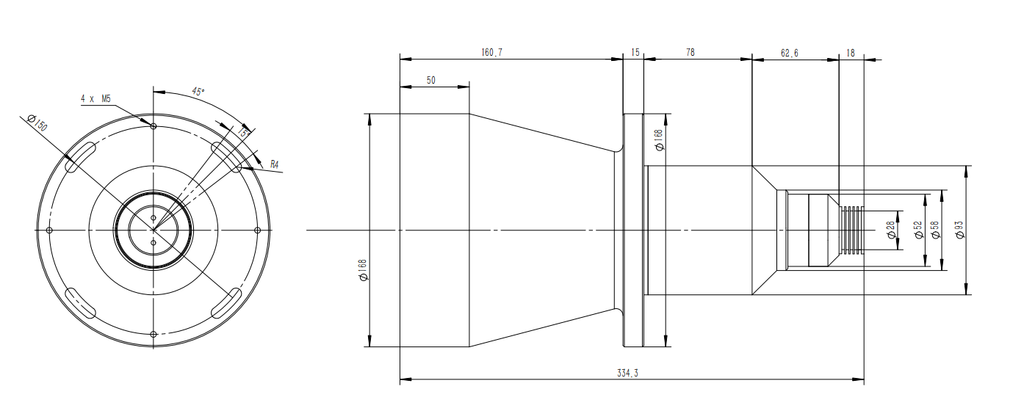

Mechanical

Outside diameter (mm)	dia. 150
Shell material	Aluminum alloy
Outside Diameter	150MM
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-CLM-0065 · 481 KB

Features

High uniform parallel light output
Low distortion imaging
Compact structure design
Anti reflection interference
Customization: three colour RGB light, dimensions (length/width/height), power cable length and interface, control mode (manual / remote / equipment linkage), installation (screw fixation / buckle installation)
Outside diameter: dia. 150mm.
Product shell made of aviation aluminum alloy material.
Default 3PIN2 power interface, optional round head and 2PIN2 interface.
Suitable for high-precision measurement and defect detection scenarios,etc.

Applications

Industrial and scientific fields with high requirements on imaging quality and measurement accuracy
Use as telecentric back light opposite a telecentric lens
