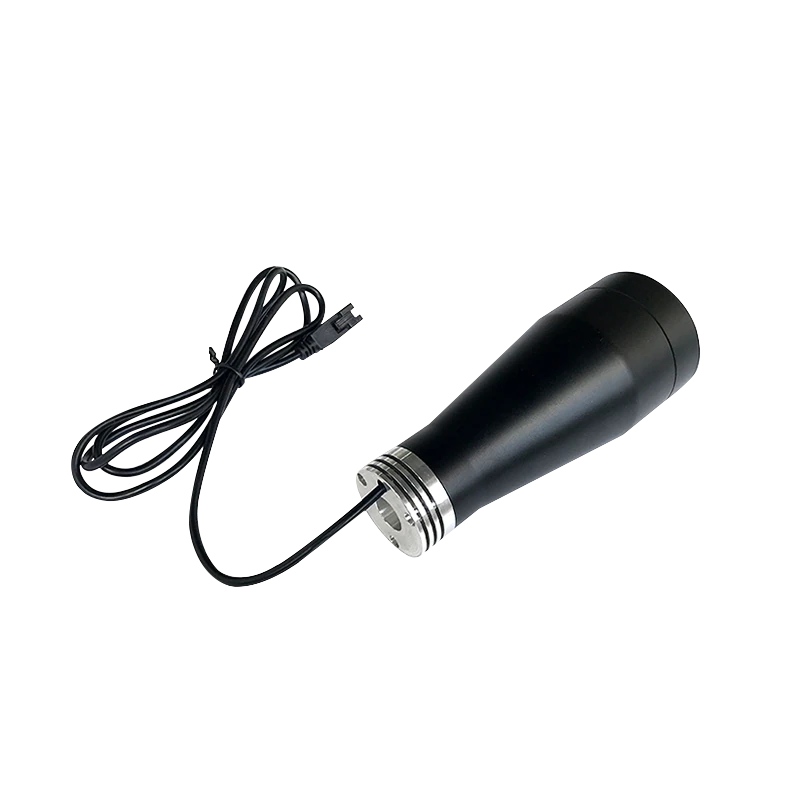

Collimation light (LS-CLM-0059)
Model LS-CLM-0059
- ColourRed, Green, Blue, White
- Sizedia. 61mmxdia. 38.5mmH148mm
- Voltage1
- Connector3-pin flat
$699.00
Ships in 2-3 weeks
0.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Lens-type collimation light producing a 50 mm parallel light beam, for profile measurement, subtle defects on smooth surfaces and high precision dimension measurement.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0059 |
|---|---|
| Category | Collimation light |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
Interfaces and I/O
| Cable length | 1.2m |
|---|---|
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
| Serial number | 1 |
Light
| Light beam | 50 mm |
|---|---|
| Light beam outer diameter | 50mm |
| Color | Red/Blue/White/Green |
| LED type | SMD |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Voltage(V) Red | 1 |
|---|---|
| Voltage(V) Blue/White/Green | 1.2 |
| Power(W) Red | 2.7 |
| Power(W) Blue/White/Green | 5 |
| Input Volt | DC5Vmax. |
| Red version (current/power) | 1A/2.7W |
| White/green/blue version (current/power) | 1.2A/5W |
Mechanical

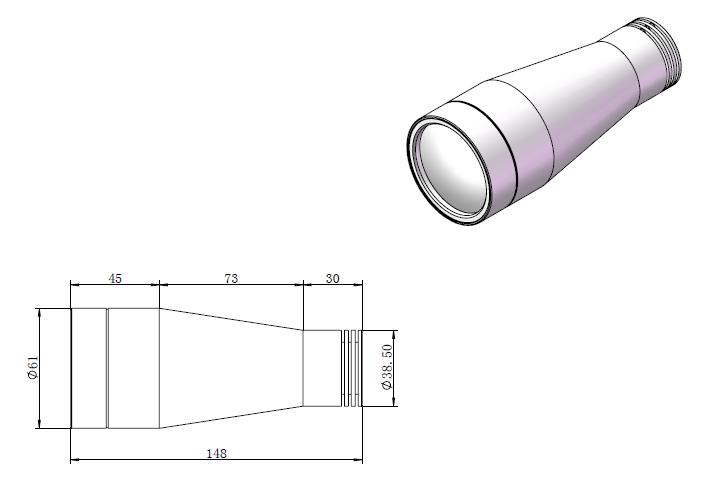

| Housing dimensions | dia. 61 mm x 148 mm long, outlet dia. 38.5 mm |
|---|---|
| Boundary dimension(mm) External diameter | 61 |
| Boundary dimension(mm) Inner diameter | 38 |
| Boundary dimension(mm) Height | 148 |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Dimensions | dia. 61mmxdia. 38.5mmH148mm |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Shipping weight | 0.45 kg |
