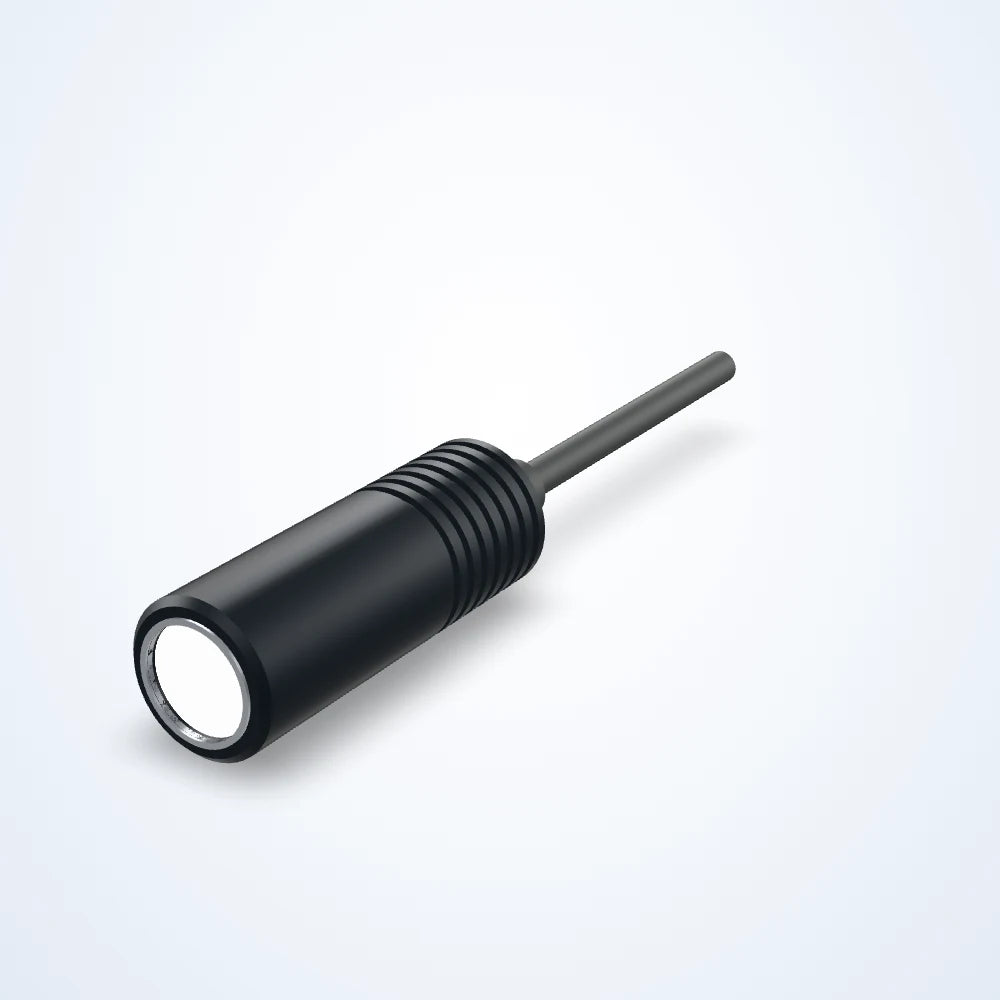

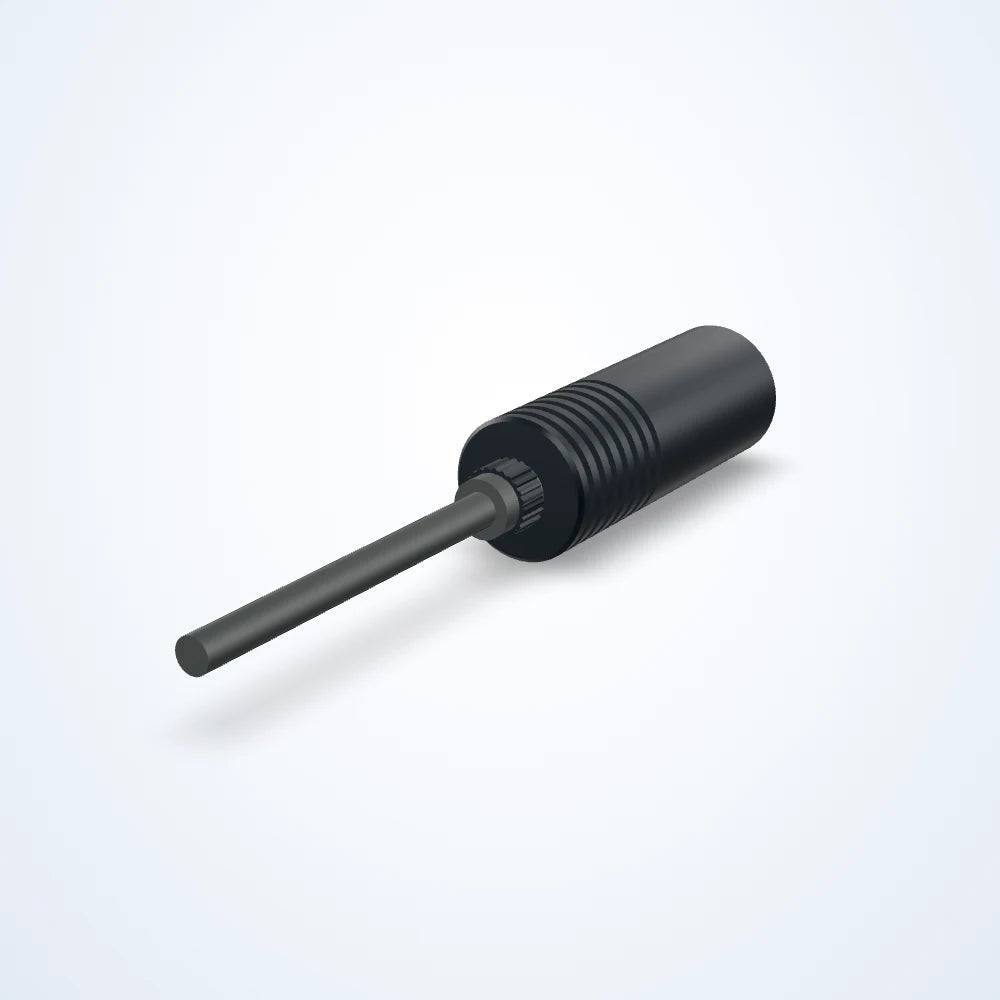

Rendered illustration: the actual product may differ in appearance.
Collimated lights
Ø37 mm collimated light (LS-CLM-0039)
Model LS-CLM-0039
- Power5 W
- Outer diameter37 mm
- EFL79.300 mm
- Max Current208 mA
$585.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Collimated light for telecentric gauging. Size Ø37 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0039 |
|---|---|
| EFL | 79.300 mm |
| Effective Illum. Dia. | 37 mm |
| Recommend WD | 56 mm |
| WD Variation Range | ±40 mm |
| Recommended Collimation | 1.73 ° |
| Recommended Parallelism | 3.480 ° |
Electrical
| Power | 5 W |
|---|---|
| Max Current | 208 mA |
Mechanical
| Outer diameter (mm) | 37 |
|---|---|
| Shipping weight | 2.00 kg |
LS-CLM-0039
See this component from every angle.
Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.
Concept illustration
FROM THE PRINTED SPECIFICATIONS
- Outer diameter (mm)
- 37
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Collimated lights (LS-CLM-S03) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CLM-0038 | Ø20 mm | $351.00 | Ships in 3-4 weeks | View |
| LS-CLM-0041 | Ø50 mm | $585.00 | Ships in 3-4 weeks | View |
| LS-CLM-0043 | Ø60 mm | $760.00 | Ships in 3-4 weeks | View |
| LS-CLM-0045 | Ø70 mm | $819.00 | Ships in 3-4 weeks | View |
| LS-CLM-0047 | Ø80 mm | $869.00 | Ships in 3-4 weeks | View |
