Cables

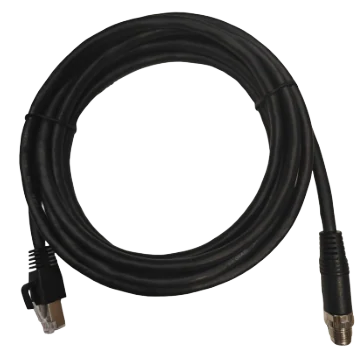

Camera Data Cable, M12 8-pin connector, Male to RJ45, 10 m, drag-chain use (LS-CBL-0064)
Model LS-CBL-0064
- Length10 m
- End AM12 8-pin connector, Male
- End BRJ45
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, M12 8-pin connector, Male to RJ45, 10 m. M12 8-pin X-coded high-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0064 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 8-pin connector, Male |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Cable mechanical | 26#*4P+AB |
| Cable color | Black |
| Connector durability | > 750 mating cycles |
| Applicable scenario | Static/drag-chain |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 10 m |
|---|---|
| Min. bending radius | 78 mm |
| Shipping weight (estimated) | 0.31 kg |
Other models in the Camera data cables (LS-CBL-S01) series
See all 186 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CBL-0123 | 7 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0111 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0099 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0105 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0023 | 5 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0020 | 5 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0011 | 5 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0032 | 5 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0002 | 5 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0029 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0147 | 7 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0088 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0076 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0070 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0082 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0094 | 10 m | $49.00 | Ships in 2-3 weeks | View |
| LS-CBL-0138 | 10 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0124 | 10 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0033 | 7 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0003 | 7 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0148 | 10 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0012 | 7 m | $59.00 | Ships in 2-3 weeks | View |
| LS-CBL-0112 | 15 m | $69.00 | Ships in 2-3 weeks | View |
| LS-CBL-0100 | 15 m | $69.00 | Ships in 2-3 weeks | View |
