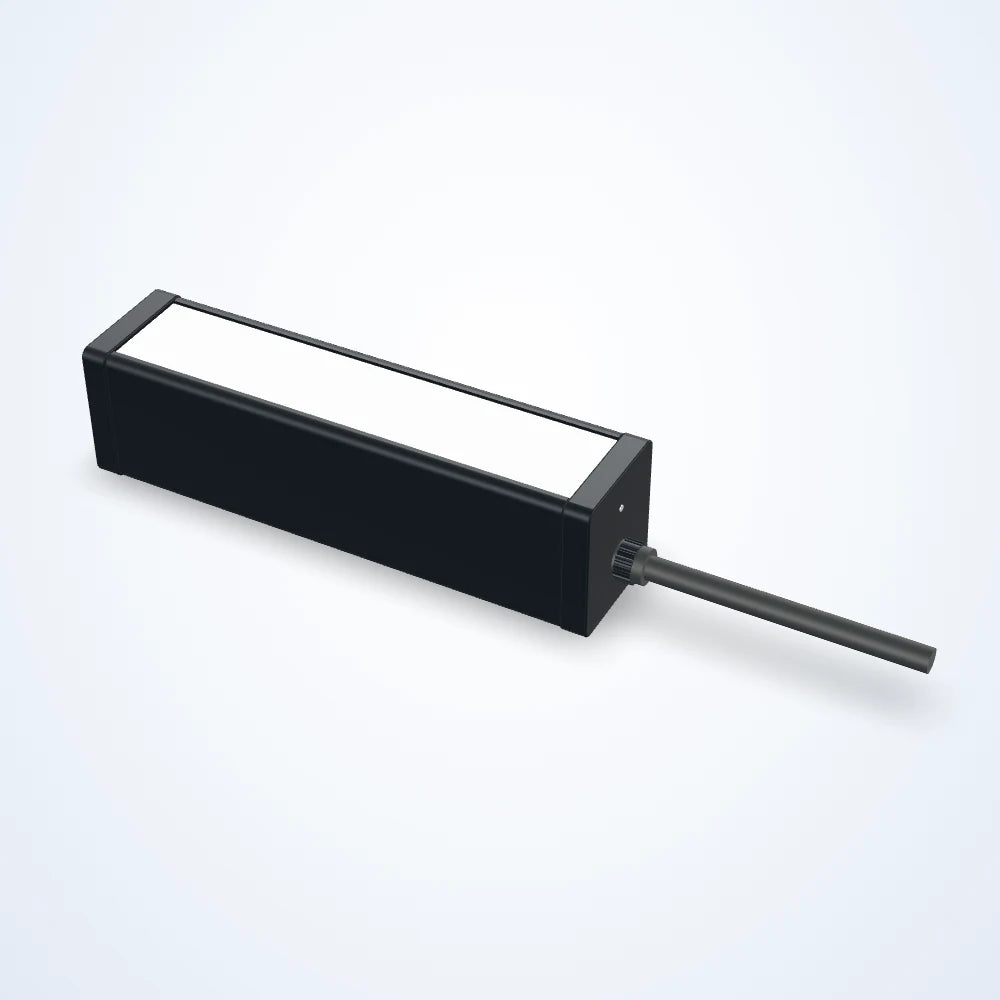

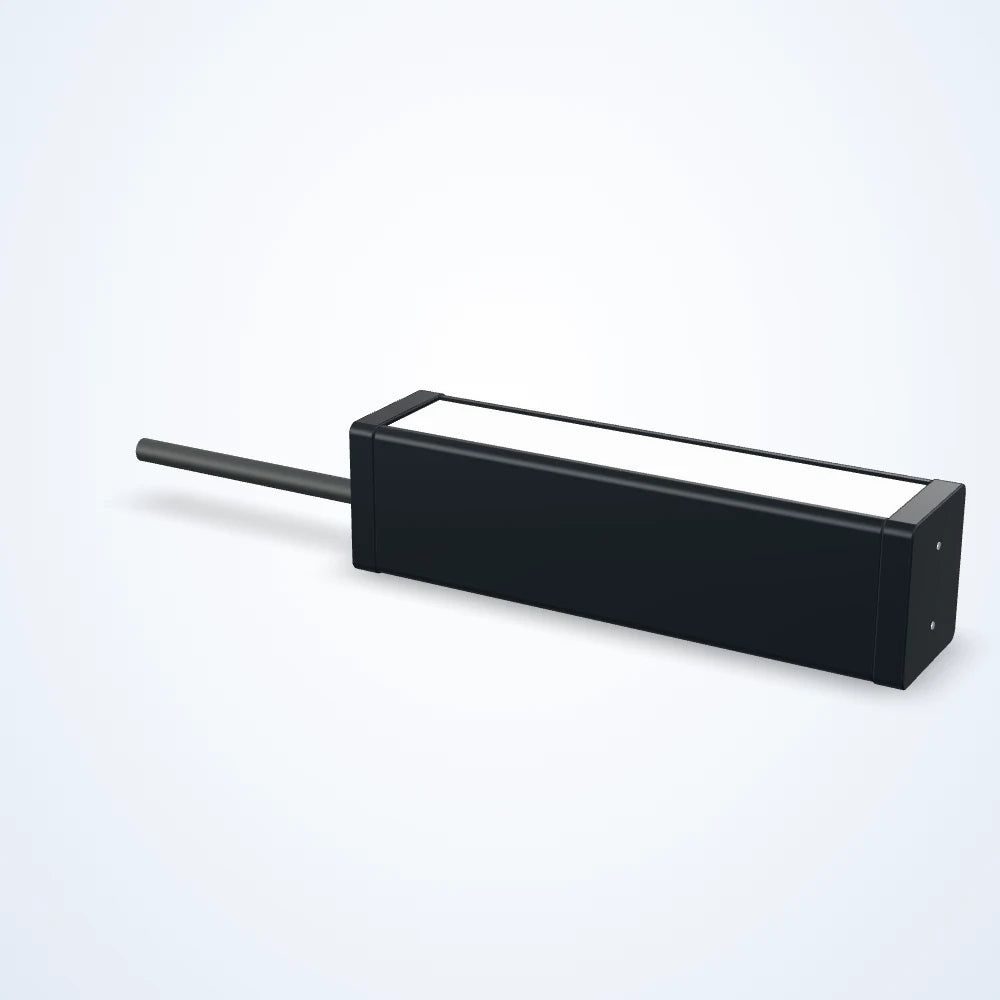

Rendered illustration: the actual product may differ in appearance.

Backlights

137 x 70 mm multi-wavelength light (LS-BKL-1517)

Model LS-BKL-1517

Emitting area137 x 70 mm
Voltage24 V
TypeStandard
ConnectorSMR-03 V-B

$370.00

In stock - ships the same business day (3 available, order by 2 PM ET)

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Multi-wavelength light for silhouettes, edges and gauging. Emitting area 137 x 70 mm; 24 V supply; available in white + UV, RGB + infrared.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1517
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Emitting area (mm)	137 x 70 mm
Wavelength	Red: 620-630 nm; Blue: 465-475 nm; Green: 515-530 nm; White: 6000-10000K(ColorTemperature)

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 V

Mechanical

Housing material	Aluminum alloy, Resin
Shipping weight	1.00 kg
