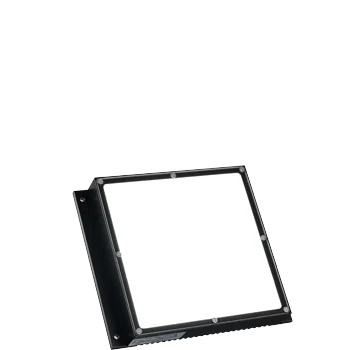

Flat Backlight, 155 x 135 mm, White (LS-BKL-1436)
Model LS-BKL-1436
- ColourWhite
- Emitting area120 mm × 120 mm
- Size155 mm × 135 mm × 21 mm
- Power19.5 W
$309.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight, 155 x 135 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Added parallel film for better light directionality
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1436 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| Emitting area dimension | 120 mm × 120 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 19.5 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |

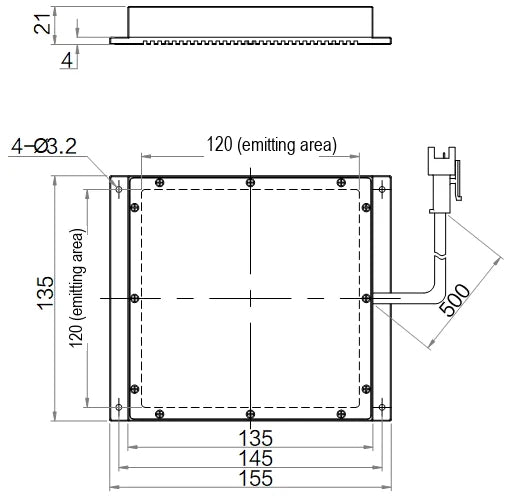

Mechanical
| Dimension | 155 mm × 135 mm × 21 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Flat backlights (LS-BKL-S130) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1430 | 37 x 37 mm, White | $199.00 | 4 in stock | View |
| LS-BKL-1432 | 78 x 64 mm, White | $209.00 | 2 in stock | View |
| LS-BKL-1431 | 78 x 64 mm, Blue | $209.00 | 2 in stock | View |
| LS-BKL-1433 | 135 x 65 mm, Blue | $239.00 | 4 in stock | View |
| LS-BKL-1434 | 135 x 115 mm, White | $279.00 | 4 in stock | View |
| LS-BKL-1435 | 155 x 135 mm, Red | $309.00 | 4 in stock | View |
| LS-BKL-1437 | 180 x 114 mm, White | $319.00 | 4 in stock | View |
| LS-BKL-1438 | 232 x 262 mm, White | $629.00 | 4 in stock | View |
