Backlights

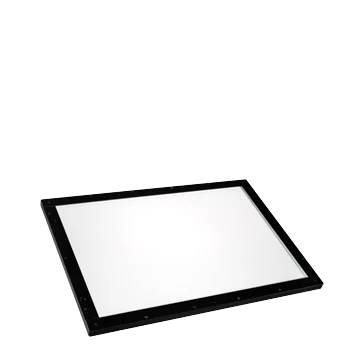

Flat Backlight, 232 x 182 mm, White (LS-BKL-1428)
Model LS-BKL-1428
- ColourWhite
- Emitting area200 mm × 150 mm
- Size232 mm × 182 mm × 12.5 mm
- Power2.9 W
$449.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight, 232 x 182 mm, White. Ultra-thin profile Special light-guide material for good uniformity
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1428 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| Emitting area dimension | 200 mm × 150 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 2.9 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical

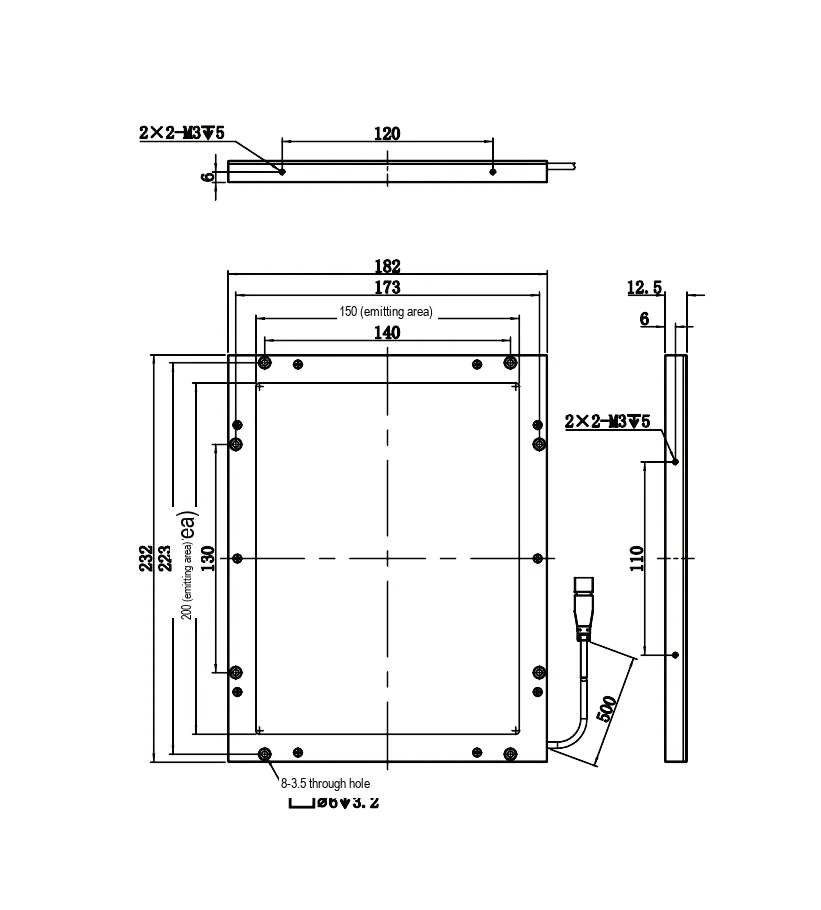

| Dimension | 232 mm × 182 mm × 12.5 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Flat backlights (LS-BKL-S129) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1427 | 132 x 132 mm, White | $279.00 | Ships in 2-3 weeks | View |
| LS-BKL-1429 | 432 x 332 mm, White | $1,169.00 | Ships in 2-3 weeks | View |
