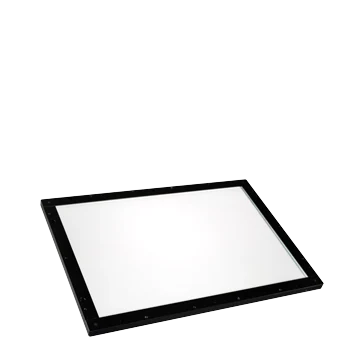

Flat Backlight, 432 x 332 mm, White (LS-BKL-1426)

Model LS-BKL-1426

ColourWhite
Emitting area400 mm × 300 mm
Size432 mm × 332 mm × 14.5 mm
Power10.6 W

$1,169.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Flat Backlight, 432 x 332 mm, White. Ultra-thin profile Special light-guide material for good uniformity

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1426

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000~7000K
Emitting area dimension	400 mm × 300 mm
Diffuse plate included	Included

Environment and compliance

Humidity	20% to 85% RH (non-condensing)
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power	10.6 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

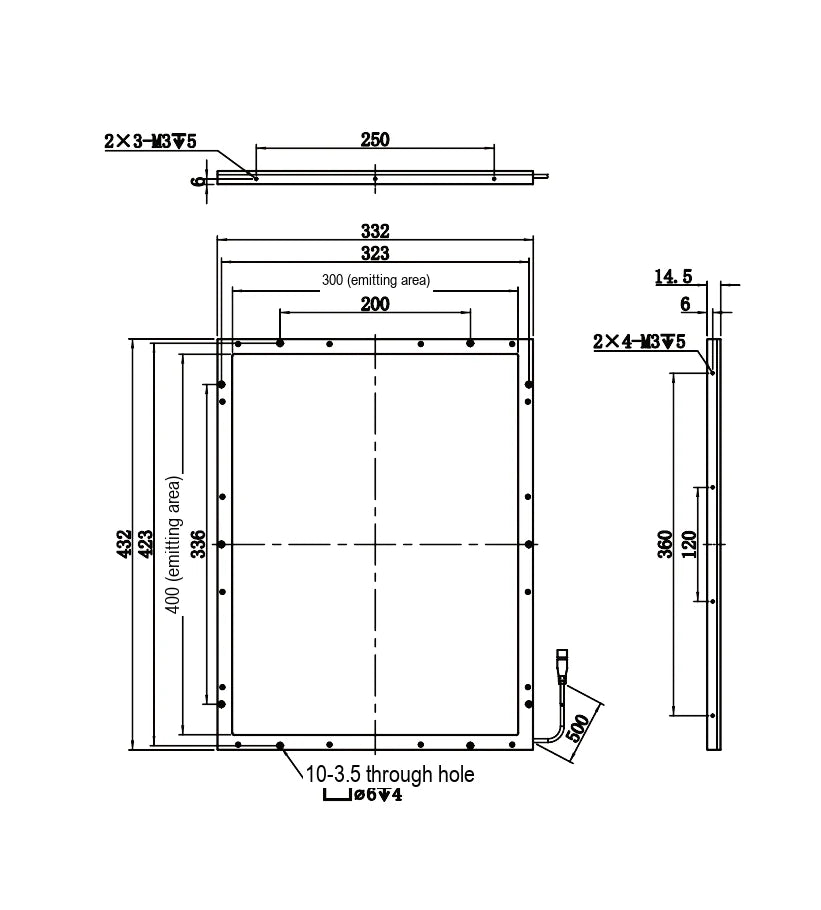

Dimension	432 mm × 332 mm × 14.5 mm
Shipping weight (estimated)	0.66 kg

Other models in the Flat backlights (LS-BKL-S128) series

See all 5 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1422	82 x 82 mm, White	$209.00	Ships in 2-3 weeks	View
LS-BKL-1423	132 x 132 mm, White	$279.00	Ships in 2-3 weeks	View
LS-BKL-1424	232 x 182 mm, White	$449.00	Ships in 2-3 weeks	View
LS-BKL-1425	332 x 232 mm, White	$709.00	Ships in 2-3 weeks	View
