Opening back light source (LS-BKL-S125)
  • Opening back light source (LS-BKL-S125)

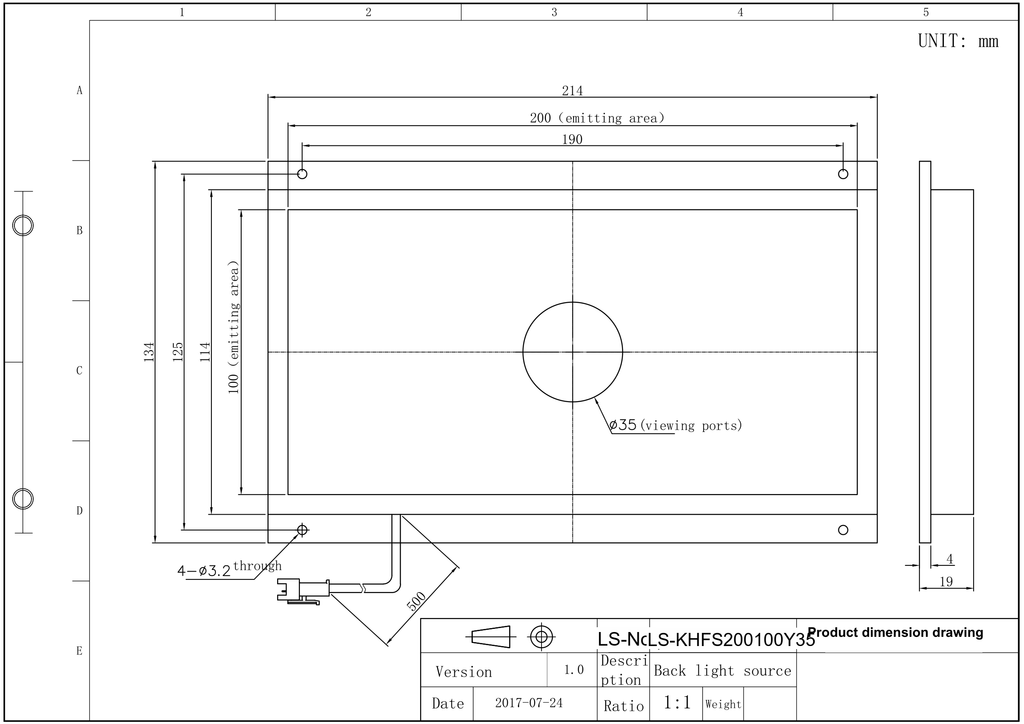

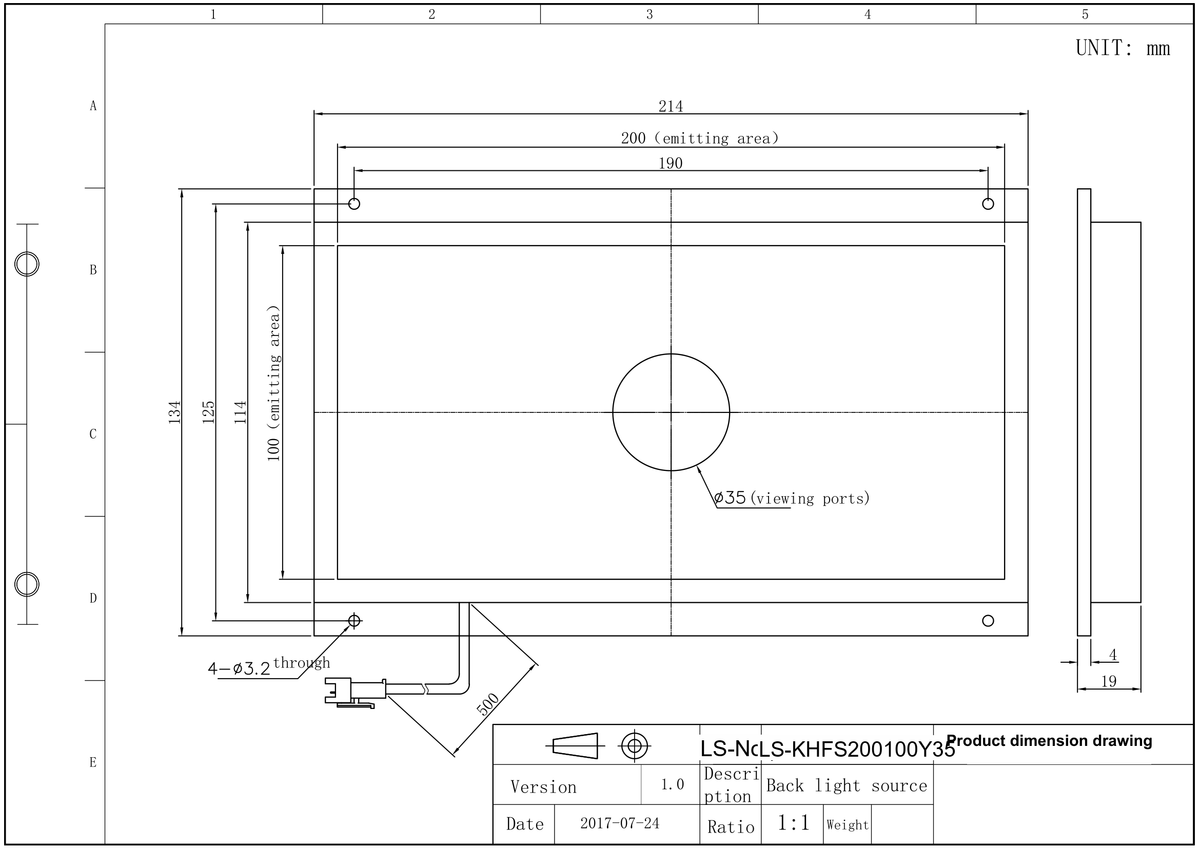

  • LS-BKL-1357 dimensions (mm)

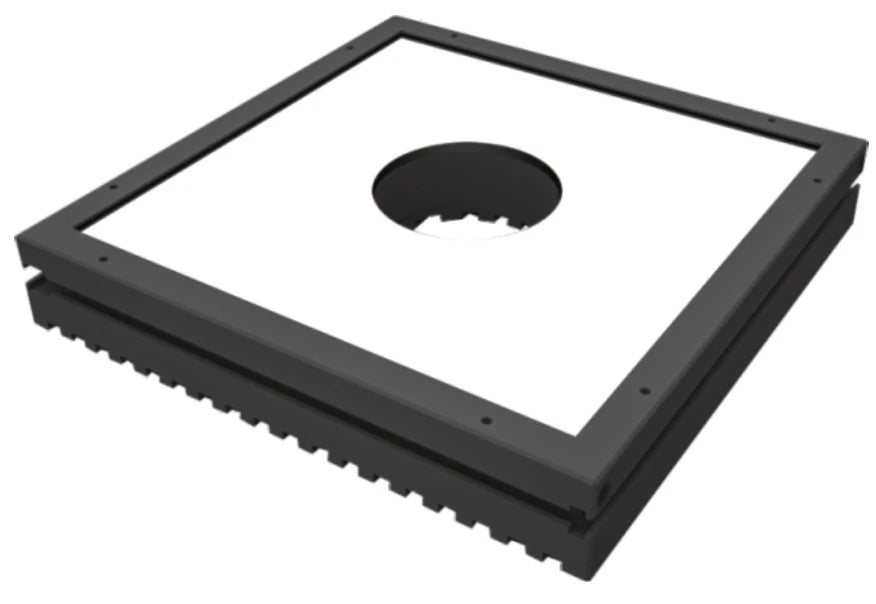

Representative photo of this series

Backlights

200 x 100 mm Opening back light source (LS-BKL-1357)

Model LS-BKL-1357

  • ColourRed, Green, Blue, White
  • TypeStandard
  • Voltage24 V
  • Wavelength red620-630 nm
$369.00

Ships in 2-3 weeks

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 x 100 mm Opening back light source (LS-BKL-1357)LS-BKL-1357

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Backlight with high-density LEDs at the bottom and a round or square hole through the centre so it can also be used as front lighting through the light. Good uniformity, soft natural light and high brightness; sizes and holes can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1357
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)214
Overall W (mm)134
Overall H (mm)19
OpeningRound hole, ID 35 mm (from model code)

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Illuminance chart referenceLS-BKL-S125 series; uniformity LS-BKL-1355 at LWD 100 mm, FOV 200 x 200 mm
Luminous size (mm)200 x 100

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)12
Power G/B/W (W)17
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Shipping weight0.75 kg

Other models in the Opening back light source (LS-BKL-S125) series

See all 14 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1351 78 x 78 mm $239.00 Ships in 2-3 weeks View
LS-BKL-1352 98 x 98 mm $269.00 Ships in 2-3 weeks View
LS-BKL-1353 105 x 85 mm $269.00 Ships in 2-3 weeks View
LS-BKL-1354 120 x 120 mm $309.00 Ships in 2-3 weeks View
LS-BKL-1356 190 x 130 mm $409.00 Ships in 2-3 weeks View
LS-BKL-1349 180 x 150 mm $429.00 Ships in 2-3 weeks View
LS-BKL-1355 165 x 165 mm $429.00 Ships in 2-3 weeks View
LS-BKL-1358 200 x 200 mm $549.00 Ships in 2-3 weeks View
LS-BKL-1359 250 x 200 mm $639.00 Ships in 2-3 weeks View
LS-BKL-1350 300 x 200 mm $719.00 Ships in 2-3 weeks View
LS-BKL-1360 250 x 250 mm $739.00 Ships in 2-3 weeks View
LS-BKL-1361 320 x 320 mm $1,059.00 Ships in 2-3 weeks View
LS-BKL-1362 350 x 350 mm $1,209.00 Ships in 2-3 weeks View
