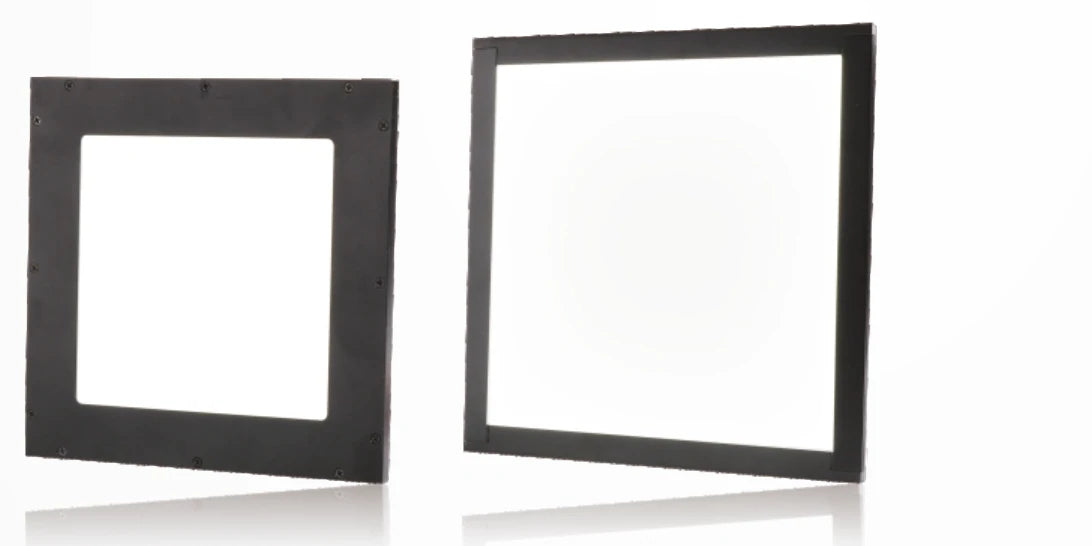

Representative photo of this series
Backlights
189 x 189 mm Ultrathin flank back light (LS-BKL-1255)
Model LS-BKL-1255
- ColourRed, Green, Blue, White
- Emitting area100mm x 100mm
- Voltage24 V
- TypeEdge-lit / ultra-thin
$509.00
Ships in 2-3 weeks
0.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ultrathin side-lit back light down to 7 mm thickness that is easy to install in narrow spaces, with high uniformity; sizes can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1255 |
|---|---|
| Customizable | length and width, colour and colour temperature, cable length, installation method |
| FOV | 1~190mm |
Optics
| Recommended working distance | 1~200mm |
|---|
Interfaces and I/O

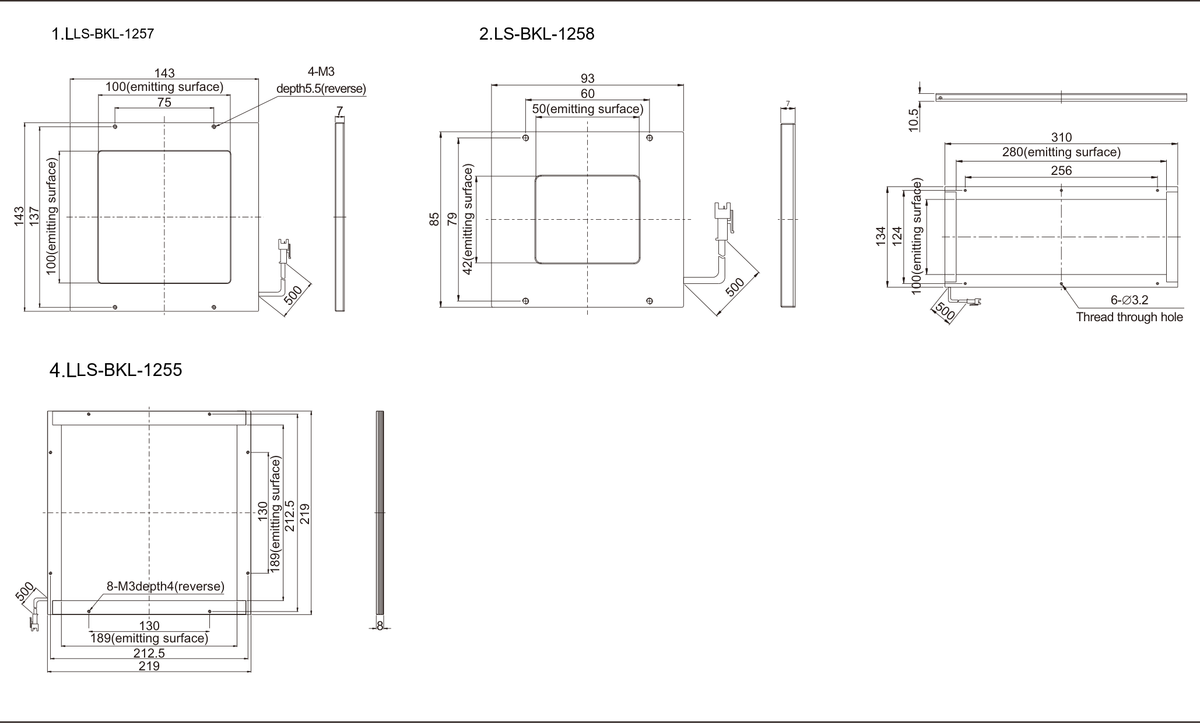

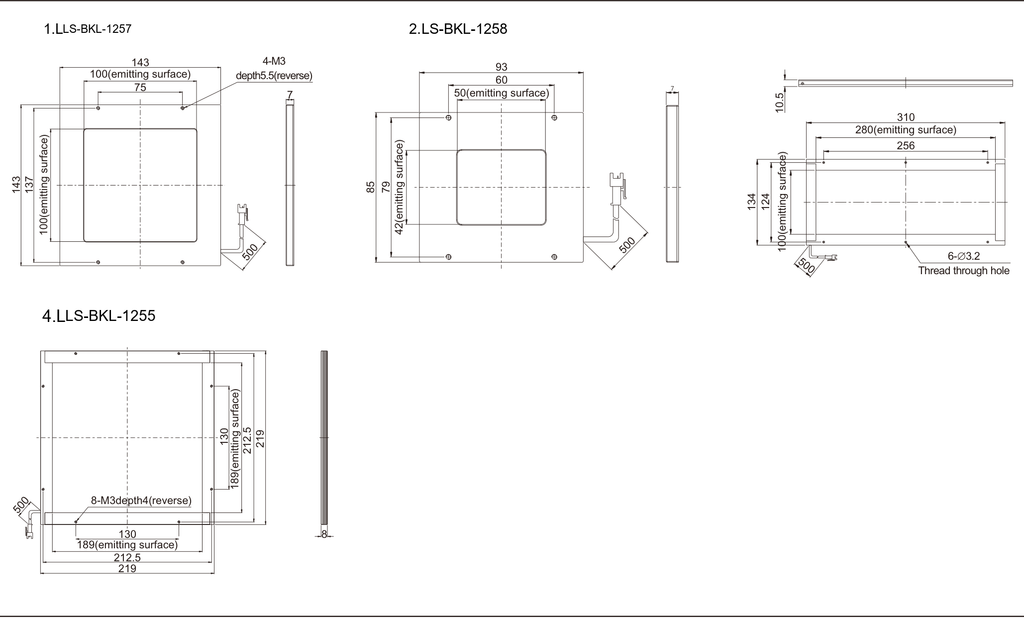

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Min. emitting area | 100mm x 100mm |
|---|---|
| Max. emitting area | 200mm x 200mm |
| Colours (overview) | red / green / blue / white |
| Colour temperature of white | 6600K |
| Custom wavelengths | UV & IR light can be customized as required |
| Emitting surface (mm) | 189 x 189 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller, high power controller |
| Power, R (W) | 15.4 |
| Power, G/B/W (W) | 23.1 |
Mechanical
| Weight (g) | 589 |
|---|---|
| Thickness (mm) | 8 |
| Mounting | 8-M3 depth 4 (reverse) |
Other models in the Ultrathin flank back light (LS-BKL-S120) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1258 | 50 x 42 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BKL-1257 | 100 x 100 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-BKL-1256 | 280 x 100 mm | $439.00 | Ships in 2-3 weeks | View |
