surface light source, no opening
  • surface light source, no opening
  • LS-BKL-1214 dimensions (mm)

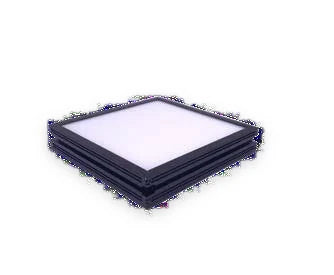

Representative photo of this series

Backlights

498.5 x 248.5 mm surface light source, no opening (LS-BKL-1214)

Model LS-BKL-1214

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area498.5 x 248.5 mm
  • Voltage24 V DC (12 V on request)
  • TypeStandard
$1,209.00

Ships in 2-3 weeks

2.6 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

498.5 x 248.5 mm surface light source, no opening (LS-BKL-1214)LS-BKL-1214

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1214

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)498.5 x 248.5

Electrical

Voltage24 V DC (12 V on request)
Power red (W)68.64
Power white/blue/green (W)85.80

Mechanical

Thickness (mm)20
MountingM3 nut placement groove, groove depth 4.5 mm
Overall length (mm)511.5
Overall width (mm)216.5
Overall height (mm)20
Shipping weight2.60 kg

Other models in the Surface light source, no opening (LS-BKL-S116) series

See all 16 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1203 99 x 99 mm $279.00 Ships in 2-3 weeks View
LS-BKL-1204 119 x 99 mm $289.00 Ships in 2-3 weeks View
LS-BKL-1205 149 x 99 mm $319.00 Ships in 2-3 weeks View
LS-BKL-1208 117 x 130 mm $319.00 Ships in 2-3 weeks View
LS-BKL-1206 199 x 99 mm $359.00 Ships in 2-3 weeks View
LS-BKL-1209 149 x 149 mm $389.00 Ships in 2-3 weeks View
LS-BKL-1207 299 x 98.5 mm $449.00 Ships in 2-3 weeks View
LS-BKL-1210 199 x 149 mm $449.00 Ships in 2-3 weeks View
LS-BKL-1212 199 x 199 mm $539.00 Ships in 2-3 weeks View
LS-BKL-1213 299 x 199 mm $709.00 Ships in 2-3 weeks View
LS-BKL-1211 399 x 149 mm $719.00 Ships in 2-3 weeks View
LS-BKL-1216 299 x 299 mm $949.00 Ships in 2-3 weeks View
LS-BKL-1217 399 x 299 mm $1,189.00 Ships in 2-3 weeks View
LS-BKL-1218 349 x 349 mm $1,199.00 Ships in 2-3 weeks View
LS-BKL-1215 511 x 248.5 mm $1,239.00 Ships in 2-3 weeks View
