Representative photo of this series
Backlights
Ultra brightness back light, 181 x 167 x 98.52 mm (LS-BKL-0948)
Model LS-BKL-0948
- Emitting area150 x 150 mm
- SizeL181xW167xH98.52(mm)
- Voltage24V
- Power144W/187.2W
$299.00
Ships in 2-3 weeks
1.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Luminance 800,000 to 2,000,000 lux. Can be used as constant on or strobing. Used for short exposure time and high speed shooting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0948 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 150 x 150 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 144W/187.2W |
| Input voltage | DC 24V (max) |
Mechanical

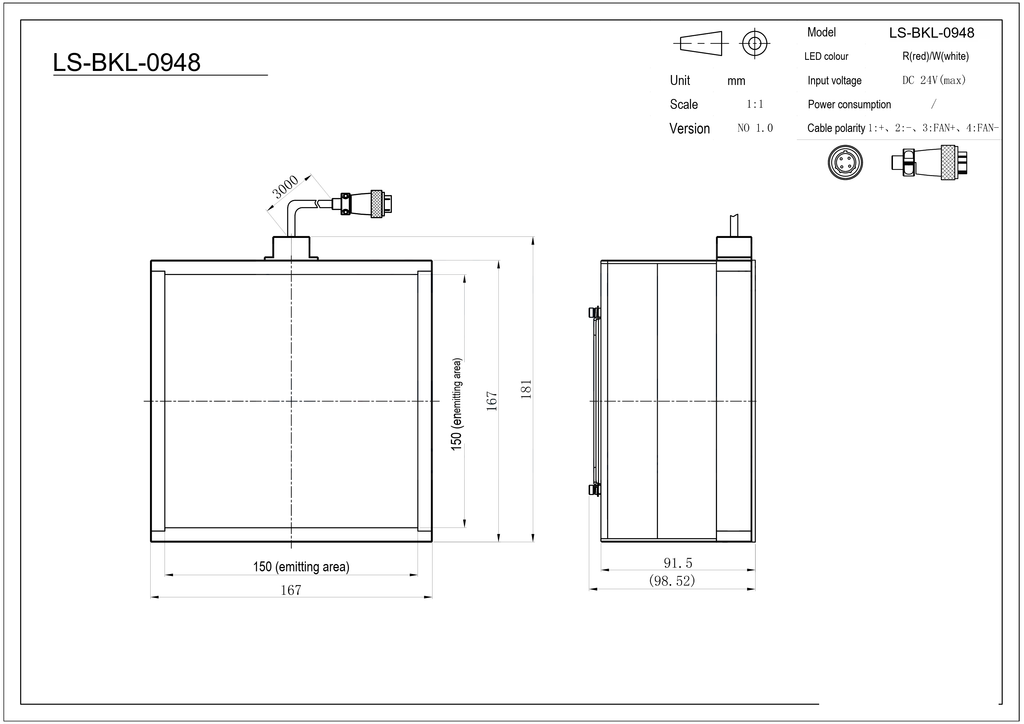

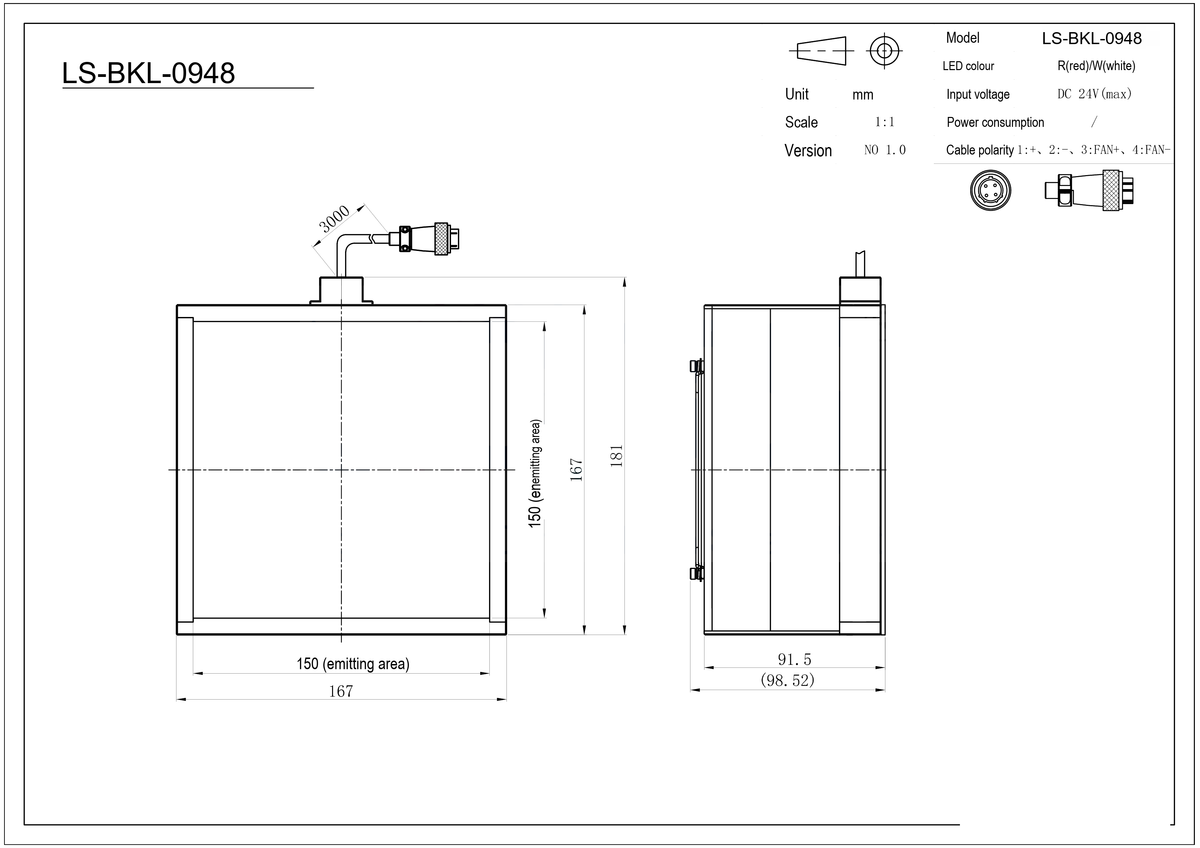

| Dimension | L181xW167xH98.52(mm) |
|---|---|
| Shipping weight | 1.50 kg |
Other models in the Ultra brightness back light (LS-BKL-S94) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0945 | 88 x 88 mm · L105xW105xH96.52(mm) | $189.00 | Ships in 2-3 weeks | View |
| LS-BKL-0946 | 100 x 100 mm · L131xW117xH96.52(mm) | $209.00 | Ships in 2-3 weeks | View |
| LS-BKL-0947 | 120 x 120 mm · L151xW137xH96.52(mm) | $239.00 | Ships in 2-3 weeks | View |
