Representative photo of this series
Backlights
200 x 200 mm Collimated back light (LS-BKL-0838)
Model LS-BKL-0838
- ColourRed, Green, Blue, White
- Emitting area30mm x 30mm
- Voltage24 V
- TypeCollimated
$559.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light with a special parallel film design: simple structure, high effect. Compared with a normal back light it has lower luminance but less virtual border and higher measuring precision.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0838 |
|---|---|
| Customizable | viewport, length and width, multi-area control, colour and colour temperature, cable length, installation method |
| Option | Double-deck parallel film |
| Caution | The parallel film is a consumable; in high temperature it can deform or change colour. Mind heat transfer so it stays below the film's heat-resistance temperature. |
| FOV | 1~280mm |
Optics
| Recommended working distance | 1~100mm |
|---|
Interfaces and I/O

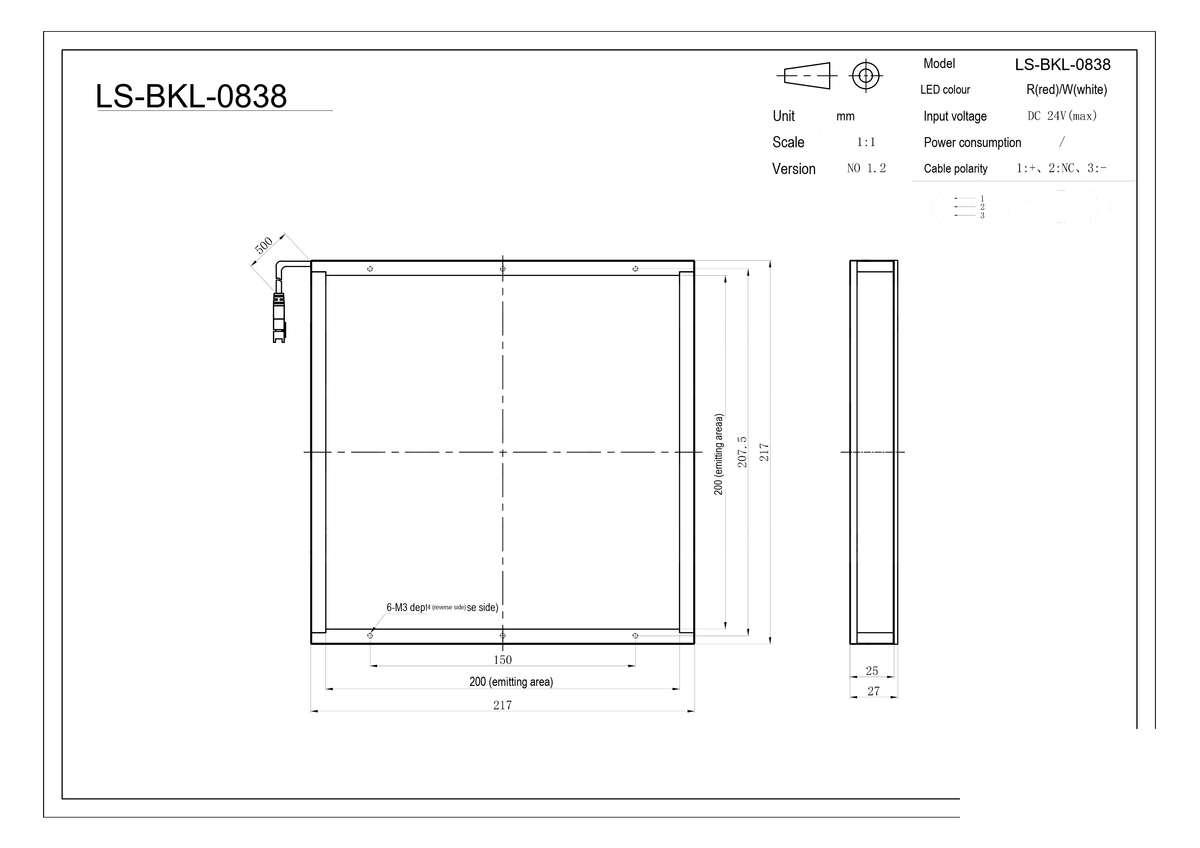

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Min. emitting area | 30mm x 30mm |
|---|---|
| Max. emitting area | 340mm x 260mm |
| Colours (overview) | red / green / blue / white |
| Colour temperature of white | 6600K |
| Custom wavelengths | UV & IR light can be customized as required |
| Emitting surface (mm) | 200 x 200 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller, high power controller |
| Power, R (W) | 20.2 |
| Power, G/B/W (W) | 33.6 |
Mechanical
| Weight (g) | 1320 |
|---|
