Ultrathin flank back light (LS-BKL-S85)
  • Ultrathin flank back light (LS-BKL-S85)

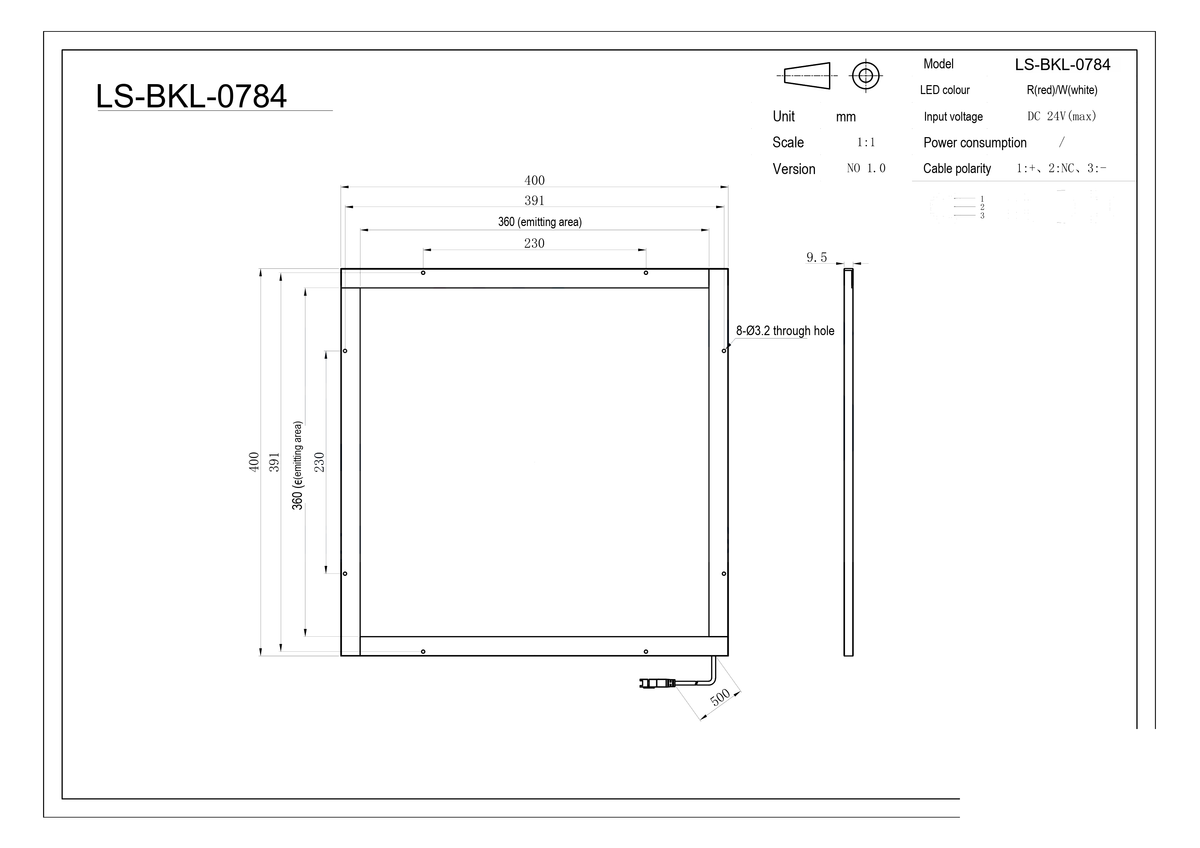

  • LS-BKL-0784 dimensions (mm)

Representative photo of this series

Backlights

Ultrathin flank back light, 400 x 400 x 9.5 mm (LS-BKL-0784)

Model LS-BKL-0784

  • ColourRed, Blue, Green, White
  • SizeL400xW400xH9.5(mm)
  • Voltage24V
  • Power23.1W/30.8W
$959.00

Ships in 2-3 weeks

1.85 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ultrathin flank back light, 400 x 400 x 9.5 mm (LS-BKL-0784)LS-BKL-0784

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

A stable structure combined with ultra-thin thickness. Easy to install in the narrow space. High uniformity.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0784
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -
Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)

Electrical

Voltage24V
Power23.1W/30.8W
Input voltageDC 24V (max)

Mechanical

DimensionL400xW400xH9.5(mm)
Shipping weight1.85 kg

Other models in the Ultrathin flank back light (LS-BKL-S85) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-0776 Red, Blue, Green, White · L70xW70xH9.5(mm) $149.00 Ships in 2-3 weeks View
LS-BKL-0777 Red, Blue, Green, White · L90xW90xH9.5(mm) $169.00 Ships in 2-3 weeks View
LS-BKL-0778 Red, Blue, Green, White · L100xW100xH9.5(mm) $179.00 Ships in 2-3 weeks View
LS-BKL-0779 Red, Blue, Green, White · L140xW140xH9.5(mm) $229.00 Ships in 2-3 weeks View
LS-BKL-0780 Red, Blue, Green, White · L190xW190xH9.5(mm) $319.00 Ships in 2-3 weeks View
LS-BKL-0781 Red, Blue, Green, White · L240xW240xH9.5(mm) $439.00 Ships in 2-3 weeks View
LS-BKL-0782 Red, Blue, Green, White · L290xW290xH9.5(mm) $579.00 Ships in 2-3 weeks View
LS-BKL-0783 Red, Blue, Green, White · L340xW340xH9.5(mm) $739.00 Ships in 2-3 weeks View
LS-BKL-0785 Red, Blue, Green, White · 450 x 450 mm $1,359.00 Ships in 2-3 weeks View
