Backlights

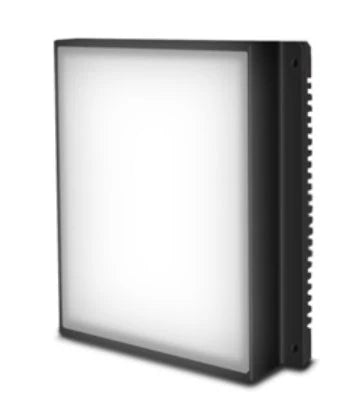

200 x 150 mm Back light (LS-BKL-0680)
Model LS-BKL-0680
- ColourWhite, Red, Green, Blue
- Emitting area200 x 150 mm
- VoltageDC 24V max.
- Power28.3W
$459.00
Ships in 2-3 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light with surface-mounted LEDs, aluminium alloy housing with black oxide finish and natural air cooling.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0680 |
|---|---|
| Type | Back light |
| Cooling mode | Natural air cooling |
| Insulating requirement | DC500V insulation resistance >20 MΩ |
| Flammability level | IEC60707 |

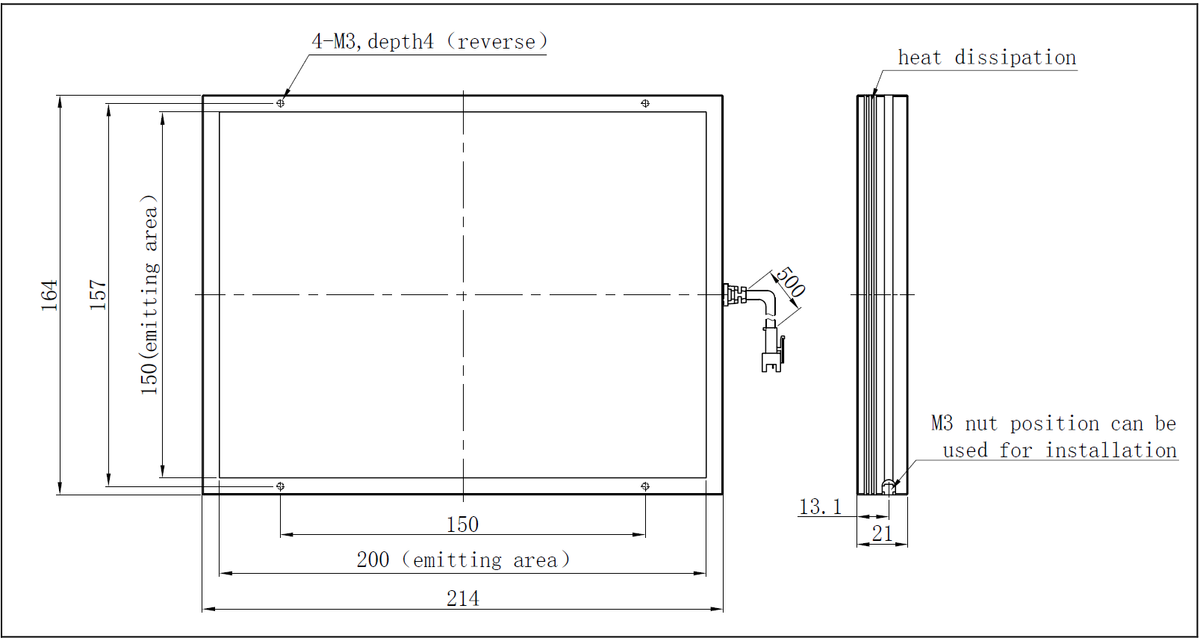

| Outline (mm) | 214 x 164 x 21 |
Interfaces and I/O
| Connector model | SMR-03V-B |
|---|---|
| Connector Definition | 1, Positive (+); 2, blank; 3, Negative (-) |
| Cable length (mm) | 500 |
Light
| LED model | Surface-mounted LED |
|---|---|
| Color | White |
| Color temperature | 6600k |
| Emitting area (mm) | 200 x 150 |
Environment and compliance
| Operating temp. & humidity | Temperature: 0 to 50ºC, humidity: 20 to 85%RH (non-condensing) |
|---|---|
| Lifespan | Using according to the specification, red 50,000 hour, white 30,000 hour, luminance will be reduced to 50% of factory value. |
Electrical
| Input voltage | DC 24V max. |
|---|---|
| Power | 28.3W |
| Withstand voltage | AC1000V 10mA/5S |
| Matched power (option) | 1. High power controller; 2. Digital controller; 3. Analog controller |
Mechanical
| Wire length | 0.5m |
|---|---|
| Shell material | Aluminium alloy (surface black oxide finish) |
| Shell hardness parameter | Static load 230N±10N, time 5 minutes, contact area: dia. 30MM; Energy level: 5J, element: steel ball dia. 50MM, 500g±25g |
| Mounting | 4 x M3, depth 4 (reverse side); M3 nut position can be used for installation |
| Shipping weight | 1.00 kg |
