Backlights

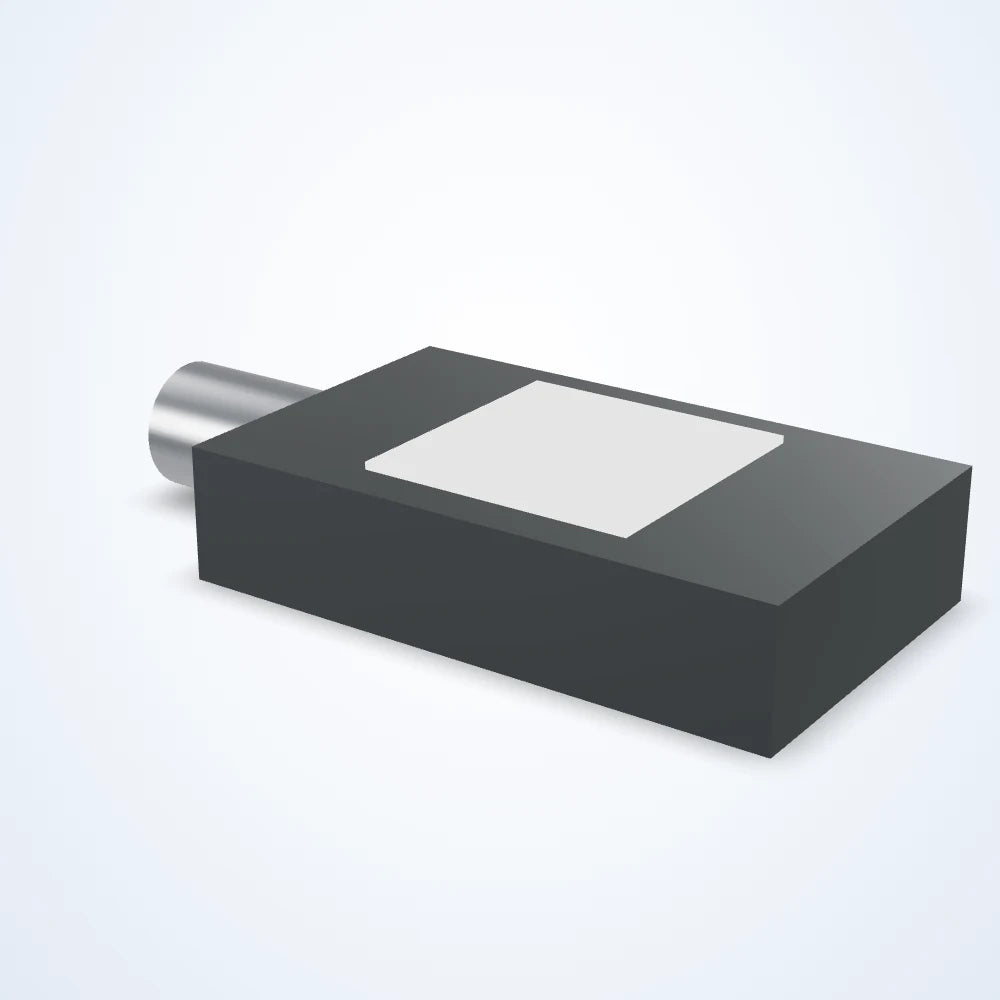

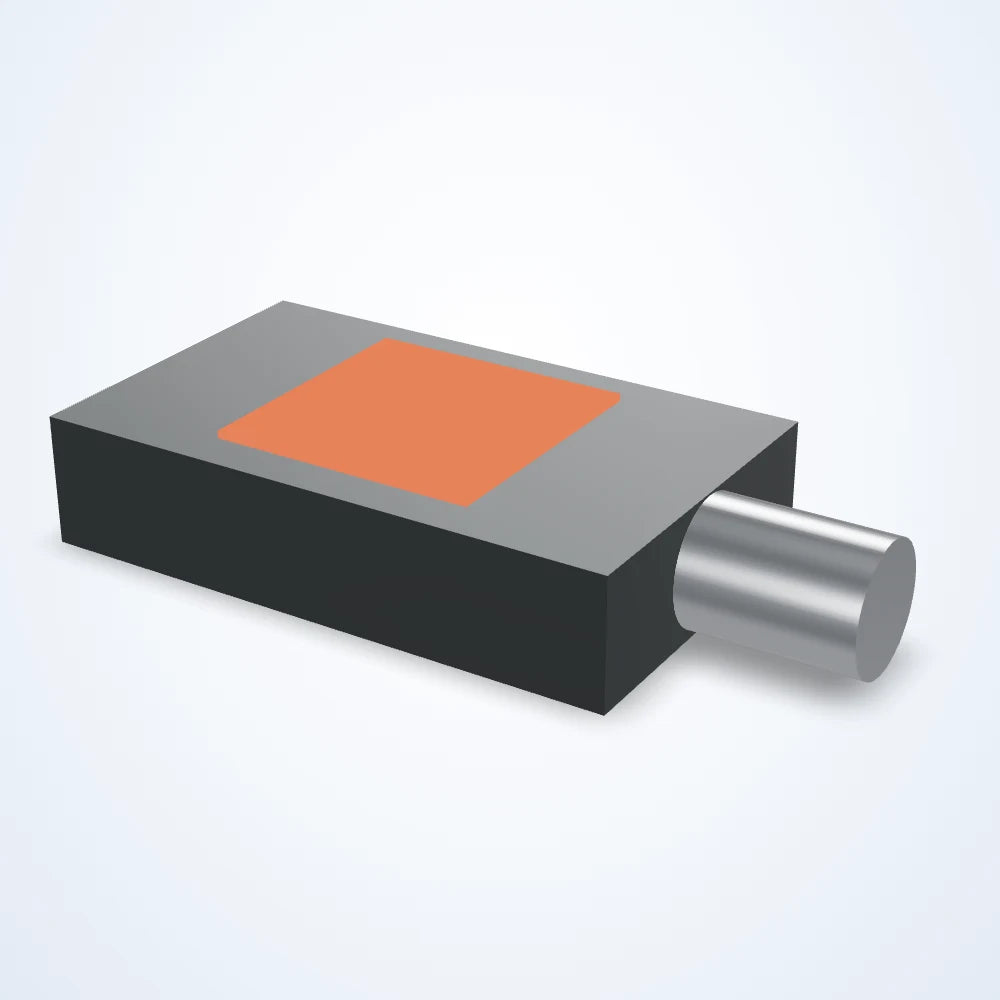

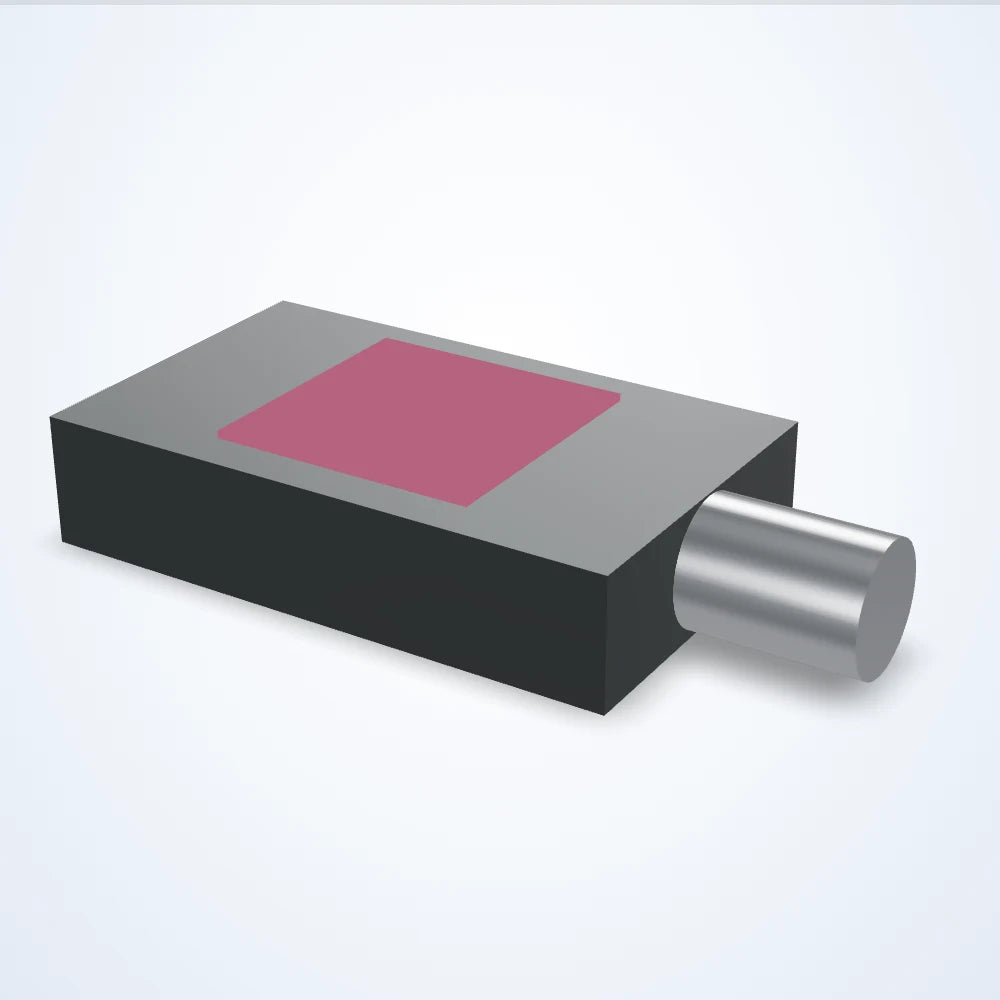

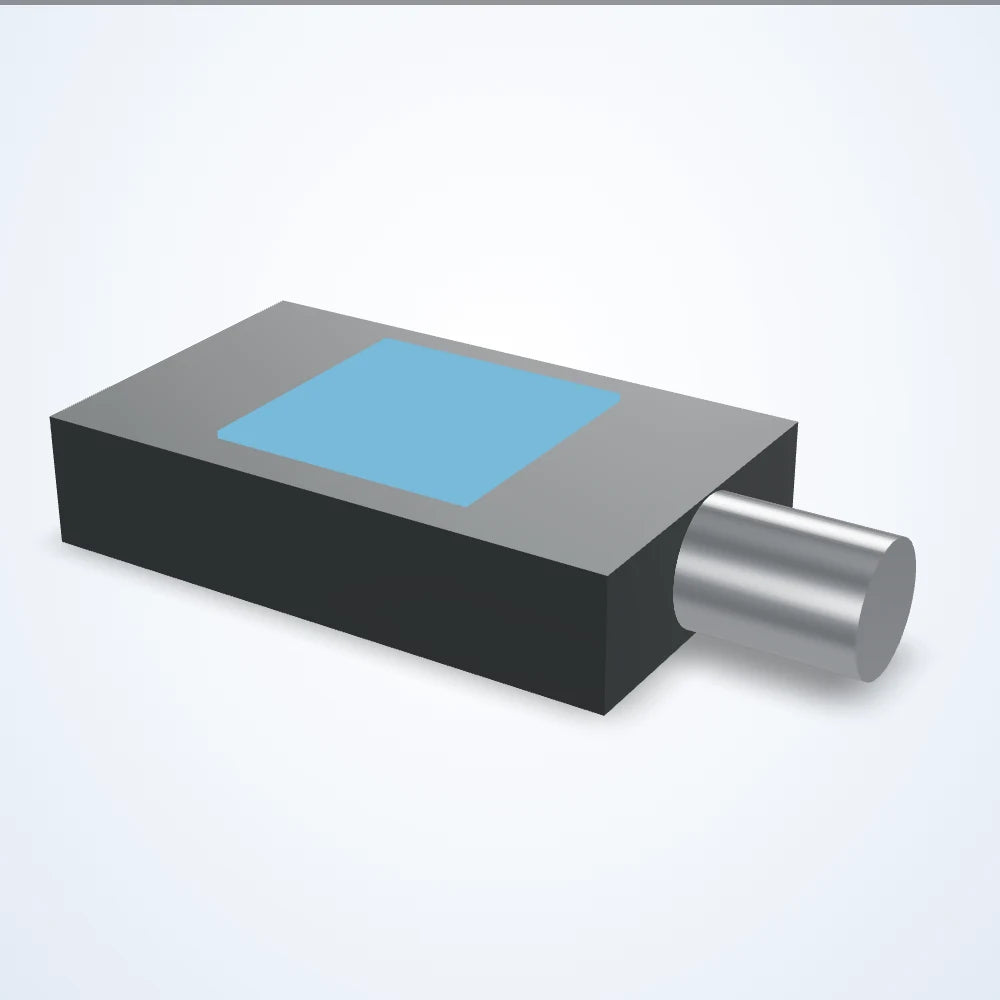

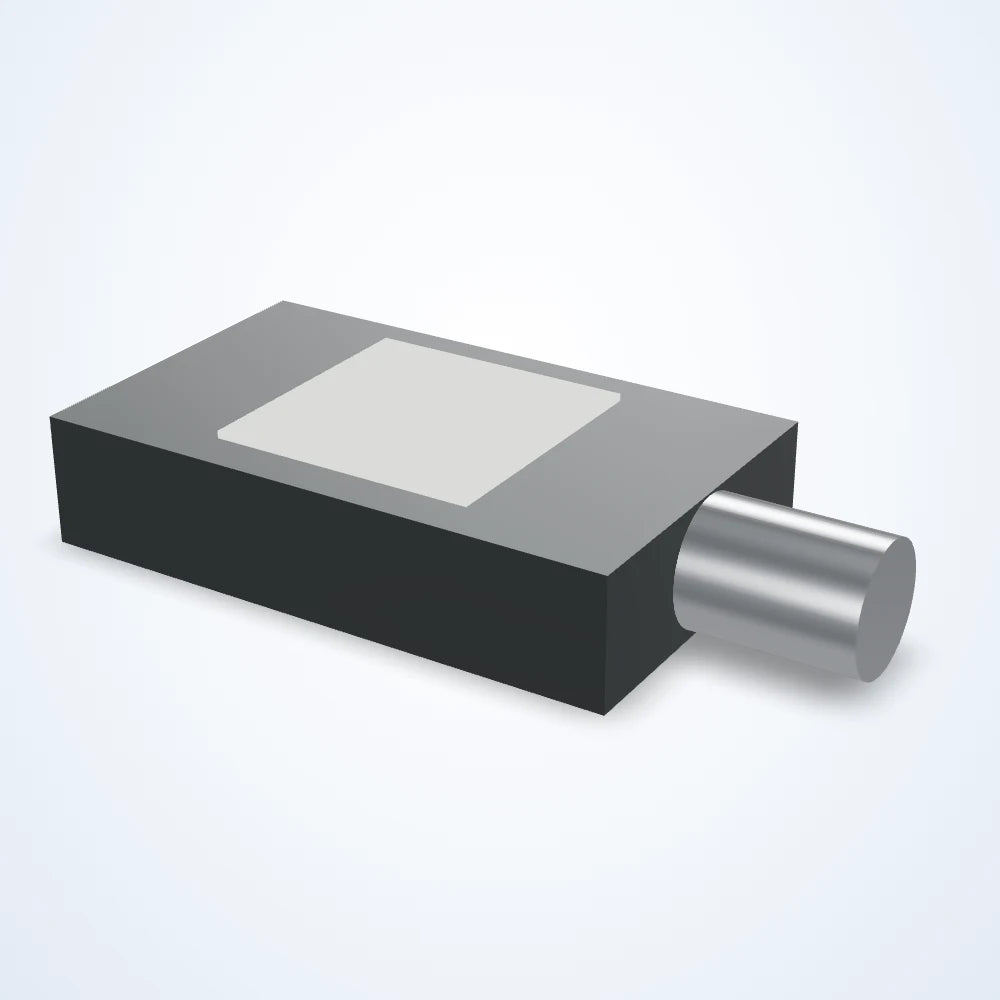

Backlight, 25.5 x 25.5 mm lit area (LS-BKL-0508)
Model LS-BKL-0508
- ColourWhite, Red, Infrared, Blue
- Voltage24 VDC
- AngleDiffused
- TypeStandard
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 4 available
Configuration LS-BKL-0508-1 $719.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 25.5 x 25.5 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (4 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0508 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Strobe, Strobe – Dimmable |
| Collimated | Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | 10 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, CSA, FCC, IEC 62471, KCC, RoHS, UL |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 300 mA |
| Max overcurrent strobe input power | 7 W |
| Maximum constant on current (mA) | 200 |
| Maximum current (overcurrent strobe) (mA) | 300 |
| Maximum input power constant on (W) | 4.8 |
| Maximum input power overcurrent strobe (W) | 7 |
| Maximum overcurrent strobe duration (ms) | 50 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Maximum strobe current (mA) | 200 |
| Maximum strobe duration (ms) | No Limit |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (Hz) | 4000 |
| Maximum strobe input power (W) | 5 |
| Maximum strobe latency (µs) | 10 |
| Minimum overcurrent strobe duration (µs) | 30 |
| Minimum strobe duration (µs) | 30 |
| NPN trigger current (mA) | 12 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 13.4 |
| PNP trigger voltage (V) | 3.3-24 VDC |
Mechanical
| Lit length (mm) | 25.5 |
|---|---|
| Lit width (mm) | 25.5 |
| Length (mm) | 56.5 |
| Width (mm) | 34 |
| Height (mm) | 12.4 |
| Housing | Aluminum |
| Mounting | T-Slot Channels, Tapped Holes |
LS-BKL-0508
See this component from every angle.

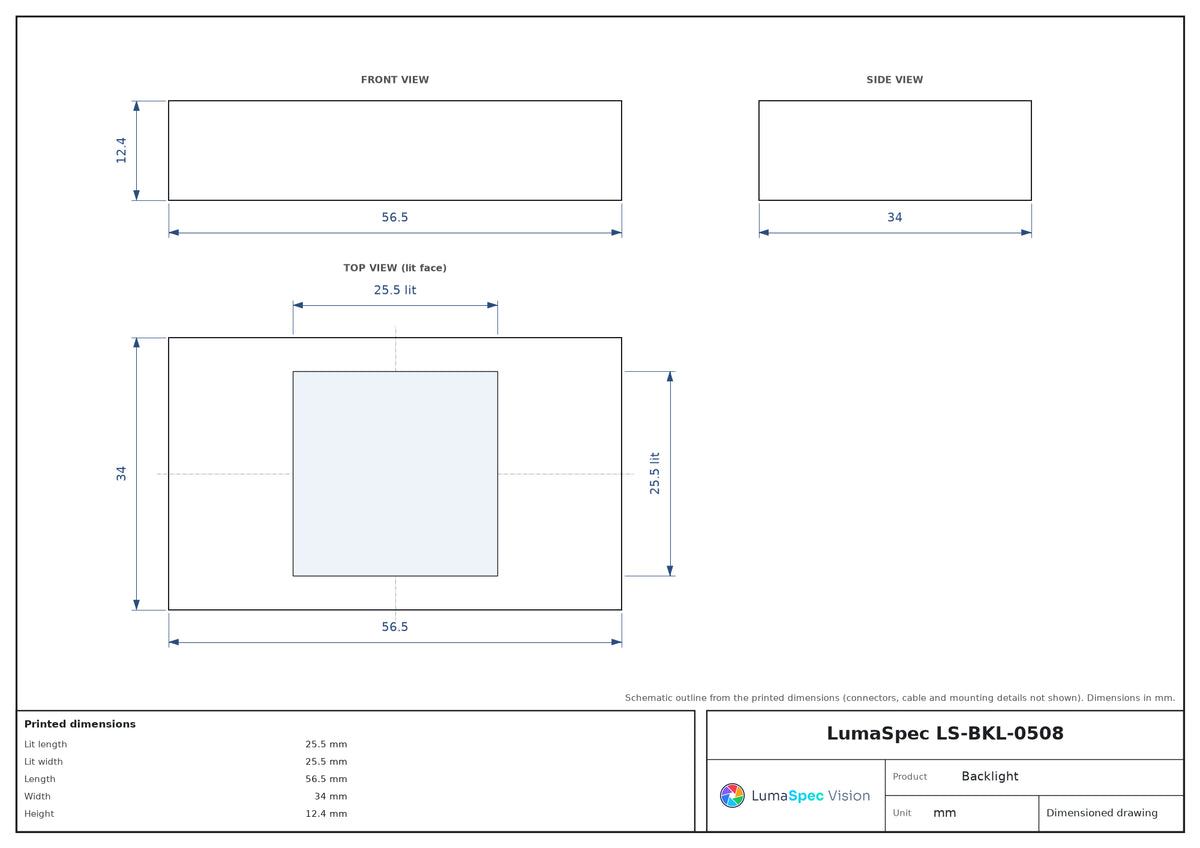

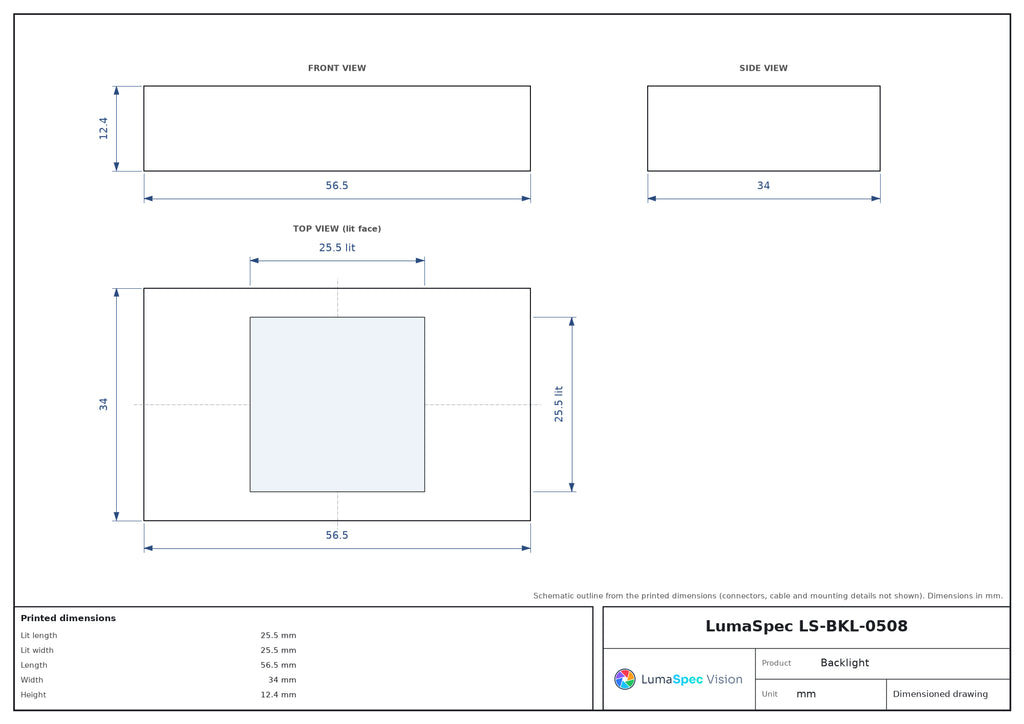

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit length (mm)
- 25.5
- Lit width (mm)
- 25.5
- Length (mm)
- 56.5
- Width (mm)
- 34
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Backlight series, 12.4 mm high, 5 Pin M12 Male A-Coded series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0509 | 50.5 x 50.5 mm | $829.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0510 | 75.5 x 75.5 mm | $1,149.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0507 | 100.5 x 100.5 mm | $1,339.00 Quote | Built to order: ships in about 1-2 weeks | View |
