Backlights
Backlight, 85.6 x 85.6 mm lit area, 625nm Red, driver included, strobe trigger input PNP Trigger (LS-BKL-0377)
Model LS-BKL-0377
- ColourRed
- Voltage24 VDC
- Wavelength625nm Red
- TypeHigh power / strobe
$1,769.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 85.6 x 85.6 mm; 24 VDC supply; connection: flying leads.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0377 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | 625nm Red |
|---|---|
| Diffused | Not Diffused |
| Wavelength | 625nm Red |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | PNP Trigger |
| Max overcurrent strobe current | 8000 mA |
| Max overcurrent strobe input power | 125 W |
| Maximum constant on current (mA) | 592 |
| Maximum current (overcurrent strobe) (mA) | 8000 |
| Maximum input power constant on (W) | 14.2 |
| Maximum input power overcurrent strobe (W) | 125 |
| Maximum overcurrent strobe frequency (Hz) | 2000 |
| Maximum overcurrent strobe latency (µs) | 60 |
| Minimum overcurrent strobe duration (µs) | 30 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 5 |
| PNP trigger voltage (V) | 2.5-30 VDC |
Mechanical

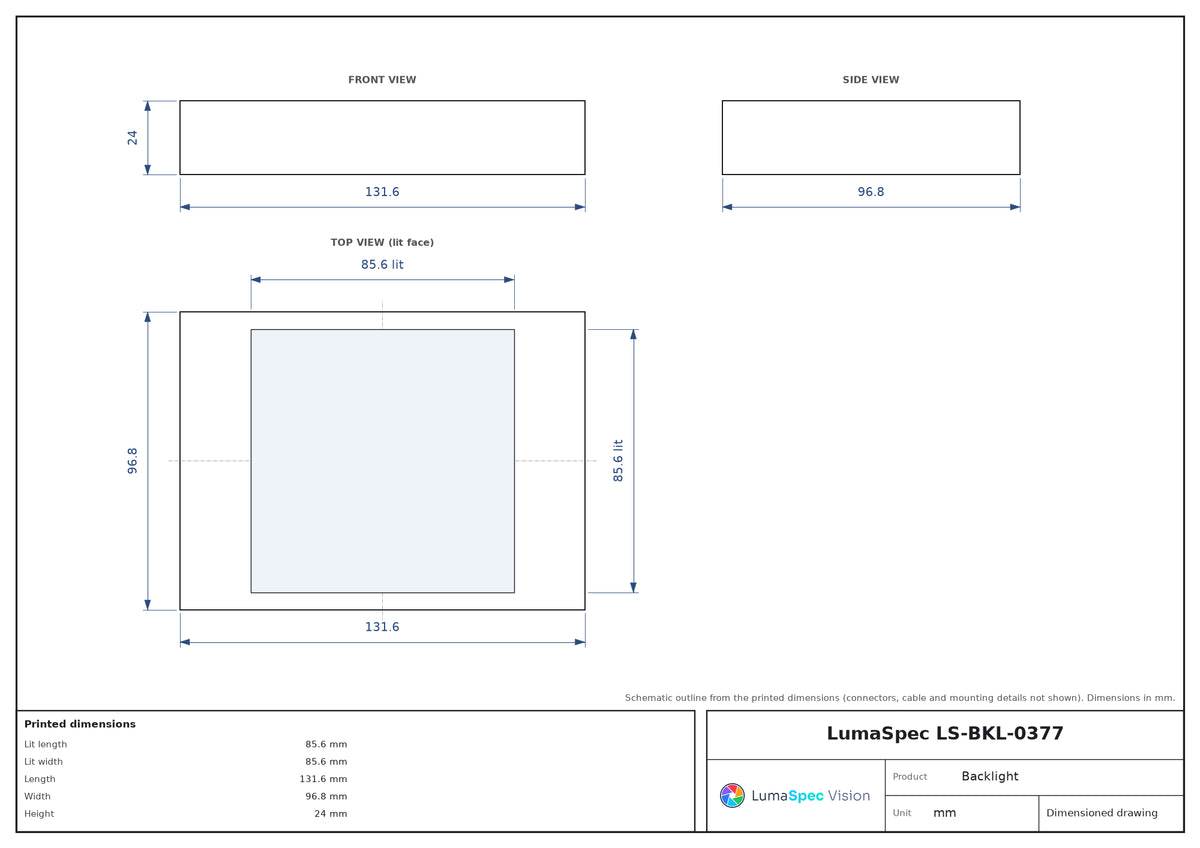

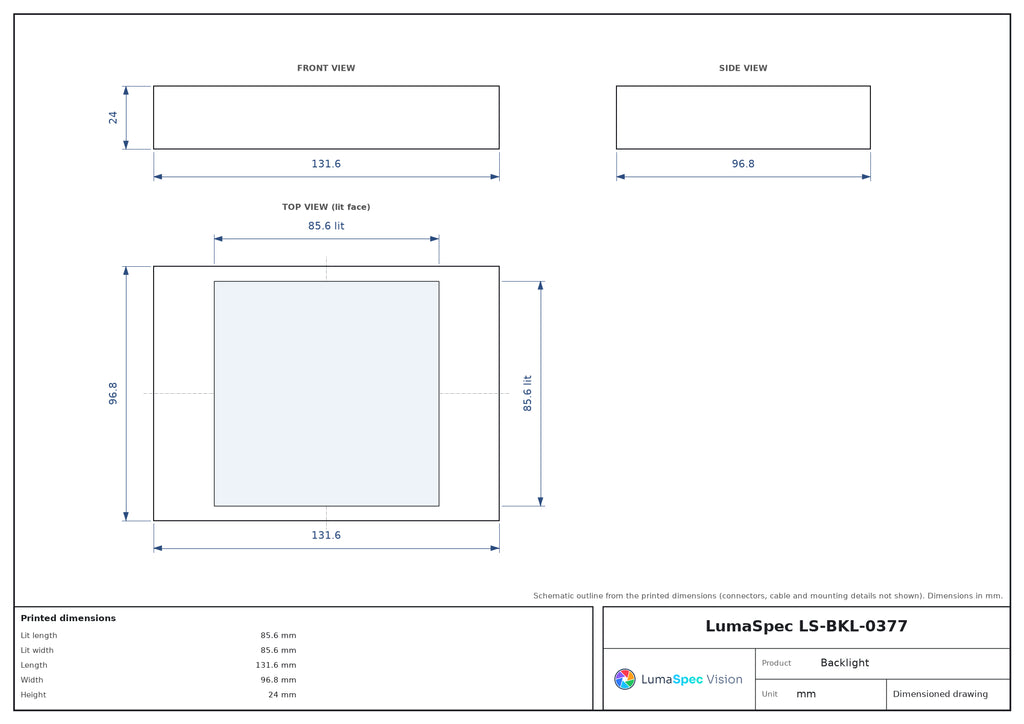

| Lit length (mm) | 85.6 |
|---|---|
| Lit width (mm) | 85.6 |
| Length (mm) | 131.6 |
| Width (mm) | 96.8 |
| Height (mm) | 24 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 24 mm high, Flying Leads series
