Backlight series, 24 mm high, Flying Leads
  • Backlight series, 24 mm high, Flying Leads
  • Backlight series, 24 mm high, Flying Leads - view 2

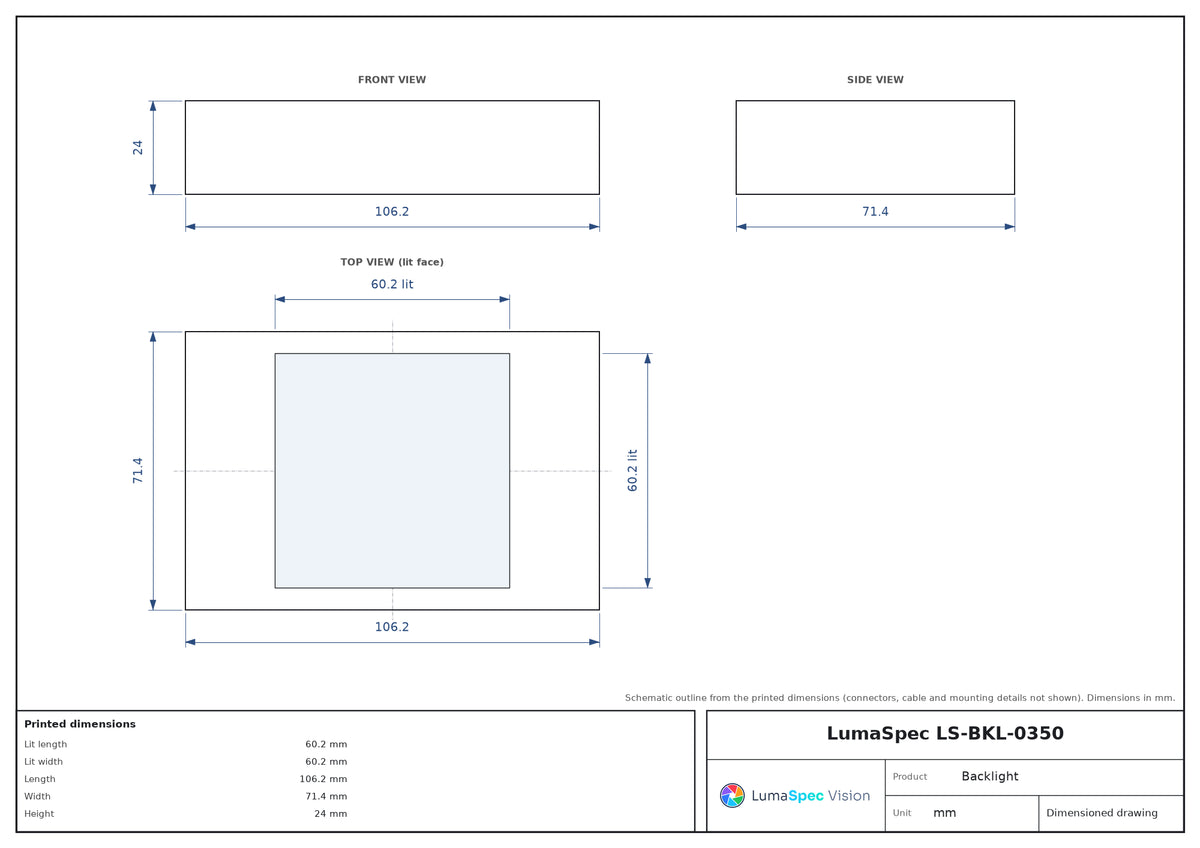

  • LS-BKL-0350 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 60.2 x 60.2 mm lit area, 470nm Blue, driver included, strobe trigger input Constant On Only (LS-BKL-0350)

Model LS-BKL-0350

  • ColourBlue
  • Voltage24 VDC
  • Wavelength470nm Blue
  • TypeHigh power / strobe
$1,419.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Backlight, 60.2 x 60.2 mm lit area, 470nm Blue, driver included, strobe trigger input Constant On Only (LS-BKL-0350)LS-BKL-0350

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 60.2 x 60.2 mm; 24 VDC supply; connection: flying leads.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0350
Connection at lightHardwired
Driver includedIncluded
Driver locationIn Line
Intensity controlAnalog Voltage
Operating modesConstant On
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

Colour470nm Blue
DiffusedNot Diffused
Wavelength470nm Blue

Environment and compliance

Operating temperatureup to 60 °C
ComplianceCE
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Strobe trigger inputConstant On Only
Maximum constant on current (mA)352
Maximum input power constant on (W)8.5

Mechanical

Lit length (mm)60.2
Lit width (mm)60.2
Length (mm)106.2
Width (mm)71.4
Height (mm)24
HousingAluminum
MountingT-Slot Channel
