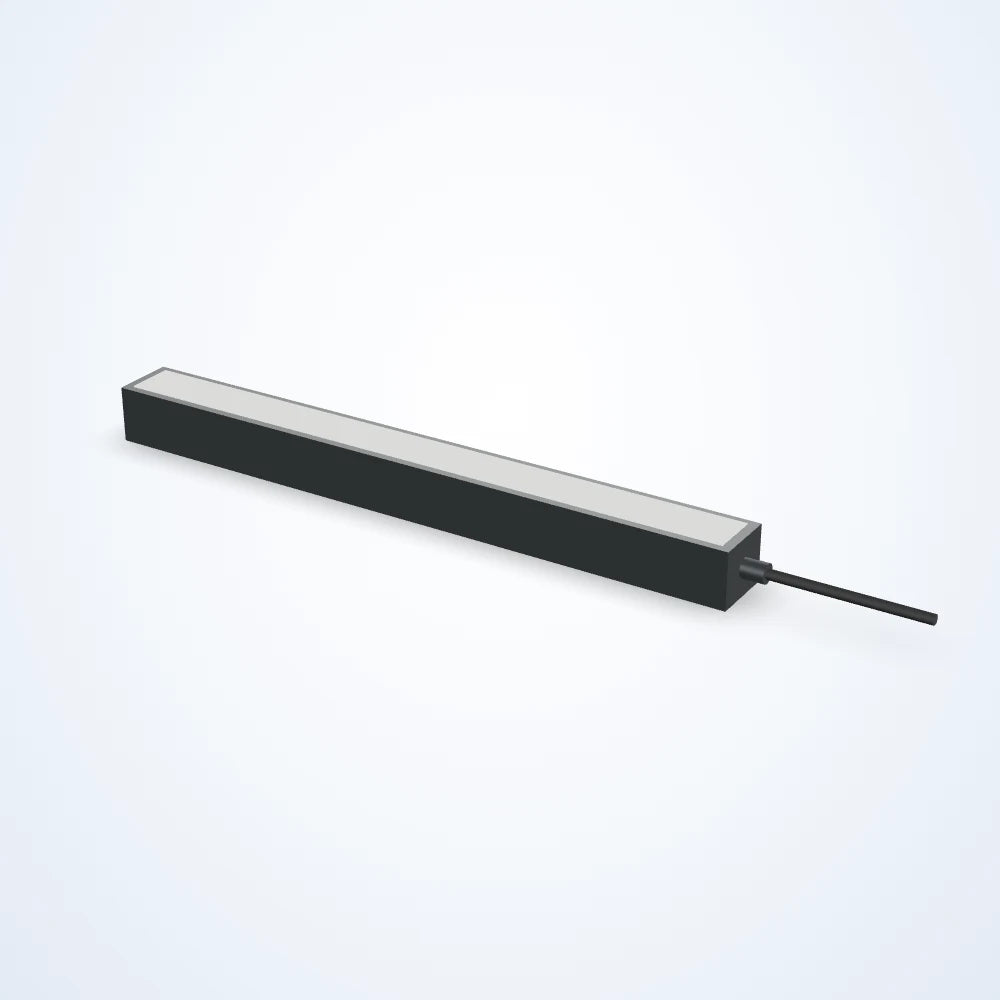

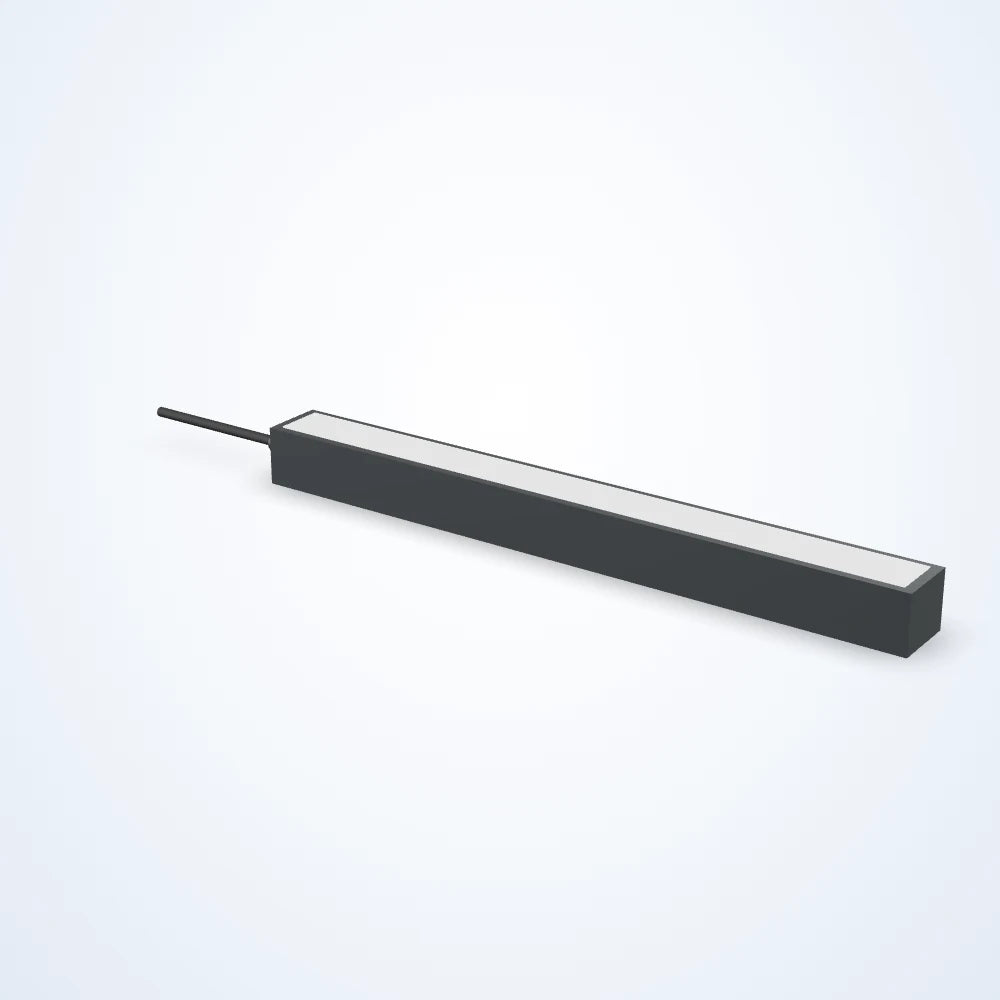

Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 341.9 x 25.4 mm lit area (LS-BKL-0196)
Model LS-BKL-0196
- ColourWhite
- Voltage24 VDC
- WavelengthWHITE
- TypeStandard
$889.00
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 341.9 x 25.4 mm; 24 VDC supply; connection: flying leads.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0196 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | WHITE |
|---|---|
| Diffused | Not Diffused |
| Wavelength | WHITE |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 415 |
| Maximum input power constant on (W) | 10 |

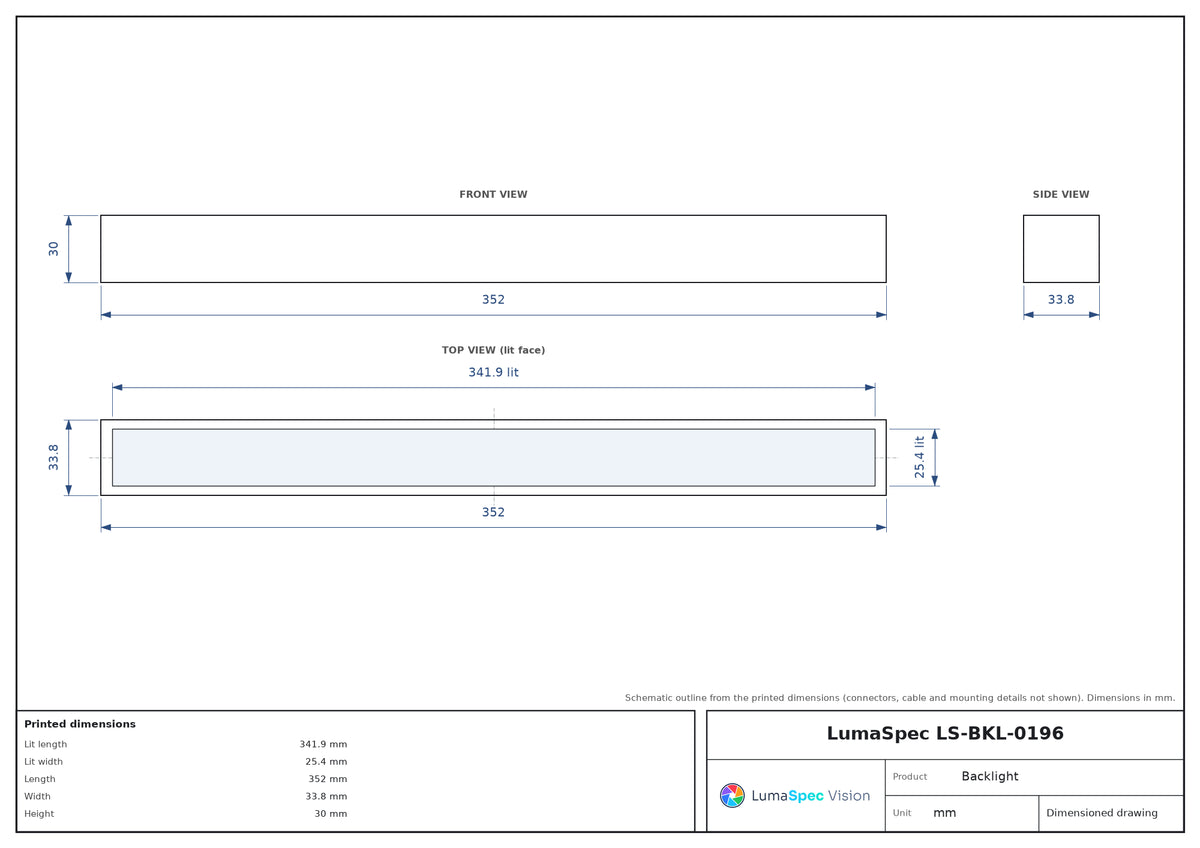

Mechanical
| Lit length (mm) | 341.9 |
|---|---|
| Lit width (mm) | 25.4 |
| Length (mm) | 352 |
| Width (mm) | 33.8 |
| Height (mm) | 30 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 30 mm high, Flying Leads series
See all 282 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0146 | 37.1 x 25.4 mm | $849.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0147 | 37.1 x 25.4 mm | $849.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0150 | 62.5 x 25.4 mm | $849.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0151 | 62.5 x 25.4 mm | $849.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0193 | 341.9 x 25.4 mm | $859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0197 | 367.3 x 25.4 mm | $859.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0154 | 87.9 x 25.4 mm | $869.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0155 | 87.9 x 25.4 mm | $869.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0158 | 113.3 x 25.4 mm | $869.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0159 | 113.3 x 25.4 mm | $869.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0075 | 697.5 x 25.4 mm | $889.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0076 | 722.9 x 25.4 mm | $889.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0200 | 367.3 x 25.4 mm | $889.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0162 | 138.7 x 25.4 mm | $899.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0163 | 138.7 x 25.4 mm | $899.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0166 | 164.1 x 25.4 mm | $899.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0167 | 164.1 x 25.4 mm | $899.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0170 | 189.5 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0171 | 189.5 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0174 | 214.9 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0175 | 214.9 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0201 | 392.7 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0205 | 418.1 x 25.4 mm | $919.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0077 | 748.3 x 25.4 mm | $929.00 Quote | Built to order: ships in about 4-5 weeks | View |
