Backlight, 164.1 x 25.4 mm lit area (LS-BKL-0165)

Model LS-BKL-0165

ColourWhite
Voltage24 VDC
WavelengthWHITE
TypeStandard

$729.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 164.1 x 25.4 mm; 24 VDC supply; connection: flying leads.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0165
Connection at light	Hardwired
Driver included	No Driver Required
Driver location	No Driver
Operating modes	Constant On
Collimated	Not Collimated
Daisy chain	No
Direct connect	No
Maximum duty cycle (%)	100
Polarized	Not Polarized

Interfaces and I/O

Connector	Flying Leads
Cable length (mm)	2000

Light

Colour	WHITE
Diffused	Not Diffused
Wavelength	WHITE

Environment and compliance

Operating temperature	up to 60 °C
IP rating	IP50
Compliance	CE
Minimum operating temperature	32 °F (0 °C)

Electrical

Voltage	24 VDC
Strobe trigger input	Constant On Only
Maximum constant on current (mA)	137
Maximum input power constant on (W)	3.3

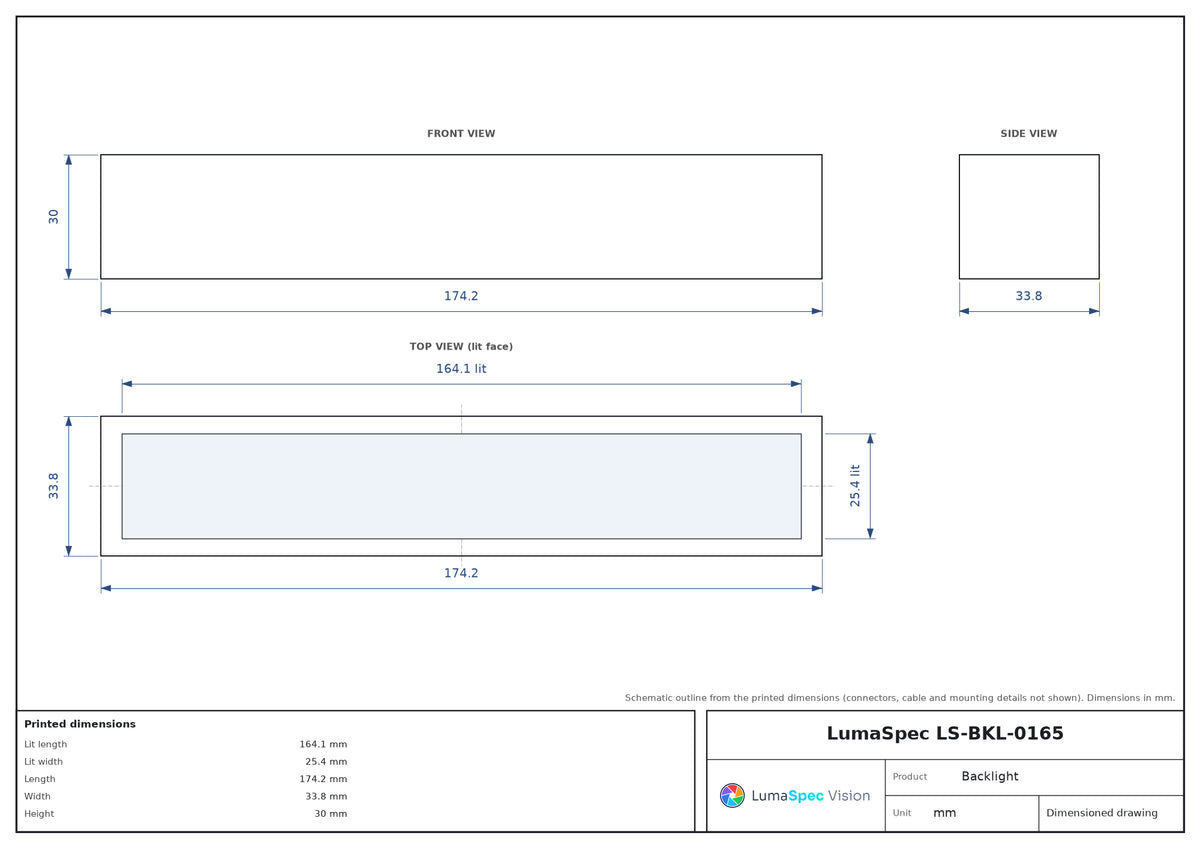

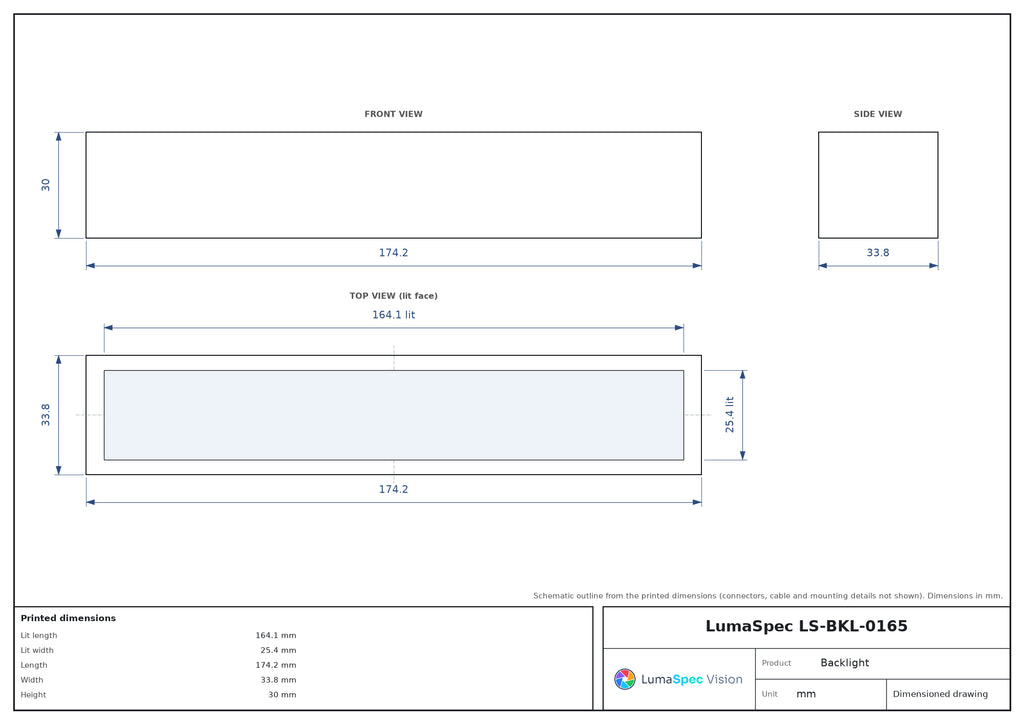

Mechanical

Lit length (mm)	164.1
Lit width (mm)	25.4
Length (mm)	174.2
Width (mm)	33.8
Height (mm)	30
Housing	Aluminum
Mounting	T-Slot Channel
