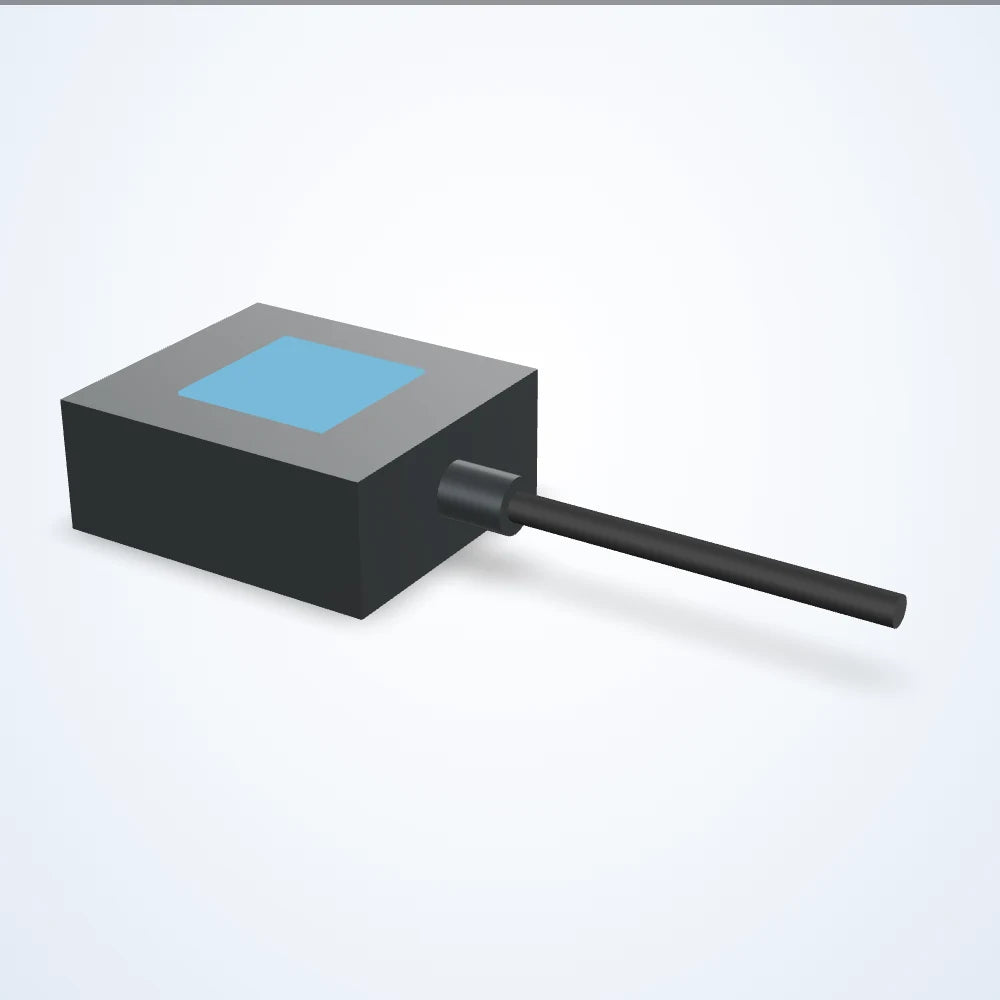

  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129)

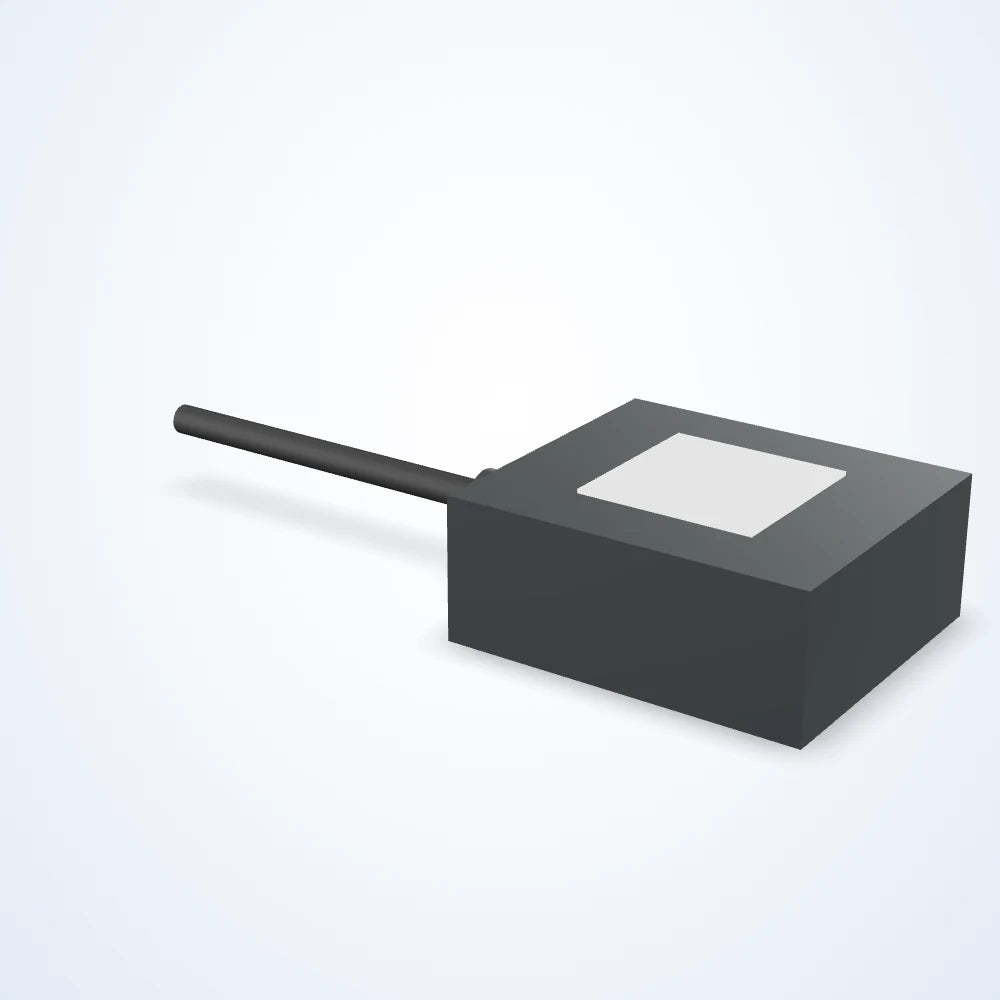

  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129) - view 2
  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129) - view 3
  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129) - view 4

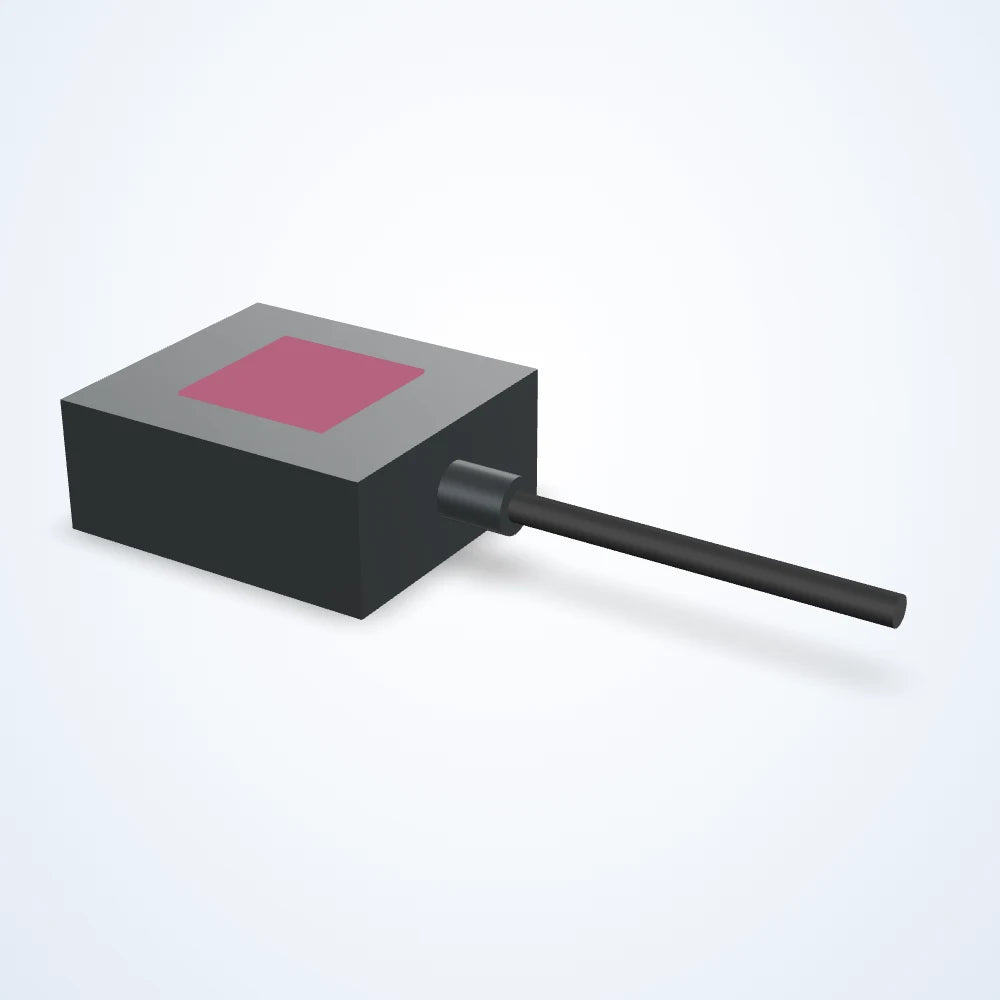

  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129) - view 5

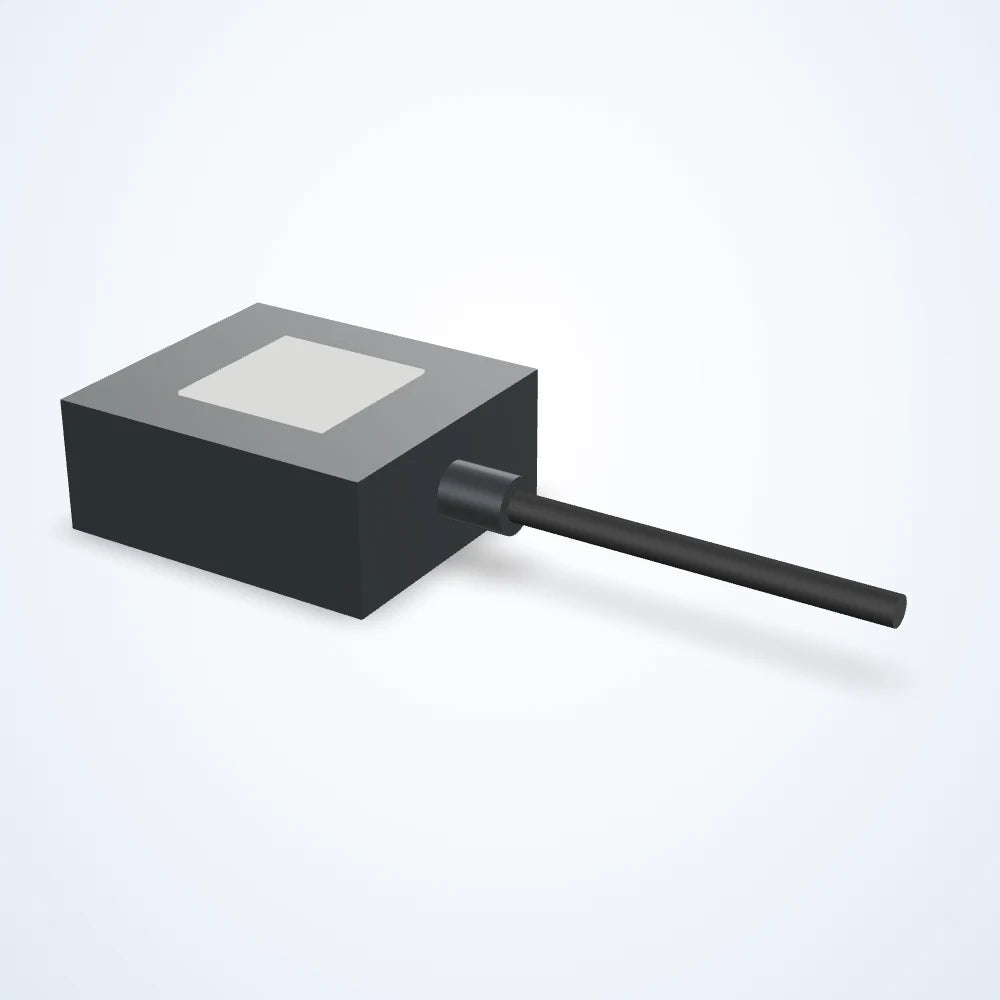

  • Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129) - view 6

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129)

Model LS-BKL-0129

  • ColourWhite, Red, Green, Infrared, Blue
  • Voltage24 VDC
  • TypeStandard
  • Wavelength850 nm
from $579.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 285 available

Colour
Driver included
Driver location
Intensity control
Strobe trigger input
Minimum overcurrent strobe duration (us)
Version

Configuration LS-BKL-0129-001 $839.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Backlight, 29.5-689.9 x 29.5-689.9 mm lit area (LS-BKL-0129)LS-BKL-0129

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. 24 VDC supply; connection: flying leads. Choose colour, lit length, length, width, driver included below (285 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0129
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)74 to 11953 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)1.8 to 286.9 (by configuration)
Maximum input power overcurrent strobe (W)125 / 150 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)20 / 60 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit width (mm)29.5 to 689.9 (by configuration)
Height (mm)23.9
HousingAluminum
MountingT-Slot Channel
