Backlights

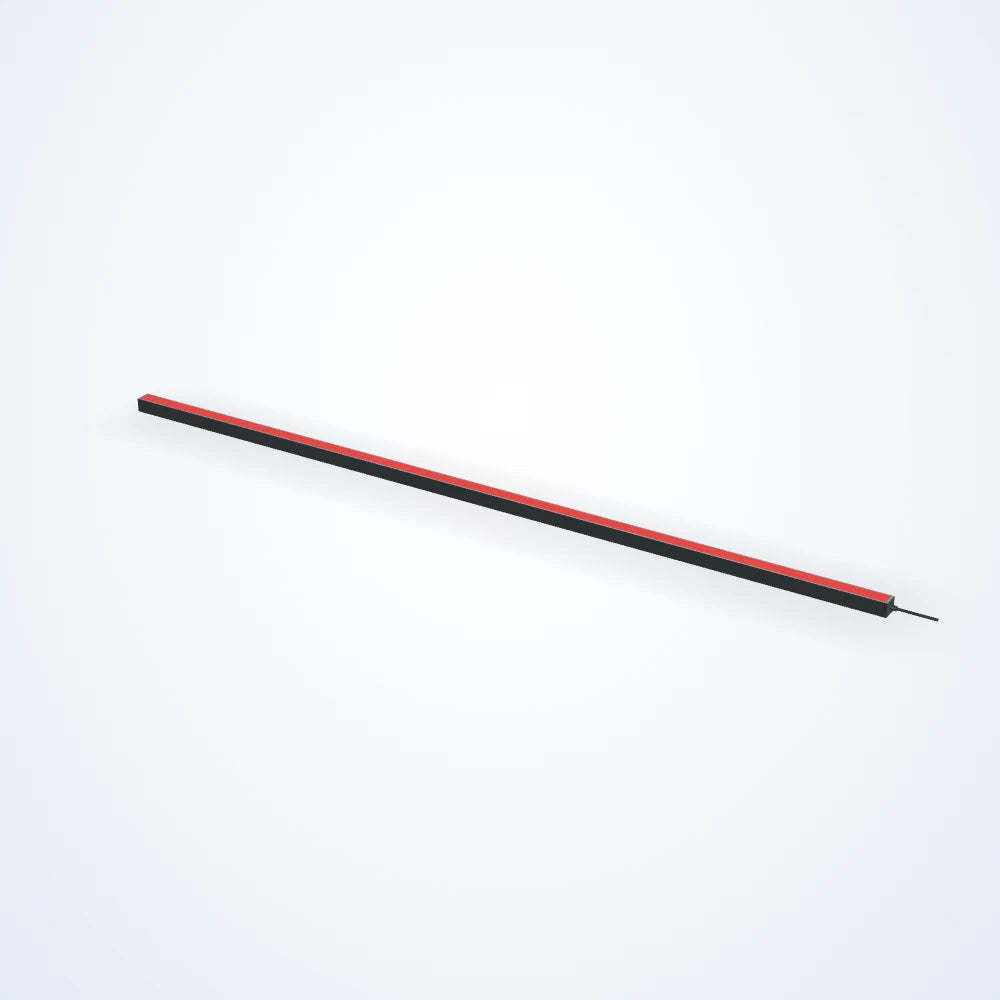

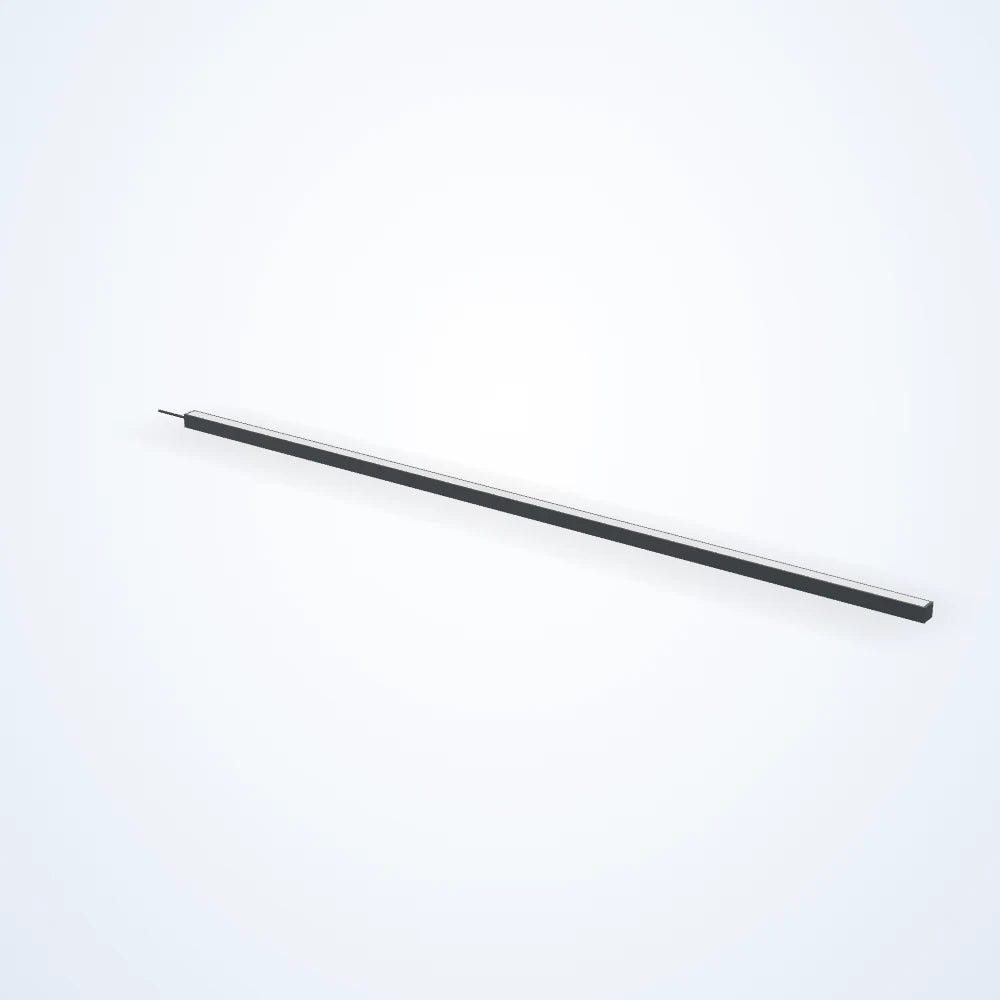

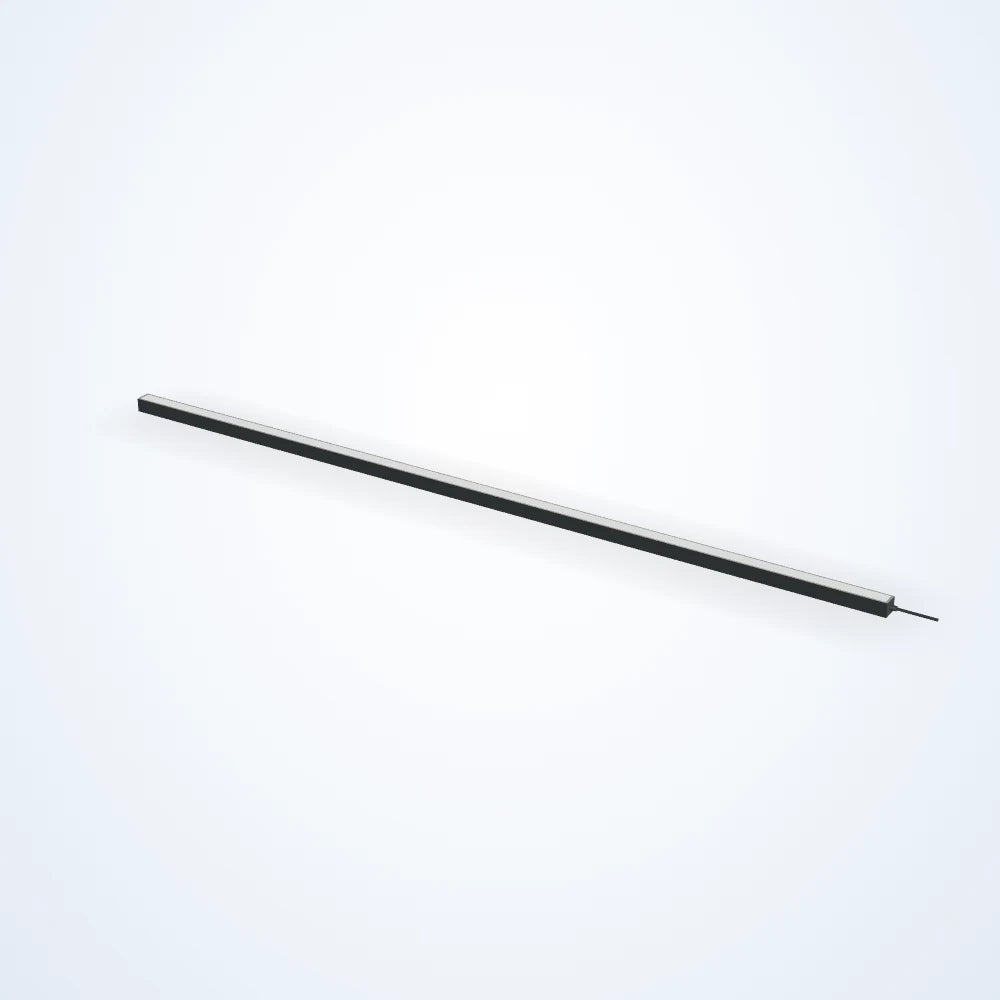

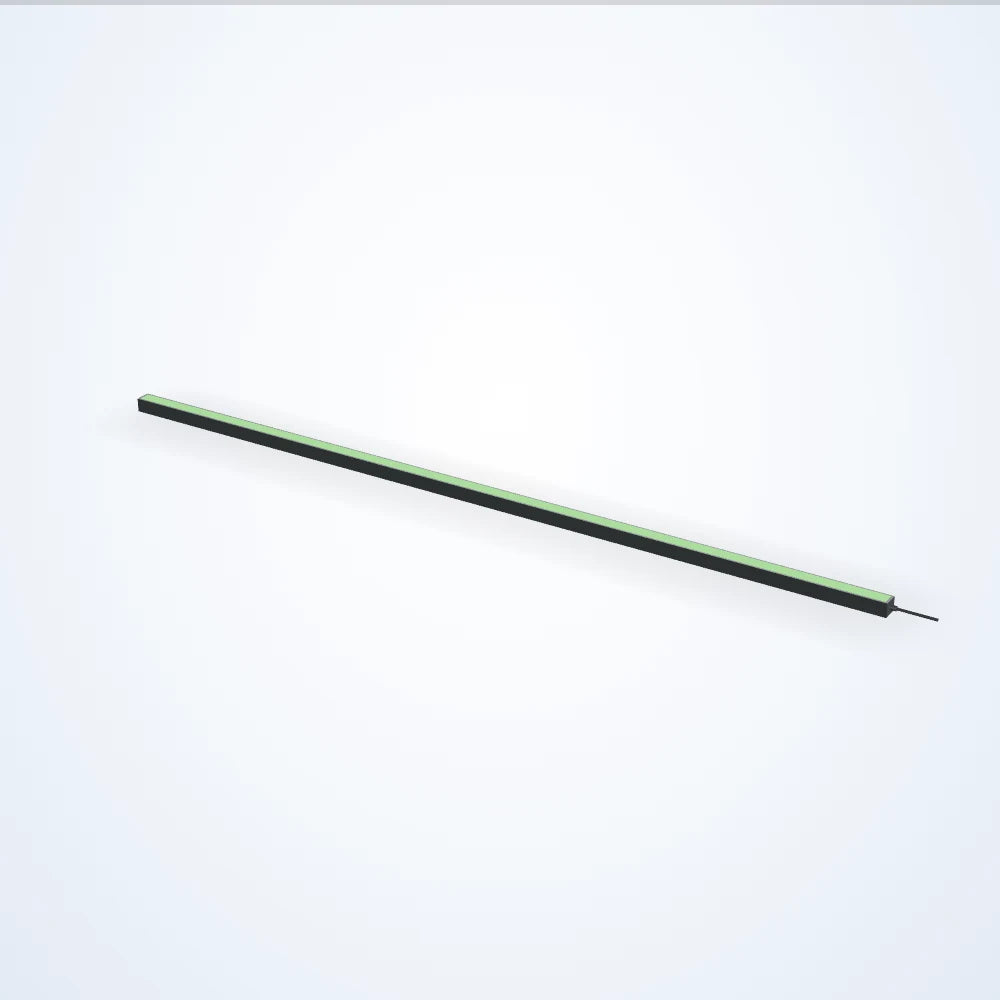

Backlight, 1764 x 25.4 mm lit area (LS-BKL-0117)
Model LS-BKL-0117
- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- TypeStandard
- Lit length1764 mm
from $1,649.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 8 available
Configuration LS-BKL-0117-1 $2,549.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1764 x 25.4 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (8 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0117 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 1397 / 2095 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 33.5 / 50.3 (by configuration) |
| Maximum input power overcurrent strobe (W) | 150 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 20 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical

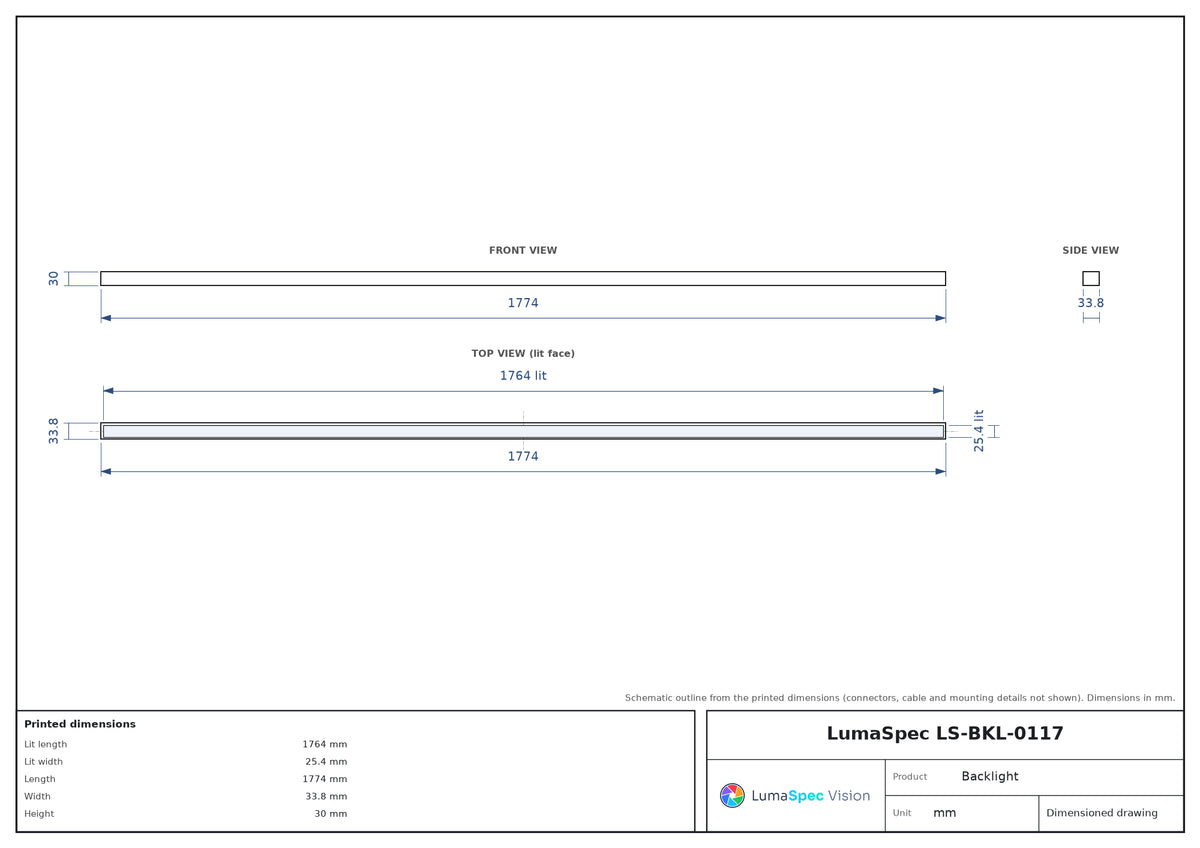

| Lit length (mm) | 1764 |
|---|---|
| Lit width (mm) | 25.4 |
| Length (mm) | 1774 |
| Width (mm) | 33.8 |
| Height (mm) | 30 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 30 mm high, Flying Leads series
See all 282 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0113 | 1663 x 25.4 mm | $1,579.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0114 | 1688 x 25.4 mm | $1,579.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0289 | 951.5 x 25.4 mm | $1,579.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0293 | 976.9 x 25.4 mm | $1,579.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0115 | 1713 x 25.4 mm | $1,619.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0116 | 1739 x 25.4 mm | $1,619.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0292 | 951.5 x 25.4 mm | $1,619.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0296 | 976.9 x 25.4 mm | $1,619.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0274 | 849.9 x 25.4 mm | $1,629.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0275 | 849.9 x 25.4 mm | $1,629.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0278 | 875.3 x 25.4 mm | $1,629.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0279 | 875.3 x 25.4 mm | $1,629.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0118 | 1790 x 25.4 mm | $1,649.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0297 | 1002 x 25.4 mm | $1,649.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0298 | 1028 x 25.4 mm | $1,649.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0119 | 1815 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0120 | 1840 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0282 | 900.7 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0283 | 900.7 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0286 | 926.1 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0287 | 926.1 x 25.4 mm | $1,689.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0299 | 1053 x 25.4 mm | $1,709.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0300 | 1078 x 25.4 mm | $1,709.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0121 | 1866 x 25.4 mm | $1,719.00 Quote | Built to order: ships in about 4-5 weeks | View |
