Backlights

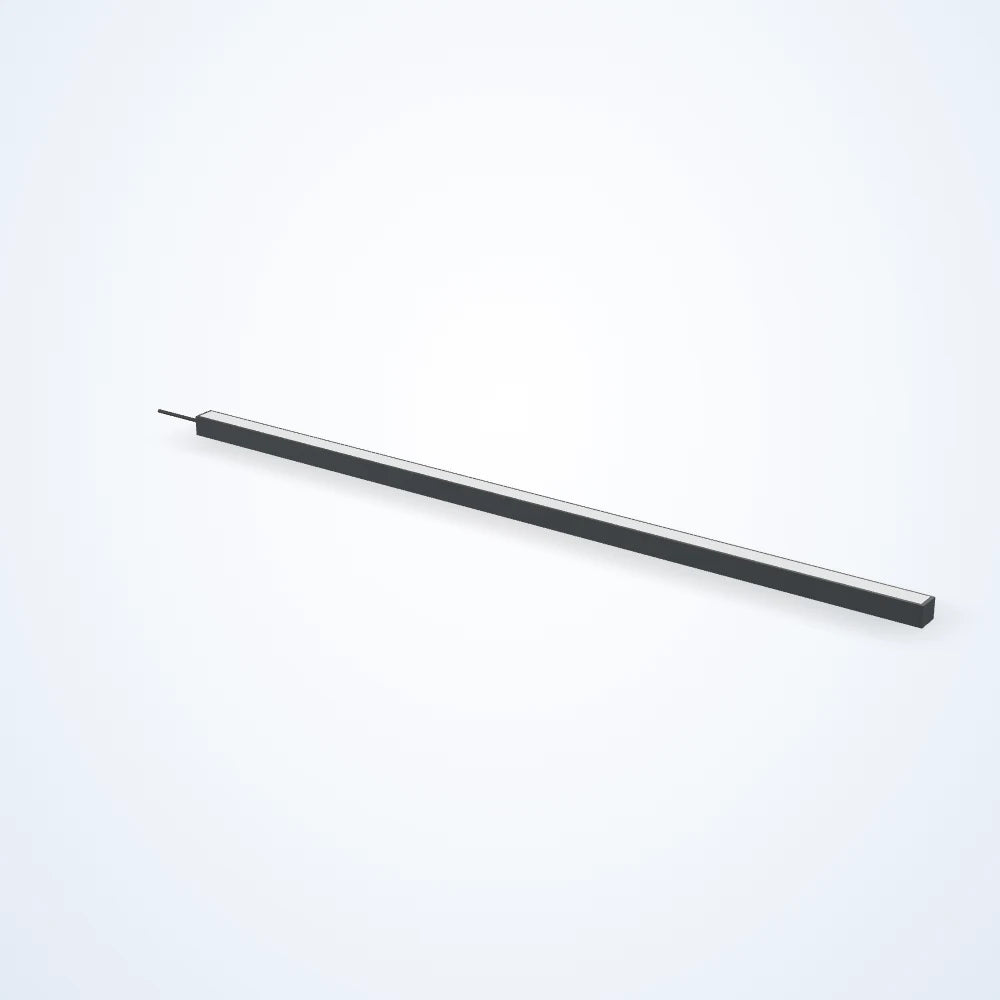

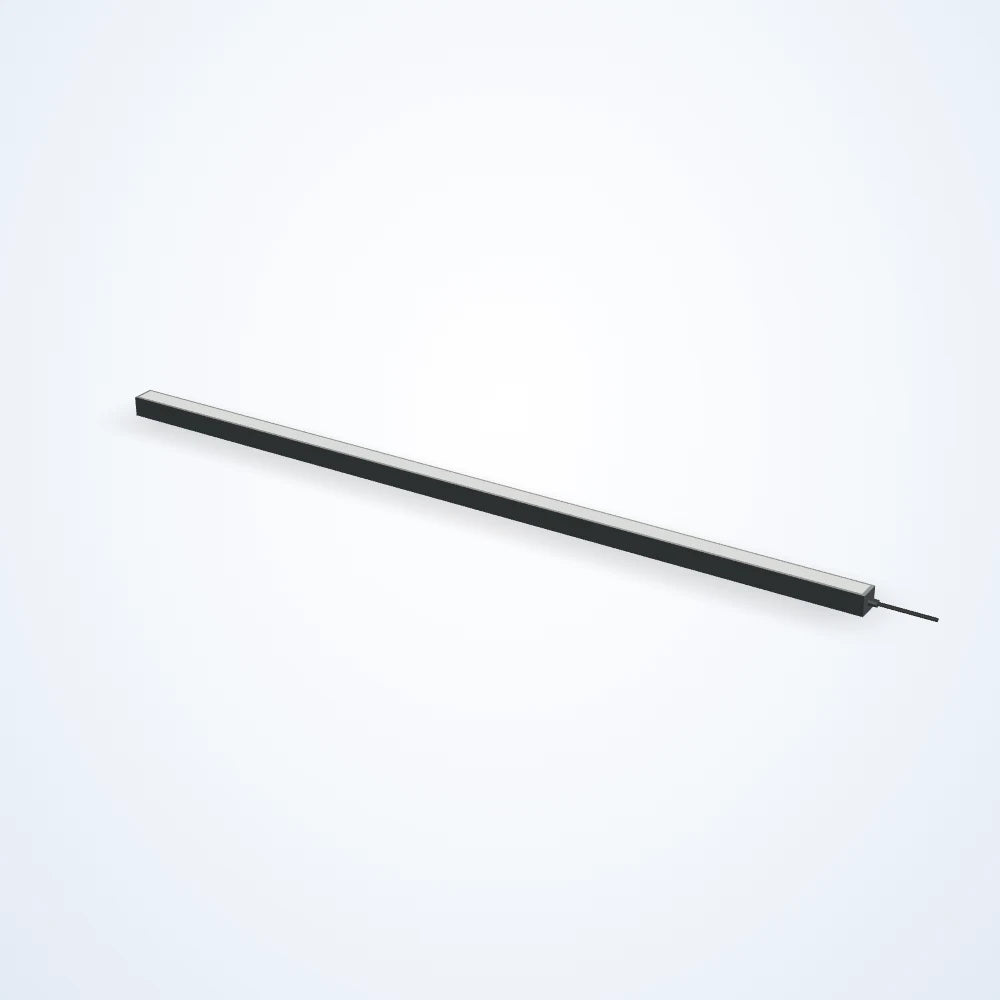

Backlight, 1180 x 25.4 mm lit area (LS-BKL-0094)
Model LS-BKL-0094

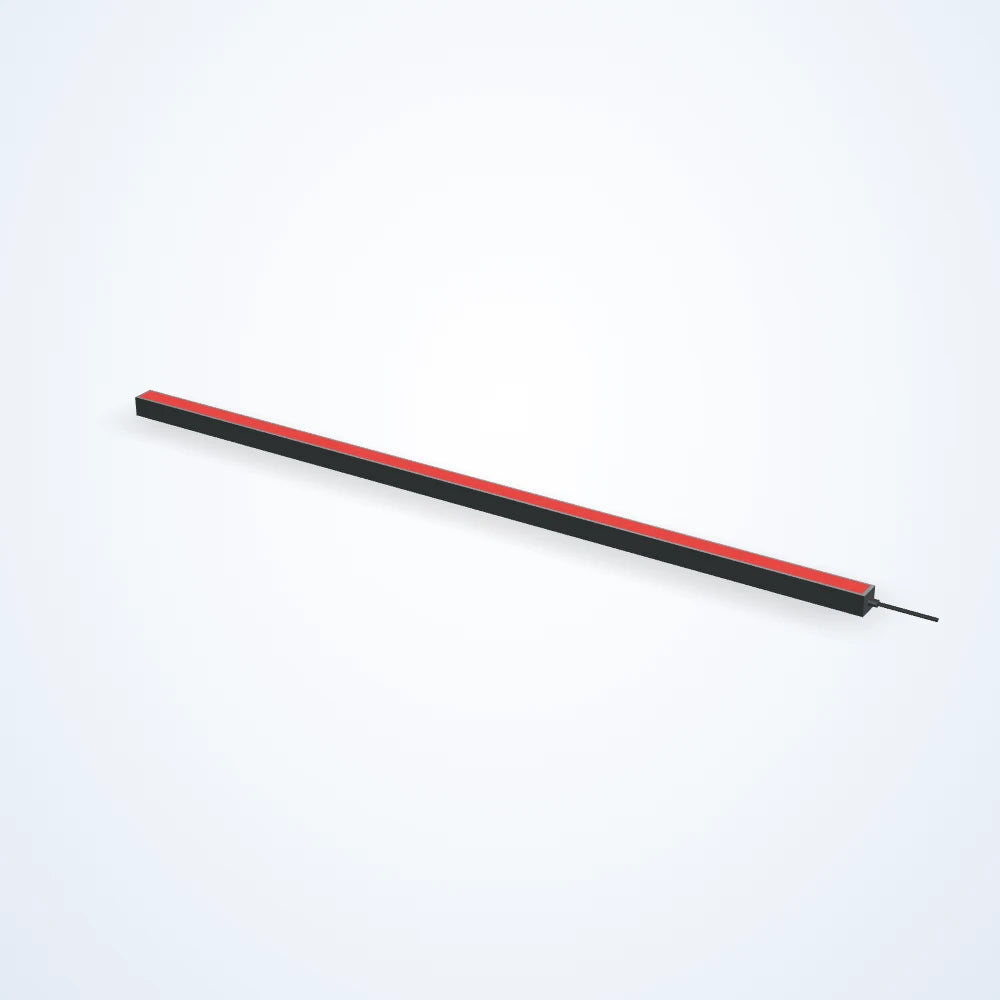

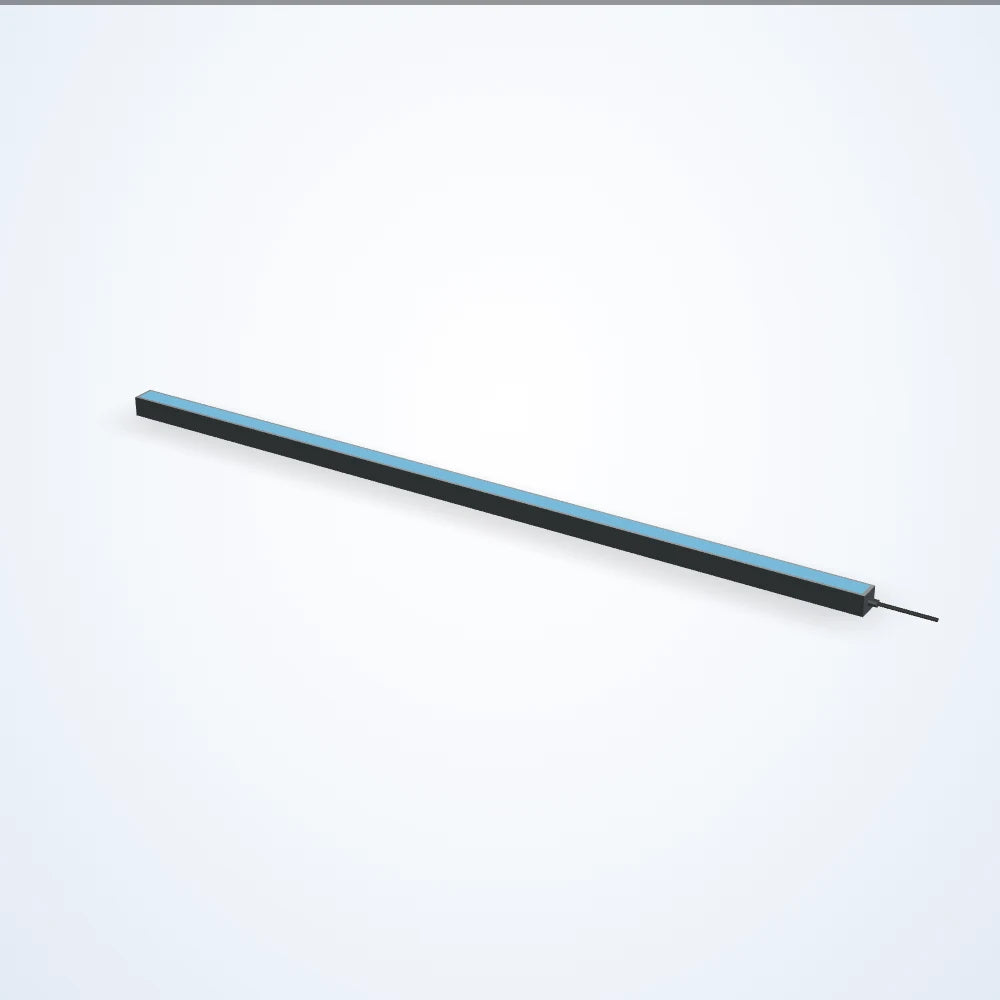

- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- TypeStandard
- Lit length1180 mm
from $1,219.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 20 available
Configuration LS-BKL-0094-01 $1,829.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1180 x 25.4 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (20 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0094 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 22.5 / 33.7 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 / 150 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 20 / 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical

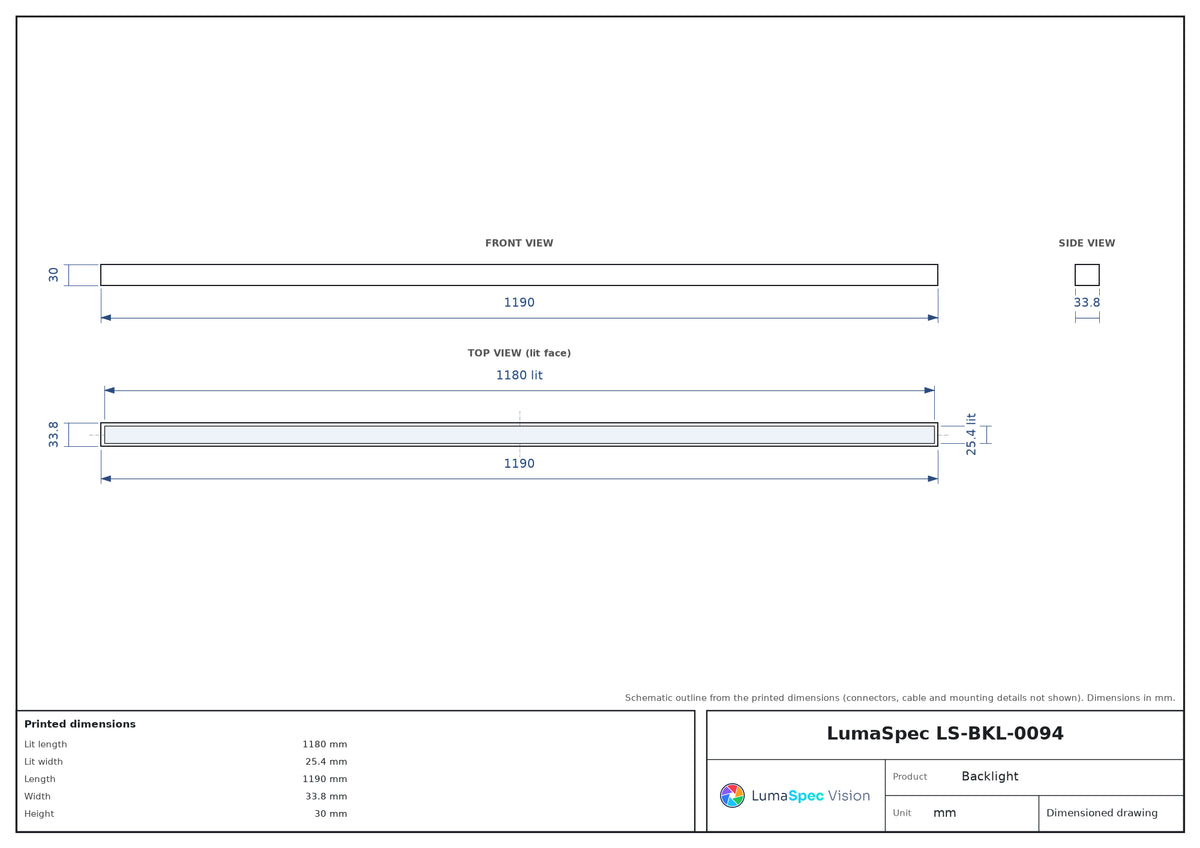

| Lit length (mm) | 1180 |
|---|---|
| Lit width (mm) | 25.4 |
| Length (mm) | 1190 |
| Width (mm) | 33.8 |
| Height (mm) | 30 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 30 mm high, Flying Leads series
See all 282 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0215 | 468.9 x 25.4 mm | $1,149.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0233 | 595.9 x 25.4 mm | $1,159.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0237 | 621.3 x 25.4 mm | $1,159.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0091 | 1104 x 25.4 mm | $1,179.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0092 | 1129 x 25.4 mm | $1,179.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0236 | 595.9 x 25.4 mm | $1,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0240 | 621.3 x 25.4 mm | $1,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0218 | 494.3 x 25.4 mm | $1,209.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0219 | 494.3 x 25.4 mm | $1,209.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0222 | 519.7 x 25.4 mm | $1,209.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0223 | 519.7 x 25.4 mm | $1,209.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0093 | 1155 x 25.4 mm | $1,219.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0241 | 646.7 x 25.4 mm | $1,219.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0245 | 672.1 x 25.4 mm | $1,219.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0095 | 1205 x 25.4 mm | $1,249.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0096 | 1231 x 25.4 mm | $1,249.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0244 | 646.7 x 25.4 mm | $1,259.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0248 | 672.1 x 25.4 mm | $1,259.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0226 | 545.1 x 25.4 mm | $1,269.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0227 | 545.1 x 25.4 mm | $1,269.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0230 | 570.5 x 25.4 mm | $1,269.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0231 | 570.5 x 25.4 mm | $1,269.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0249 | 697.5 x 25.4 mm | $1,279.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0253 | 722.9 x 25.4 mm | $1,279.00 Quote | Built to order: ships in about 4-5 weeks | View |
