Backlights

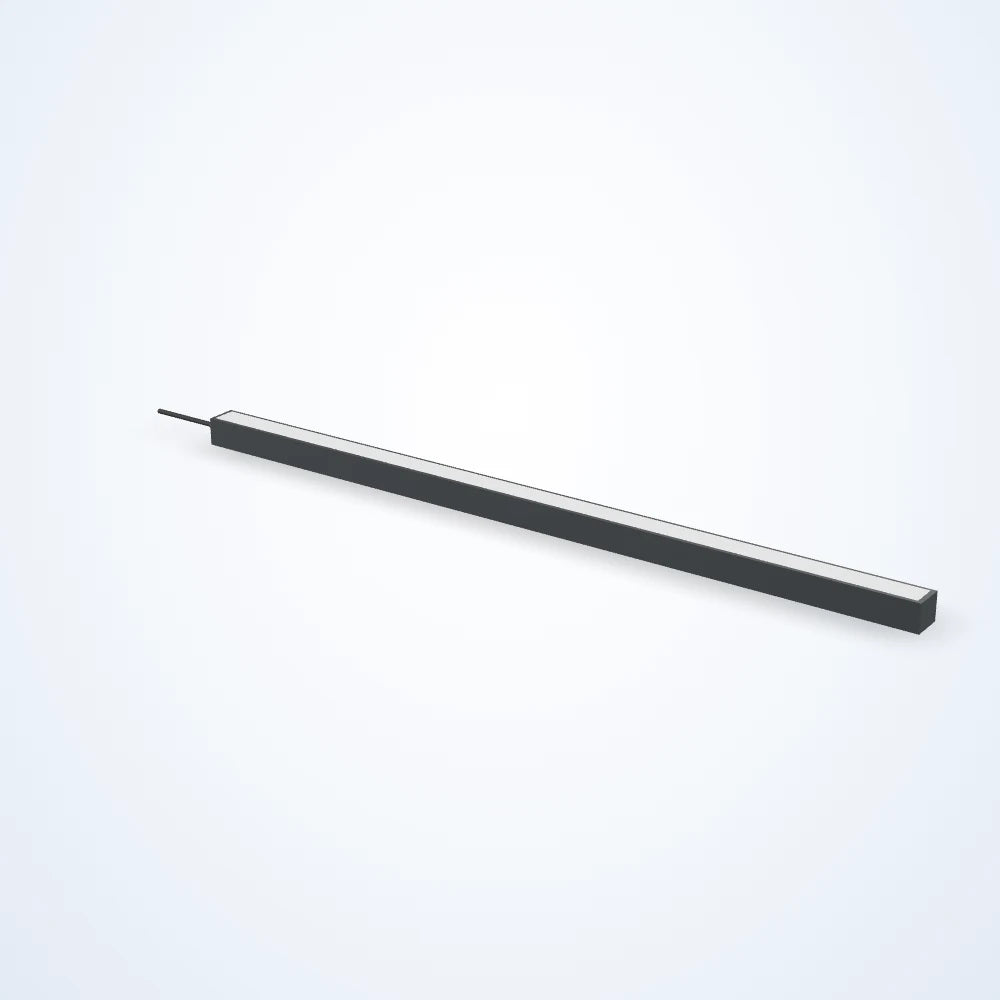

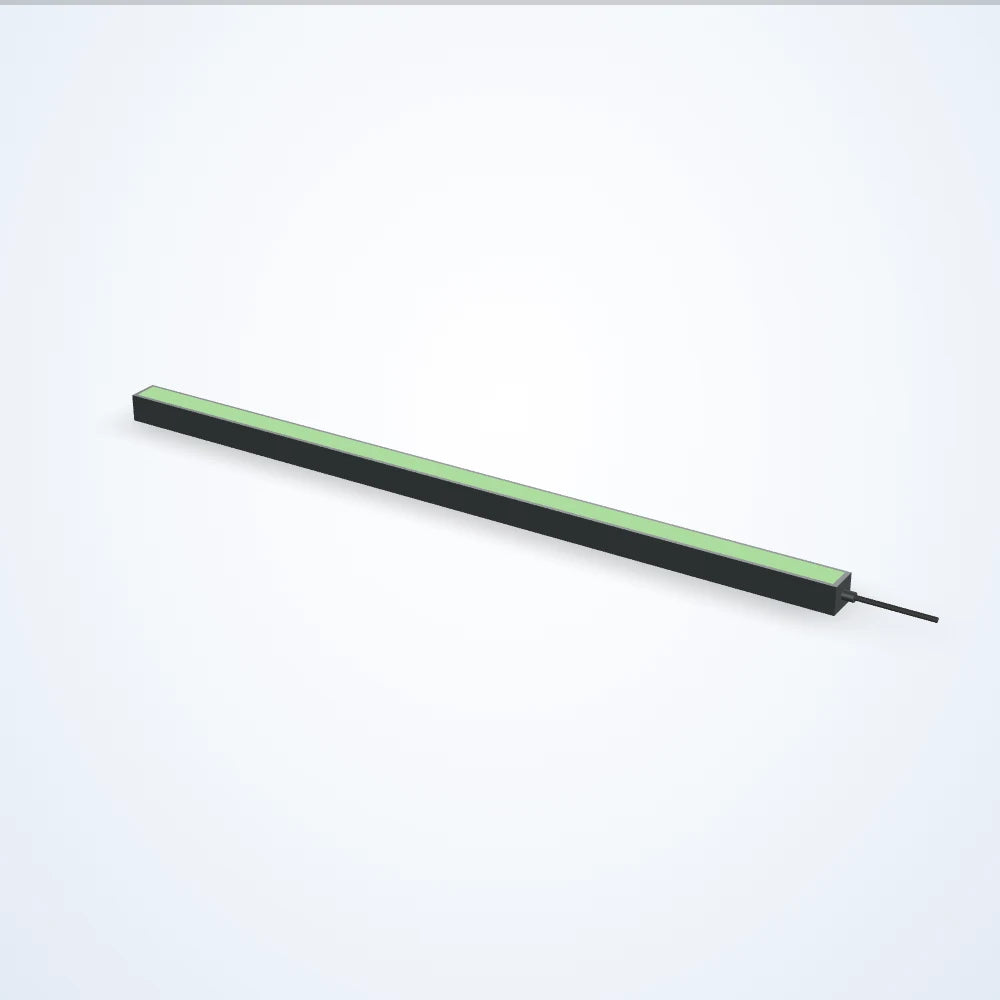

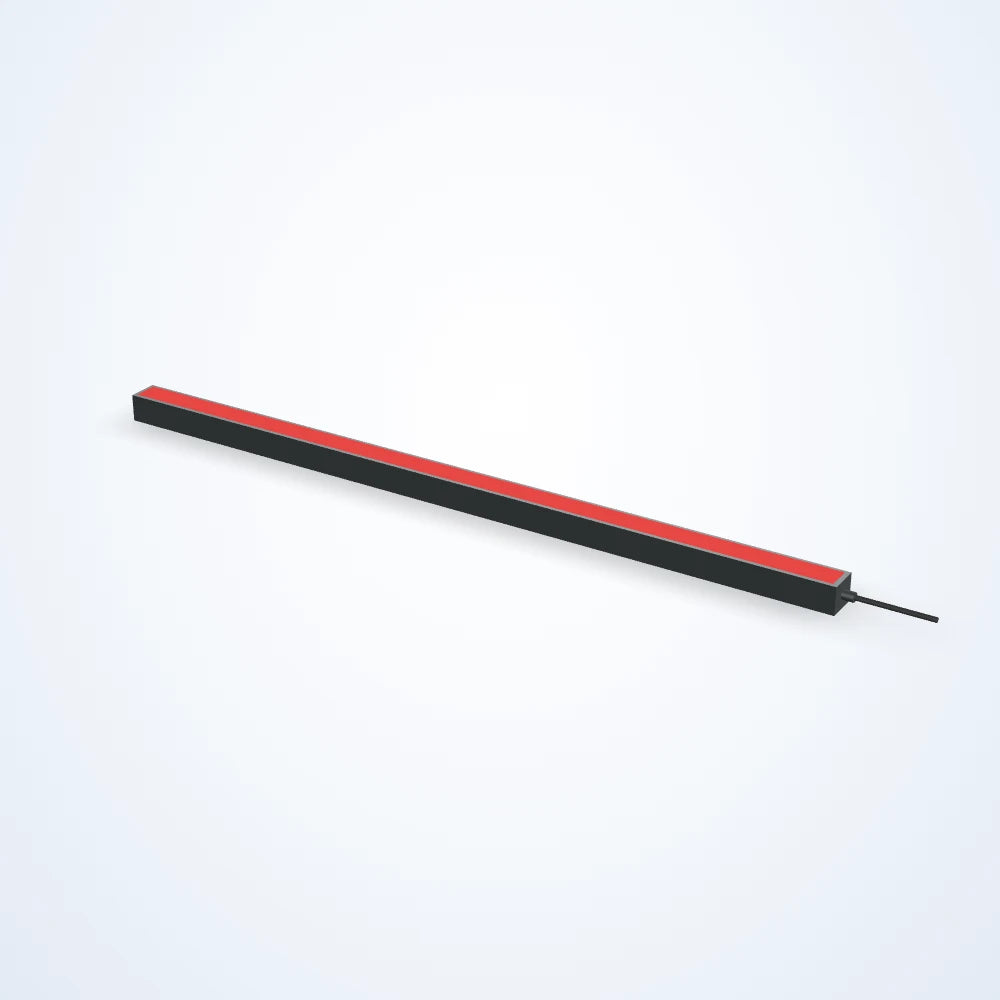

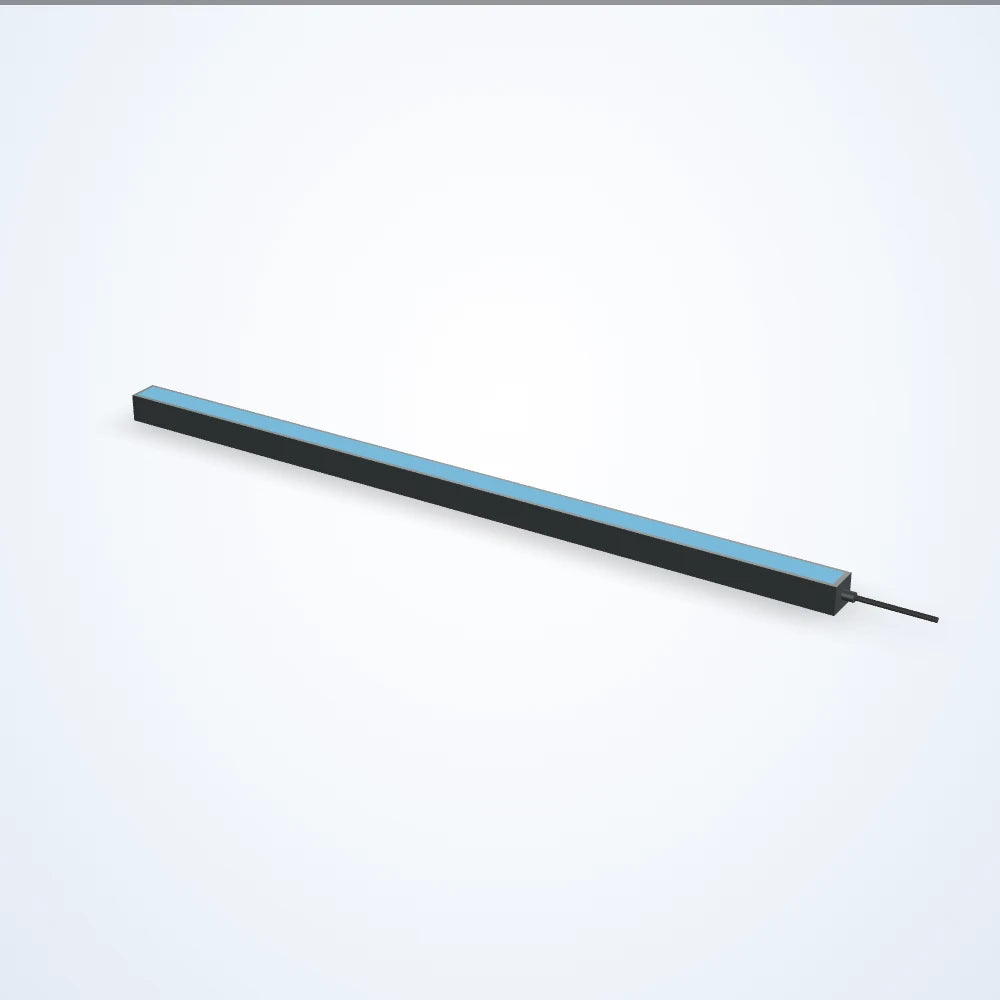

Backlight, 824.5 x 25.4 mm lit area (LS-BKL-0080)
Model LS-BKL-0080
- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- TypeStandard
- Lit length824.5 mm
from $959.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 16 available
Configuration LS-BKL-0080-01 $1,399.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 824.5 x 25.4 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (16 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0080 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 657 / 985 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 15.8 / 23.7 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical

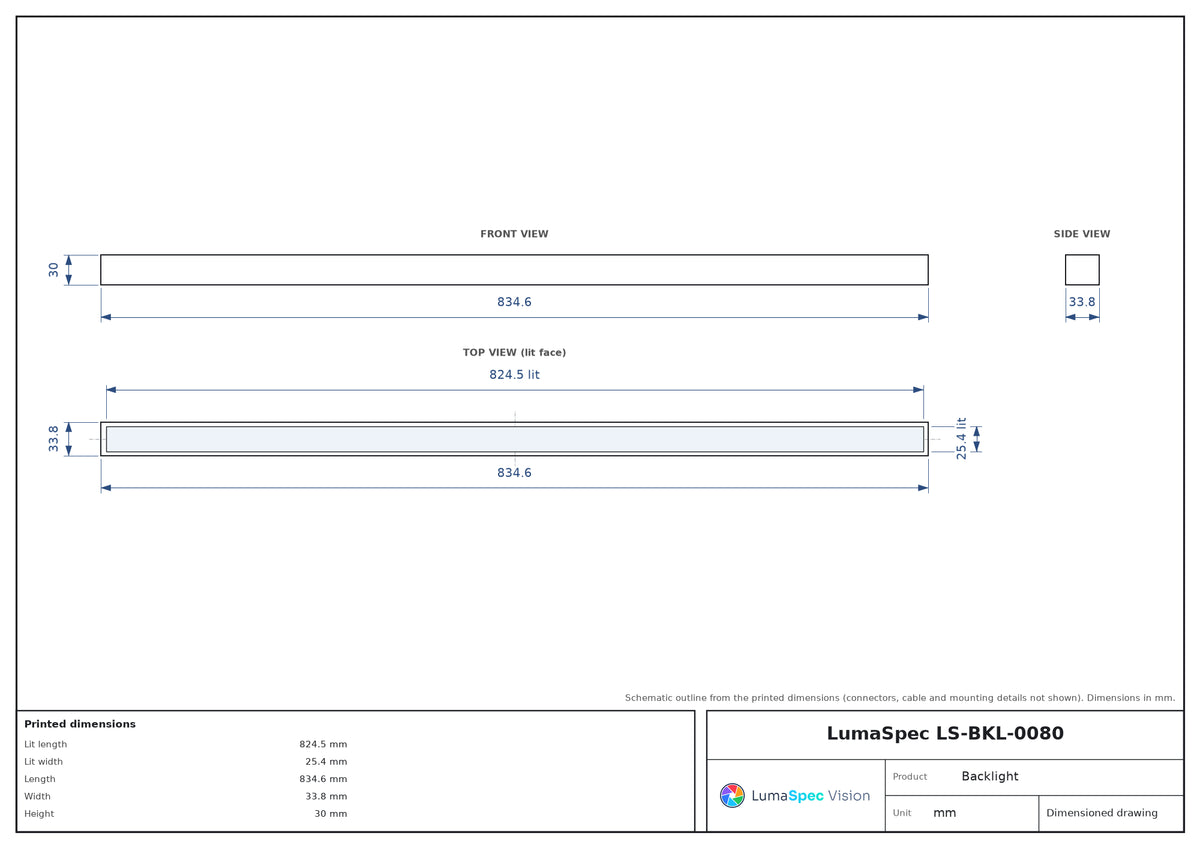

| Lit length (mm) | 824.5 |
|---|---|
| Lit width (mm) | 25.4 |
| Length (mm) | 834.6 |
| Width (mm) | 33.8 |
| Height (mm) | 30 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 30 mm high, Flying Leads series
