Backlight, 1066 x 24.6 mm lit area (LS-BKL-0039)
Model LS-BKL-0039
- ColourWhite
- Voltage24 VDC
- WavelengthWHITE
- TypeStandard
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 2 available
Configuration LS-BKL-0039-1 $6,489.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1066 x 24.6 mm; 24 VDC supply; connection: flying leads. Choose driver included, driver location, intensity control, operating modes below (2 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0039 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Colour | WHITE |
|---|---|
| Diffused | Not Diffused |
| Wavelength | WHITE |
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 5282 / 7043 (by configuration) |
| Maximum input power constant on (W) | 126.8 / 169 (by configuration) |
Mechanical

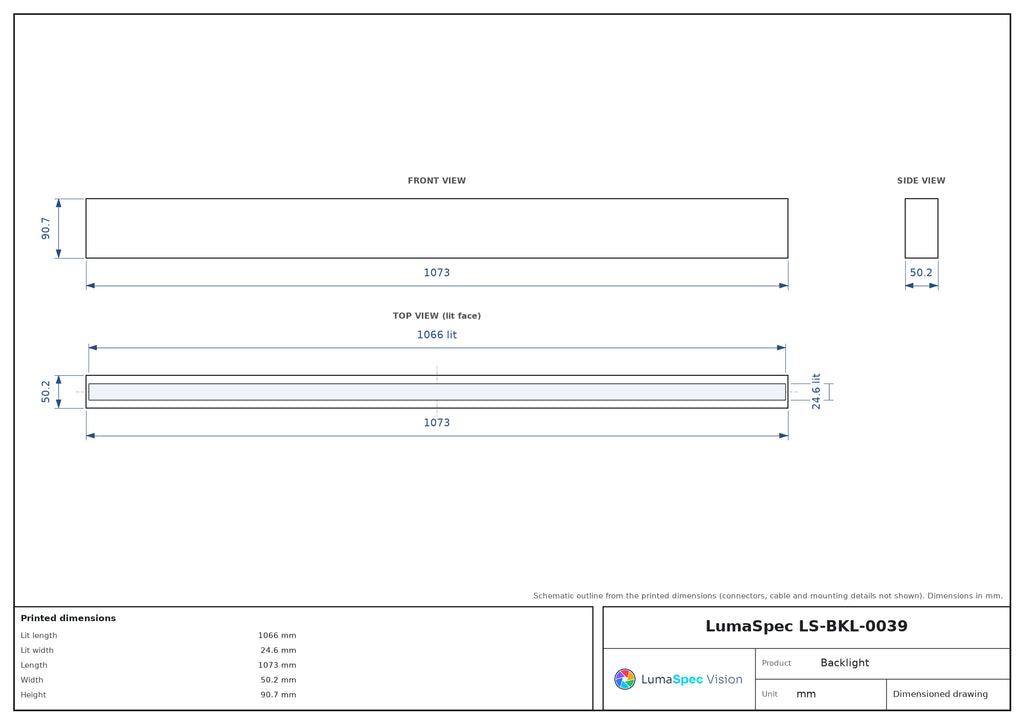

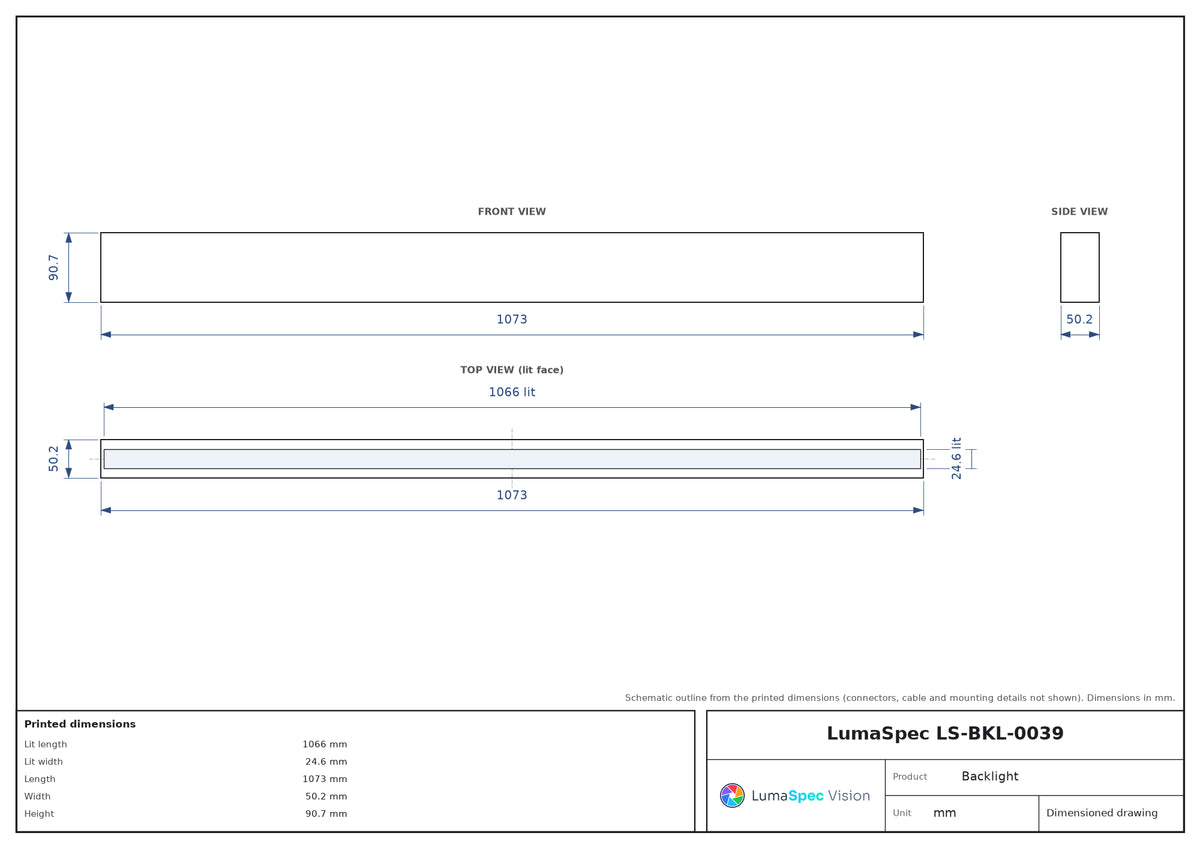

| Lit length (mm) | 1066 |
|---|---|
| Lit width (mm) | 24.6 |
| Length (mm) | 1073 |
| Width (mm) | 50.2 |
| Height (mm) | 90.7 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, 90.7 mm high, Flying Leads (S03) series
See all 17 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0032 | 77.2 x 24.6 mm | $929.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0033 | 152.4 x 24.6 mm | $1,199.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0034 | 304.8 x 24.6 mm | $2,099.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0035 | 457.2 x 24.6 mm | $3,009.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0036 | 609.6 x 24.6 mm | $3,899.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0037 | 762 x 24.6 mm | $4,789.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0038 | 913.1 x 24.6 mm | $5,649.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0040 | 1218 x 24.6 mm | $7,319.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0041 | 1370 x 24.6 mm | $8,129.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0042 | 1522 x 24.6 mm | $8,929.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0043 | 1674 x 24.6 mm | $9,709.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0044 | 1827 x 24.6 mm | $10,469.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0045 | 1979 x 24.6 mm | $11,229.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0046 | 2131 x 24.6 mm | $11,959.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0047 | 2283 x 24.6 mm | $12,669.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0048 | 2435 x 24.6 mm | $13,369.00 Quote | Built to order: ships in about 4-5 weeks | View |
