Board-level cameras

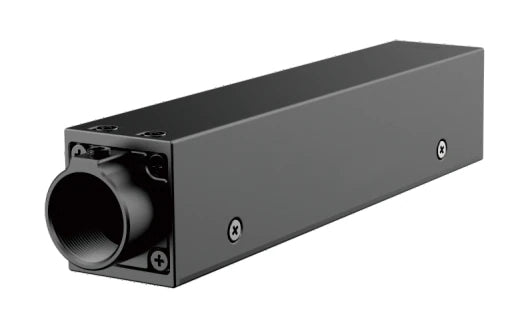

Miniature industrial camera, 1.3 MP, GigE, Colour/Mono (LS-BCM-0061)
Model LS-BCM-0061
- Speed1280 x 1024@91FPS
- Lens mountM12
- Pixel size4μm BSI
- Sensor format1/2.7"
$209.00
Ships in 2-3 weeks
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Miniature industrial camera supporting M12 lenses with an overall section size of 20 x 18 mm, colour or black-and-white, Gigabit network interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0061 |
|---|---|
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Frame cache | 128MB |
| User-defined data area | 2KB |
| Driver | DirectShow component, Halcon special component, LabVIEW special driver, OCX component, Twain component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Sensitivity | 8 V/Lux.s |
Sensor and imaging
| Resolution @ frame rate | 1280 x 1024@91FPS |
|---|---|
| Pixel size | 4μm BSI |
| Pixel bit depth | 8bit |
| Sensor | 1/2.7" CMOS |
| Maximum gain (multiple) | 32 |
| Exposure time range (ms) | 0.019~79 |
Interfaces and I/O
| GPIO | 1 way flash output |
|---|---|
| Visual standards protocol | GigE Vision V1.2, GenICam |
| Data interface | RJ45 Gigabit Ethernet interface, downward compatible with 100M network |
| Video output format | raw8 |
Light
| Mono / colour | Colour/Mono |
|---|
Environment and compliance
| Operating temperature @ humidity | 0~50℃ @ 20%~80% (no condensation) |
|---|---|
| Storage temperature @ humidity | 30~60℃ @ 20%~95% (no condensation) |
Computing
| Operating system | WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
|---|
Electrical
| Power supply | 12~24V |
|---|---|
| Power | <2.5W |
| Voltage | 12~24 V DC |
Mechanical
| Lens mount | M12 |
|---|---|

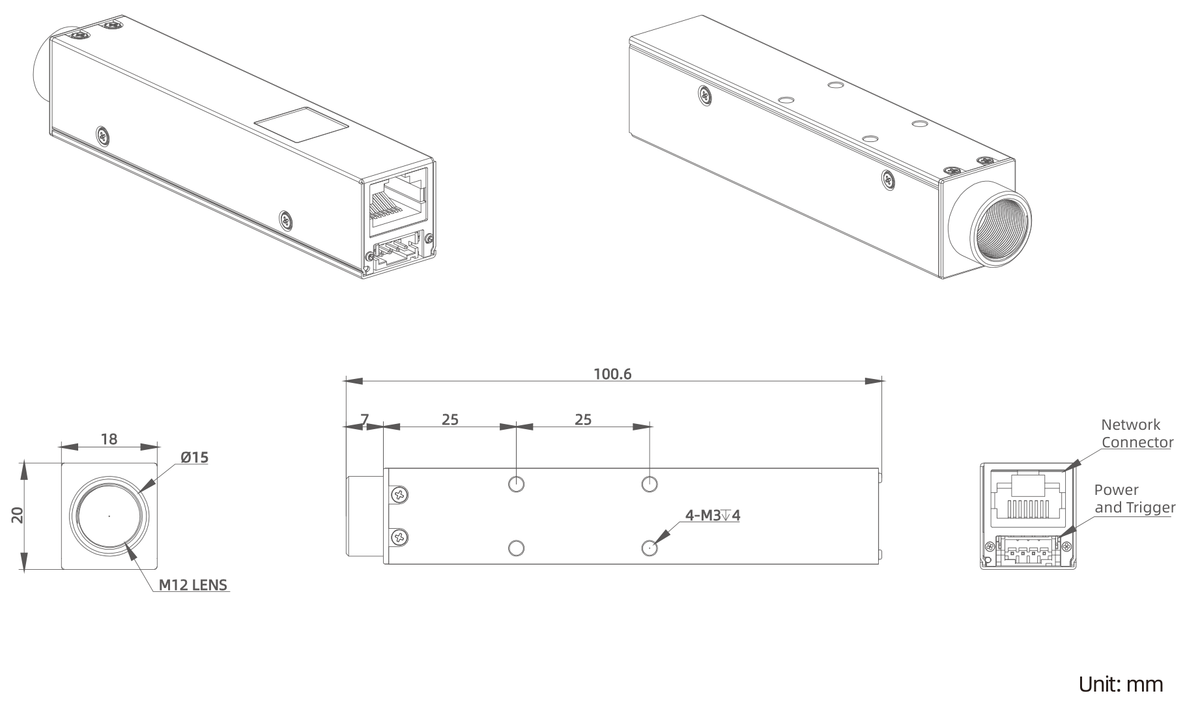

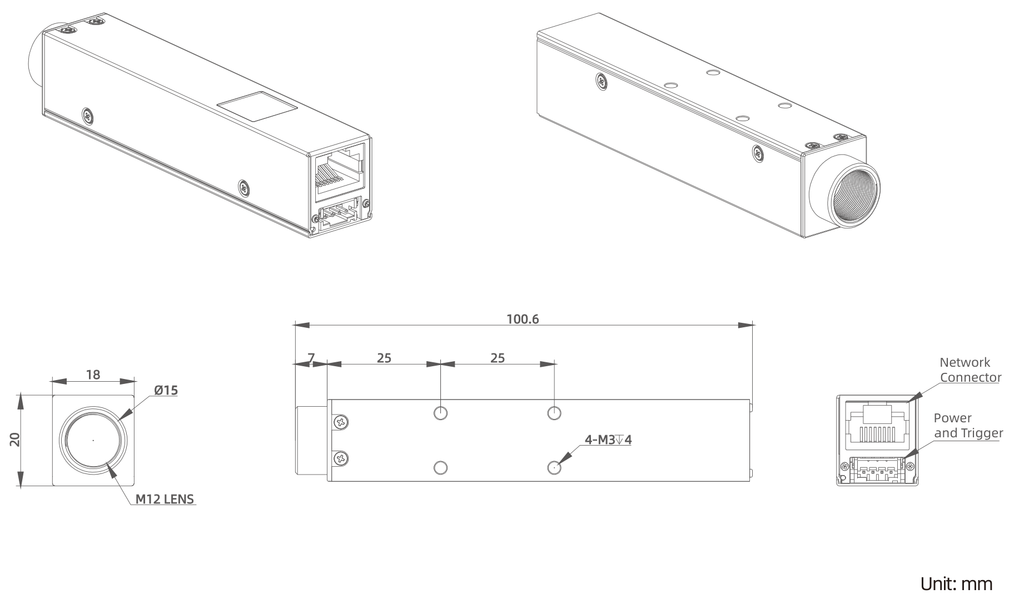

| Overall dimension | 18 x 20 x 100mm (without lens holder) |
| Weight | <100g |
