Pen mini camera, 2.3 MP, GigE, Colour/Mono (LS-BCM-0060)
Model LS-BCM-0060
- Speed1920 x 1200@52FPS
- Lens mountM12
- Pixel size3.0μm x 3.0μm
- InterfaceGigE
$209.00
Ships in 2-3 weeks
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

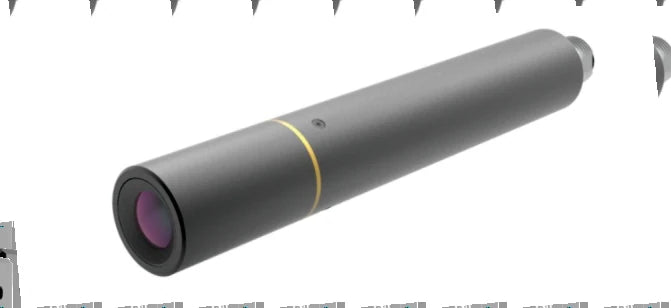

Pen-shaped mini industrial camera with integrated M12 lens, diameter only 20 mm, and Gigabit network interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0060 |
|---|---|
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Frame buffer | 128MB |
| User-defined data area | 2KB |
| Driver | Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Object distance (standard product) | 100mm |
| Sensitivity | Color: 3.1V/lux x s; Mono: 3.6V/lux x s |
Optics
| Field of view (standard product) | 15.8 x 7mm |
|---|
Sensor and imaging
| Resolution @ frame rate | 1920 x 1200@52FPS |
|---|---|
| Pixel size | 3.0μm x 3.0μm |
| Pixel bit depth | 8bit |
| Maximum gain (multiple) | 16 |
| Exposure time range (ms) | 0.014~917.5 |
Interfaces and I/O
| GPIO | 1 way flash output |
|---|---|
| Vision standard protocol | GigE Vision V1.2, GenICam |
| Data interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network |
Light
| Mono / colour | Colour/Mono |
|---|
Environment and compliance
| Working temperature @ humidity | 0~50℃ @ 20%~80% (no condensation) |
|---|---|
| Storage temperature @ humidity | -30~60℃ @ 20%~95% (no condensation) |
Computing
| Operating system | WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
|---|
Electrical
| Power supply | 12V |
|---|---|
| Power | <2.66W |
| Voltage | 12 V DC |
Mechanical
| Lens mount | M12 x 0.5 |
|---|---|

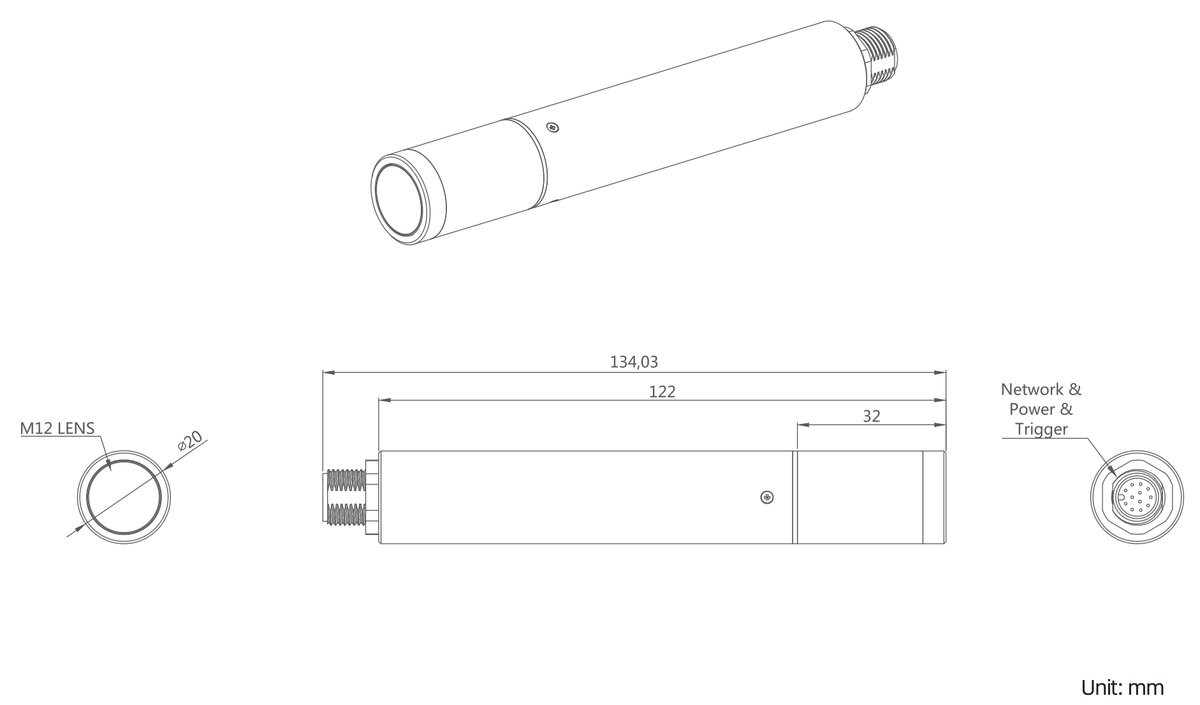

| Dimensions | 20 x 122mm (excluding back-end interface size) |
| Weight | <100g |
