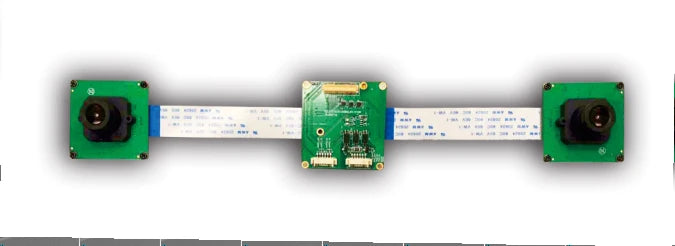

Representative photo of this series

Board-level cameras

Binocular camera / module, 1.3 MP, USB3, Colour/Mono, 1280 x 1024@123FPS resolution (LS-BCM-0043)

Model LS-BCM-0043

SensorCMOS
InterfaceUSB (bus powered)
Speed1280 x 1024@123FPS
Lens mountM12
Pixel size4.8μm x 4.8μm

$179.00

Ships in 2-3 weeks

0.59 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Binocular camera series with higher module integration than two ordinary cameras: automatic binocular synchronization eliminates synchronous wiring, two on-board RS232 sets can control other components, and the modules output lossless grayscale images (no YUV conversion) over USB3.0 or GigE, with manual control of exposure, gain and other parameters; suitable for medium and advanced 3D applications.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BCM-0043
Acquisition mode	Continuous/soft trigger/hard trigger
Frame cache	128M Bytes
User-defined data area	2K Bytes
Sensitivity	7.3 V/lux-s 540nm

Sensor and imaging

Sensor type	CMOS
Shutter	Global
Pixels	1.3MP
Shutter method	Global
Resolution @ frame rate	1280 x 1024@123FPS
Pixel size	4.8μm x 4.8μm
Pixel bit depth	8bit
Maximum gain (multiple)	16.5
Exposure time range (ms)	0.0076-1001.8
Minimum exposure	0.0076ms
Sensor model	PYTHON

Interfaces and I/O

GPIO	1 channel trigger input, 1 channel flash control output; 2-way TTL serial port; 1 channel GPIO output
Video output format	Colour: Bayer 8bit; Mono: Mono 8bit
Interface	USB (bus powered)

Light

Colour	Colour/Mono
Mono / colour	Colour/Mono

Electrical

Power supply	5V, USB bus power supply
Power	<3W
Voltage	5V, USB bus power supply

Mechanical

Lens mount	M12 lens holder can be installed

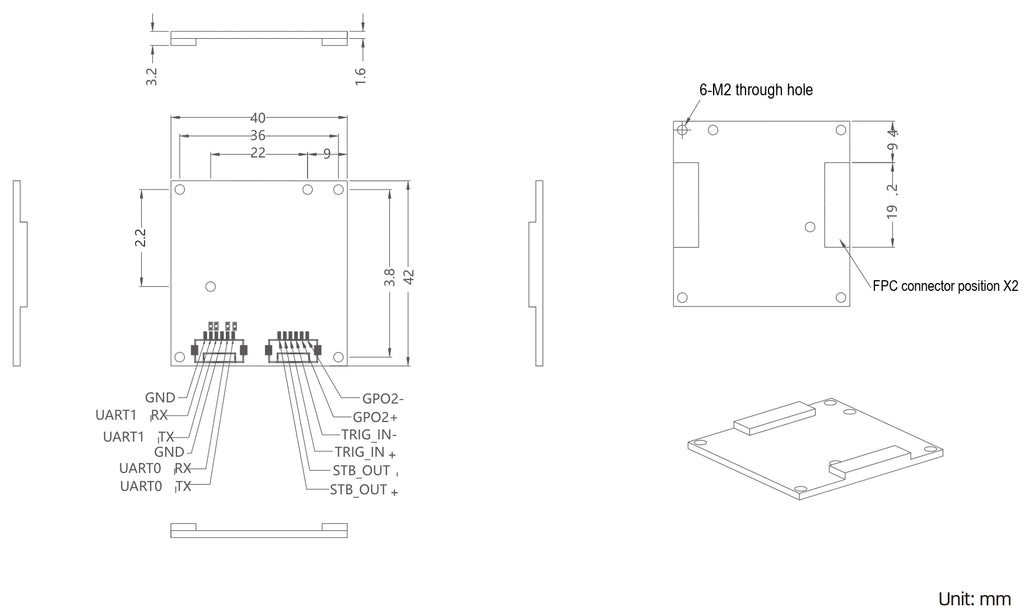

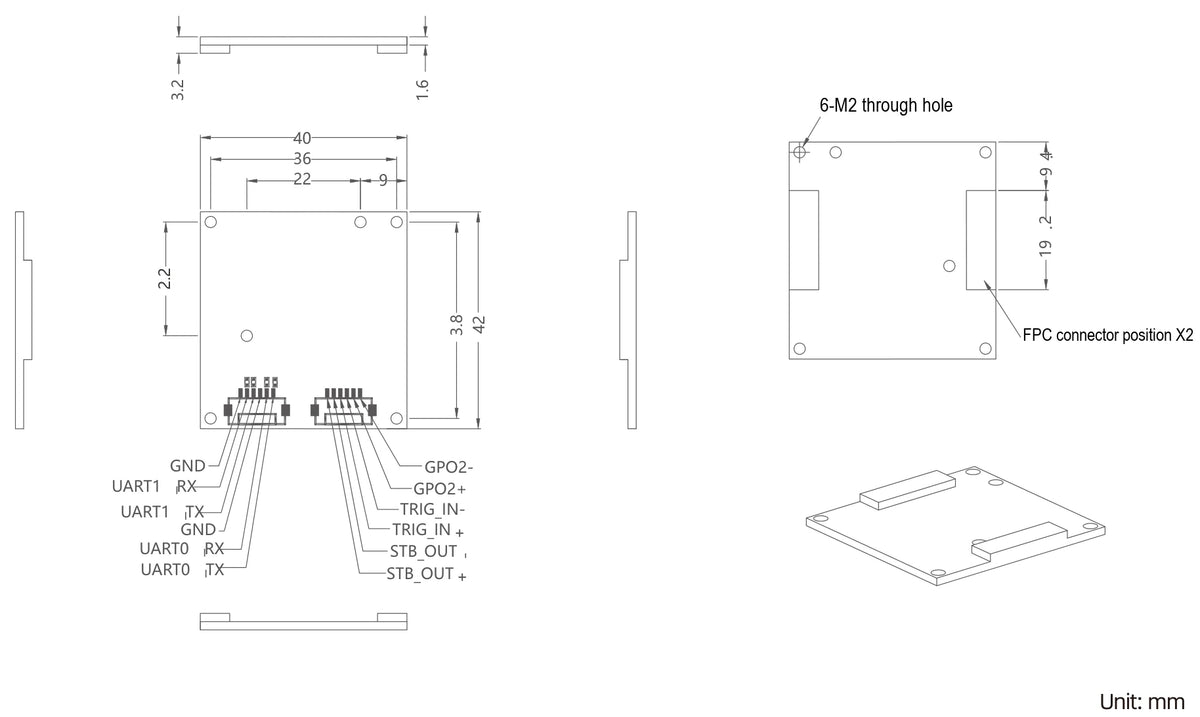

Overall dimension	Mainboard x1: 42 x 42mm; sensor board x2: 38 x 38mm; single side of flat cable: 200mm (adjustable as required)
Weight	<75g
Target size	1/2"

Downloads

Datasheet (PDF)LS-BCM-0043 · 608 KB

Features

FPC flexible cable length can be freely changed, and the baseline can be flexibly adjusted
Supports lossless grayscale and raw data format output, non-YUV format
Sensor board size can be customized to match different structural requirements
Continuous, soft trigger and hard trigger modes; binocular images synchronized automatically, synchronization error at microsecond level
Special SDK and driver (non-UVC), supports Windows, Linux and ARM Linux, compatible with Apple Mac OS and the single camera product SDK
0.3MP to 65 million pixels, CMOS and CCD supported
Supports Halcon, VisionPro, OpenCV and other visual software
USB3.0 and GigE transmission interfaces optional, other interfaces can be customized
Working temperature can support -30~60 degrees; IP67 protective shell can be customized
Module reserves 2 channels of RS232 interface, 1 channel of GPIO, 1 channel of flash output and 1 channel hard trigger input; custom accepted

Applications

3D applications
