Bar lights
125 x 30 mm Ultraviolet light (LS-BAR-1359)
Model LS-BAR-1359
- ColourUV
- Emitting area125 x 30 mm
- Voltage24 V
- Power6.0 W
- WavelengthUV: 365-405 nm
$249.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The Ultraviolet light consists of particles or chip LED arrays. The 365-410nm wavelength is available. The shape and illumination angle can be customized at the same time. For example, ring light, bar light, bottom back light, shadowless dome light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1359 |
|---|---|
| Customizable | shape, combined light, multi-area control, colour and colour temperature, cable length, installation method, emitting angle |
| Note | UV & IR light can be customized as required. |
| Light type | Bar |
Interfaces and I/O

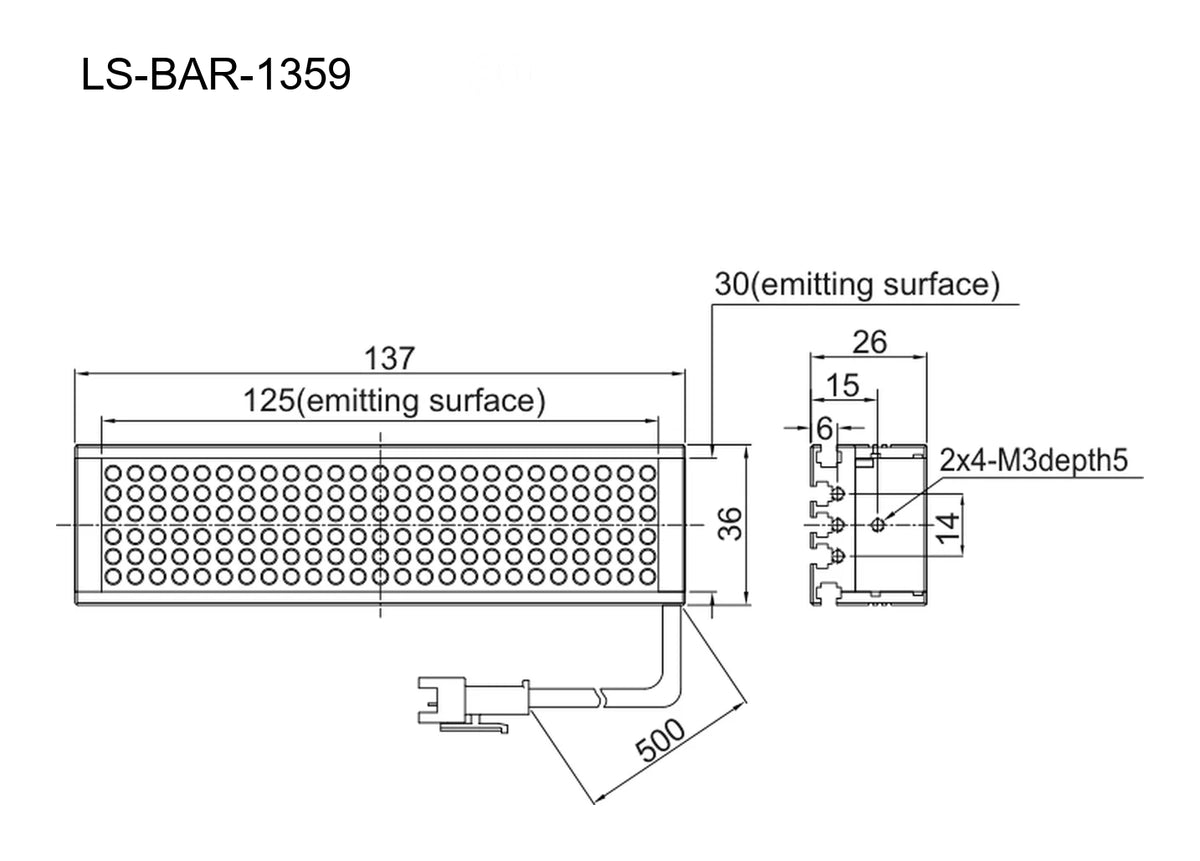

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Peak wavelength | UV: 365-405 nm |
| Emitting surface (mm) | 125 x 30 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Strobe controller, analog controller, digital controller |
| Power (W) | 6.0 |
Mechanical
| Weight (g) | 201 |
|---|---|
| Mounting | 2 x 4-M3 depth 5 |
Photo shows the visible-light version of this light; this model emits ultraviolet light - see the specifications.
