Representative photo of this series
Bar lights
Four-side adjustable bar light (LS-BAR-1350)
Model LS-BAR-1350
- ColourRed, Green, Blue, White
- TypeStrip / combination
- Voltage24 V
- Adjustable angle0-90° per side
$369.00
Ships in 2-3 weeks
2.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Four bar light units on a holder, each side controlled individually and freely adjustable from 0-90 degrees. Good uniformity and a large illumination area; suited to large-area illumination.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1350 |
|---|---|
| Adjustable angle | 0-90° per side |
| L (mm) | 322 |
| W (mm) | 232 |
| H (mm) | 52 |
Interfaces and I/O

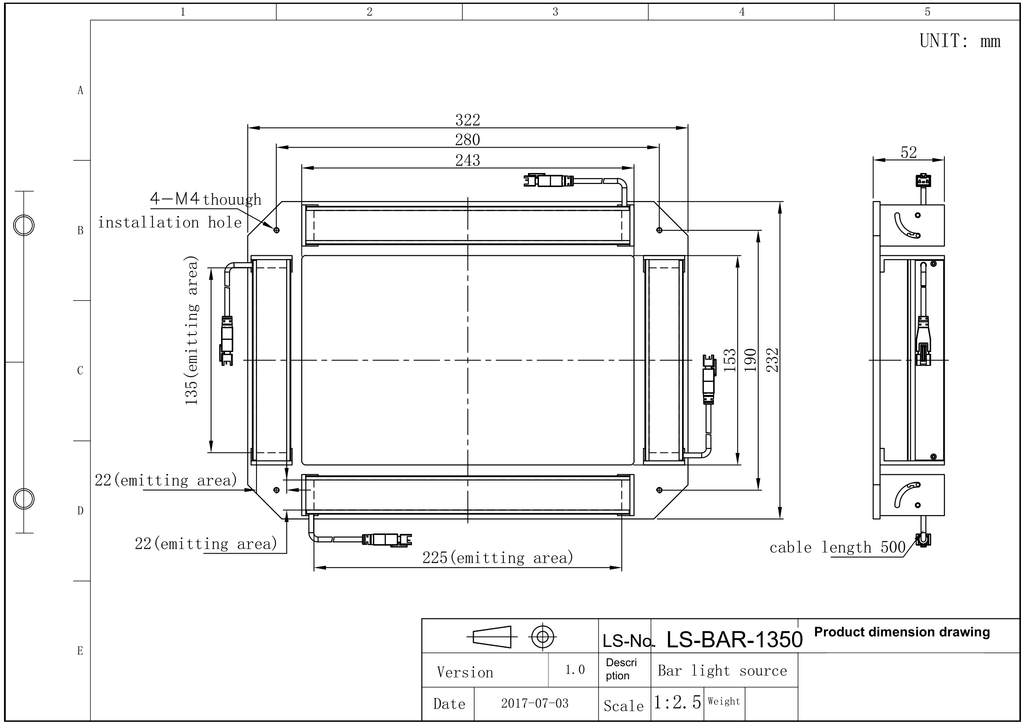

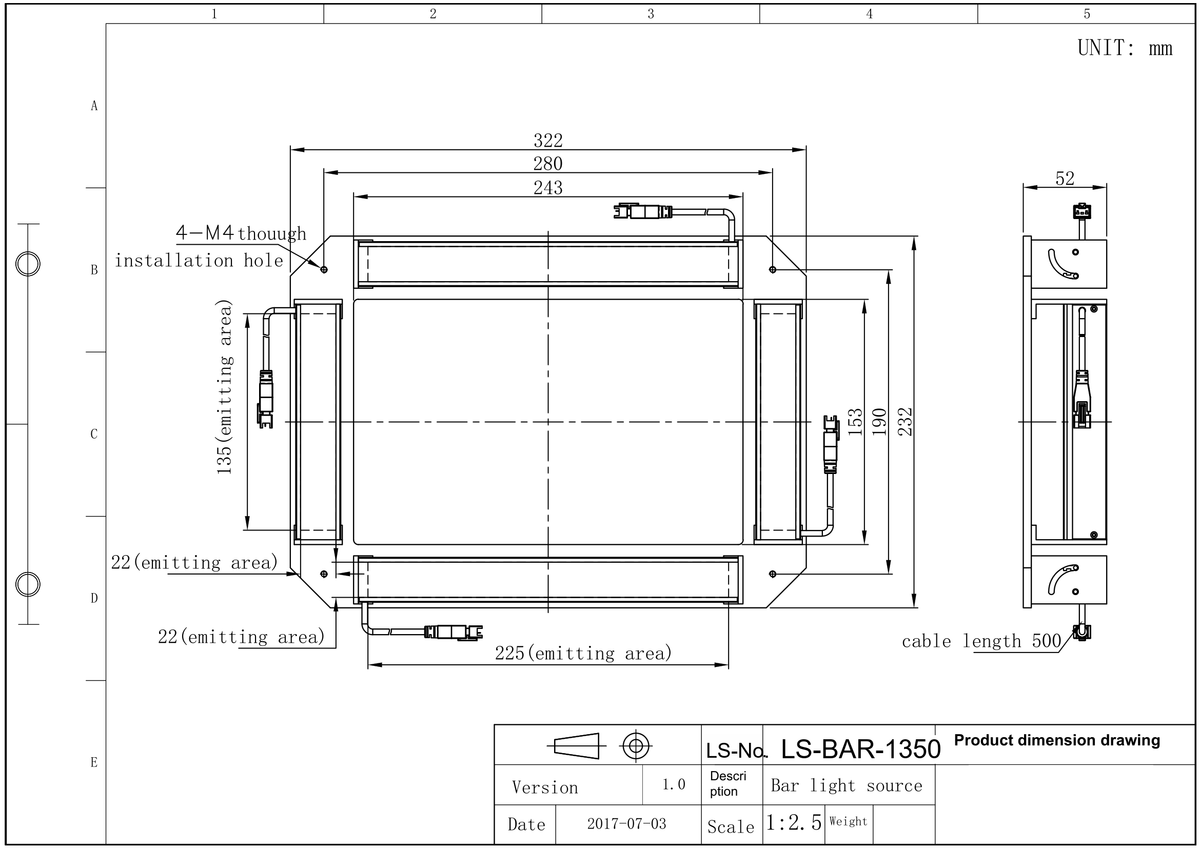

| Cable length | 500 mm (drawings) |
|---|
Electrical
| Power R (W) | 26 |
|---|---|
| Power G/B/W (W) | 39 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Shipping weight | 2.25 kg |
|---|
Other models in the Four-side adjustable bar light (LS-BAR-S108) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-1347 | Red, Green, Blue, White · Strip / combination | $129.00 | Ships in 2-3 weeks | View |
| LS-BAR-1348 | Red, Green, Blue, White · Strip / combination | $159.00 | Ships in 2-3 weeks | View |
| LS-BAR-1349 | Red, Green, Blue, White · Strip / combination | $209.00 | Ships in 2-3 weeks | View |
