Strip combination light source, 17 series
  • Strip combination light source, 17 series

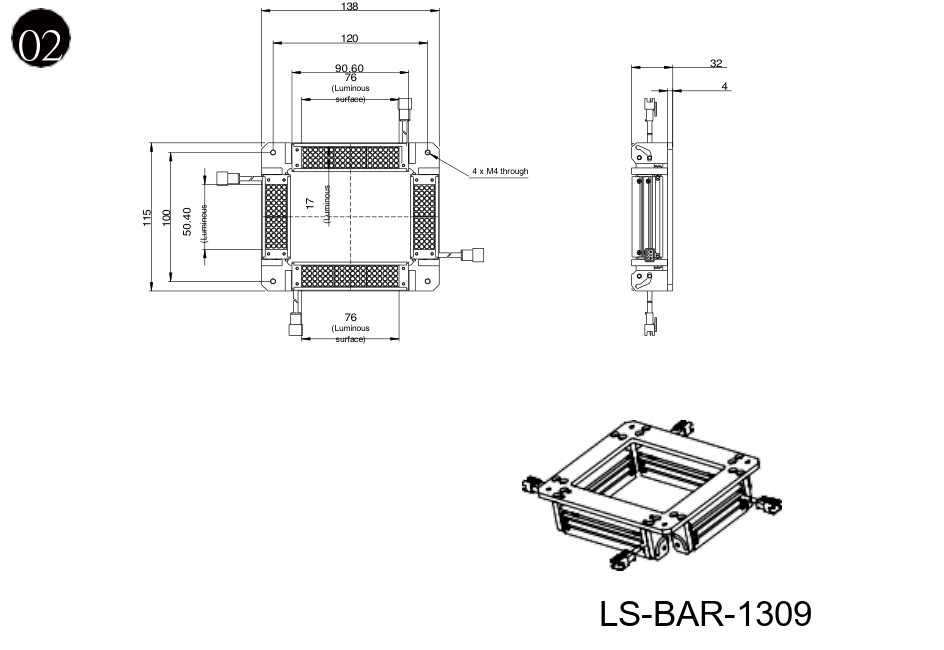

  • LS-BAR-1309 dimensions (mm)

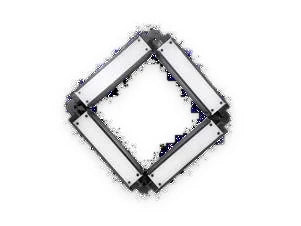

Representative photo of this series

Bar lights

Strip combination light source, LS-BAR-S102 series, 138 mm frame, 50 mm opening (LS-BAR-1309)

Model LS-BAR-1309

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V strip packs on request)
  • TypeStrip / combination
  • Number of lamp rows4
$729.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Strip combination light source, LS-BAR-S102 series, 138 mm frame, 50 mm opening (LS-BAR-1309)LS-BAR-1309

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Combination of four strip lights; the light angle can be freely adjusted and each bar is independently controlled. Good universality, can be freely combined; preferred for large-format lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1309
Number of lamp rows4
ConstructionFour-bar combination
Inner opening (mm)50

Interfaces and I/O

Cable length (mm)500

Light

Bar emitting width (mm)17
Bar emitting length (mm)76 x 50

Electrical

Voltage24 V DC (12 V strip packs on request)
Power red (W)1.87
Power white/blue/green (W)2.13

Mechanical

Height (mm)32
Mounting4 x M4 through
Overall frame size (mm)138
Overall height (mm)32
Shipping weight0.65 kg

Other models in the Strip combination light source, LS-BAR-S102 series series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-1308 113 mm frame, 50 mm opening $649.00 Ships in 2-3 weeks View
LS-BAR-1310 140 mm frame, 76 mm opening $729.00 Ships in 2-3 weeks View
LS-BAR-1311 163 mm frame, 101 mm opening $799.00 Ships in 2-3 weeks View
LS-BAR-1312 190 mm frame, 126 mm opening $889.00 Ships in 2-3 weeks View
LS-BAR-1313 230 mm frame, 151 mm opening $1,009.00 Ships in 2-3 weeks View
LS-BAR-1314 270 mm frame, 202 mm opening $1,139.00 Ships in 2-3 weeks View
LS-BAR-1315 300 mm frame, 227 mm opening $1,229.00 Ships in 2-3 weeks View
