Representative photo of this series
Bar lights
Strip combination light source, LS-BAR-S101 series, 130 mm frame, 60 mm opening (LS-BAR-1301)
Model LS-BAR-1301
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- TypeStrip / combination
- Number of lamp rows3
$699.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Combination of four strip lights in a square frame; the light angle can be freely adjusted and each bar is independently controlled. Good versatility; first choice for large-format lighting.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1301 |
|---|---|
| Number of lamp rows | 3 |
| Construction | Four-bar combination |
| Inner opening (mm) | 60 |
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 2 |
| Power white/blue/green (W) | 2 |

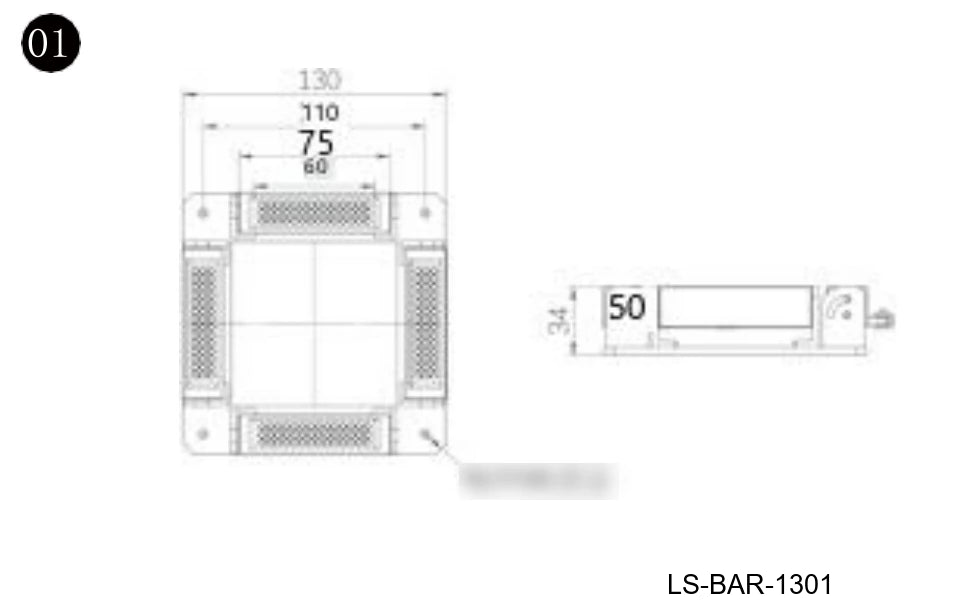

Mechanical
| Height (mm) | 34 |
|---|---|
| Overall frame size (mm) | 130 |
| Overall height (mm) | 34 |
| Mounting | 4 x dia. 3.5 through holes |
| Shipping weight | 0.70 kg |
Other models in the Strip combination light source, LS-BAR-S101 series series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-1302 | 160 mm frame, 90 mm opening | $789.00 | Ships in 2-3 weeks | View |
| LS-BAR-1303 | 198 mm frame, 125 mm opening | $909.00 | Ships in 2-3 weeks | View |
| LS-BAR-1304 | 240 mm frame, 150 mm opening | $1,039.00 | Ships in 2-3 weeks | View |
| LS-BAR-1305 | 280 mm frame, 180 mm opening | $1,169.00 | Ships in 2-3 weeks | View |
| LS-BAR-1306 | 330 mm frame, 240 mm opening | $1,329.00 | Ships in 2-3 weeks | View |
| LS-BAR-1307 | 390 mm frame, 300 mm opening | $1,519.00 | Ships in 2-3 weeks | View |
