Bar lights

Bar Light, 260 x 260 mm, White (LS-BAR-1079)

Model LS-BAR-1079

ColourWhite
Size260 mm × 260 mm × 73 mm
Power34.5 W
TypeDiffused

$319.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bar Light, 260 x 260 mm, White. Angle adjustable for optimal lighting Brightness can be controlled together or individually

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-1079
Irradiation angle	0° to 90° (single bar light)

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000~7000K
LED rows	2
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	34.5 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

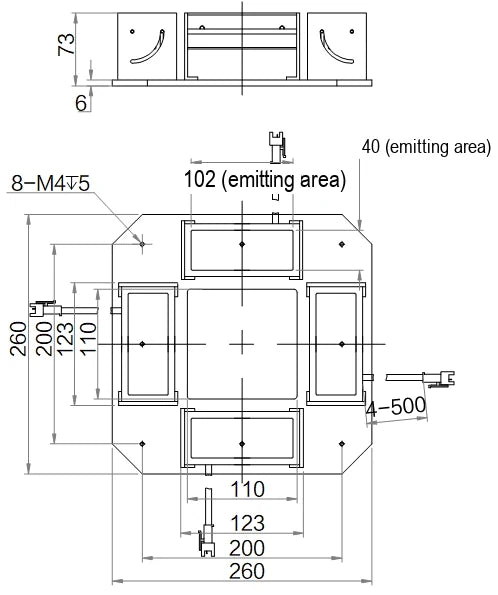

Dimension	260 mm × 260 mm × 73 mm
Shipping weight (estimated)	0.66 kg

Other models in the Bar lights (LS-BAR-S98) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-BAR-1076	78 x 78 mm, White	$189.00	Ships in 2-3 weeks	View
LS-BAR-1077	112 x 112 mm, White	$229.00	Ships in 2-3 weeks	View
LS-BAR-1078	154 x 154 mm, White	$259.00	Ships in 2-3 weeks	View
