Arc bar light (LS-BAR-S95)
  • Arc bar light (LS-BAR-S95)

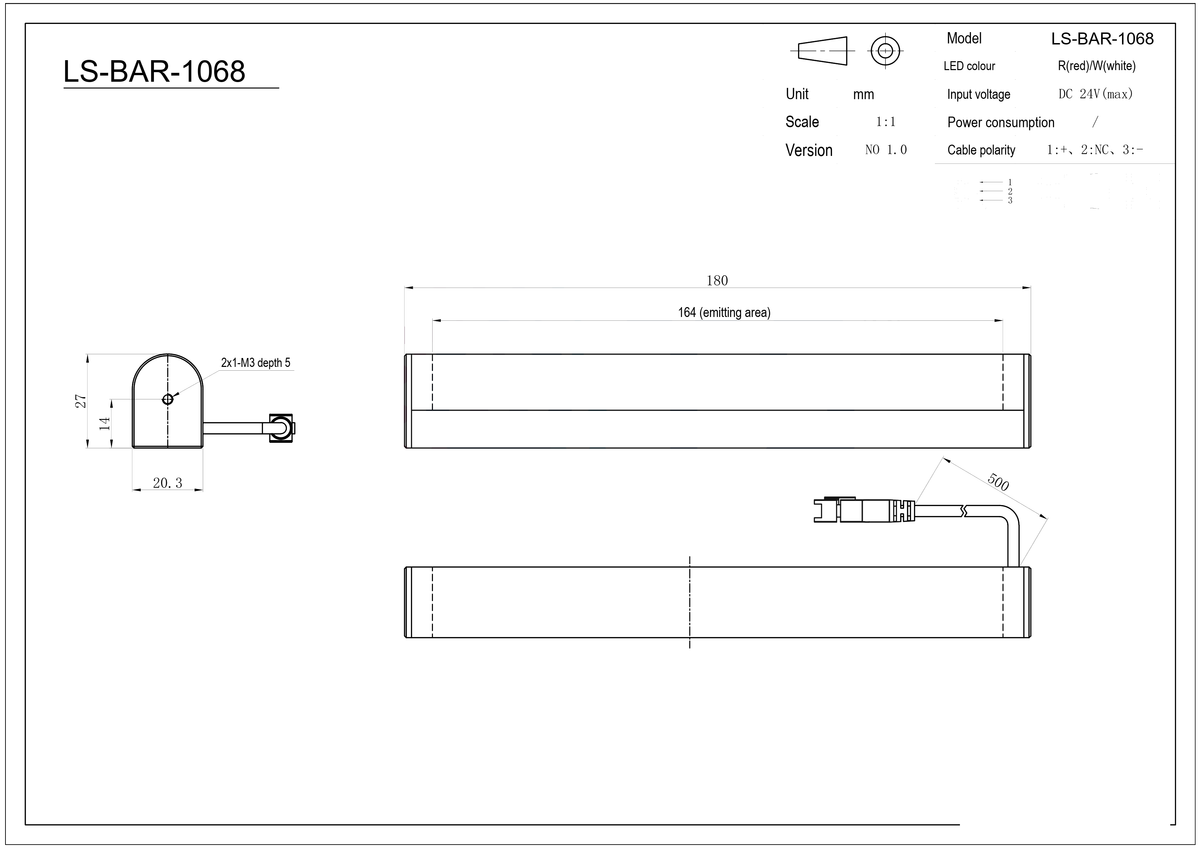

  • LS-BAR-1068 dimensions (mm)

Representative photo of this series

Bar lights

Arc bar light, 180 x 20.3 x 27 mm (LS-BAR-1068)

Model LS-BAR-1068

  • ColourRed, Blue, Green, White
  • Emitting area164 mm
  • SizeL180xW20.3xH27(mm)
  • Voltage24V
  • Power2.4W/2.9W
$219.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Arc bar light, 180 x 20.3 x 27 mm (LS-BAR-1068)LS-BAR-1068

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

This series of products uses a curved diffusion plate with uniform LED to achieve uniform lighting over a wide range; the size can be flexibly customized, and the four-side strip lights can be freely combined, with a wide range of applicability.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1068
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -
Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)164

Electrical

Voltage24V
Power2.4W/2.9W
Input voltageDC 24V (max)

Mechanical

DimensionL180xW20.3xH27(mm)
Mounting holes2×1-M3 depth 5
Shipping weight0.30 kg

Other models in the Arc bar light (LS-BAR-S95) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-1065 Red, Blue, Green, White · 54 mm $129.00 Ships in 2-3 weeks View
LS-BAR-1066 Red, Blue, Green, White · 70 mm $139.00 Ships in 2-3 weeks View
LS-BAR-1067 Red, Blue, Green, White · 100 mm $169.00 Ships in 2-3 weeks View
LS-BAR-1069 Red, Blue, Green, White · 180 mm $239.00 Ships in 2-3 weeks View
LS-BAR-1070 Red, Blue, Green, White · 404 mm $429.00 Ships in 2-3 weeks View
LS-BAR-1071 Red, Blue, Green, White · 650 mm $619.00 Ships in 2-3 weeks View
LS-BAR-1072 Red, Blue, Green, White · 700 mm $659.00 Ships in 2-3 weeks View
