Bar lights
175 x 33 mm IR light, LS-RNG-S43 series (LS-BAR-0927)
Model LS-BAR-0927
- Power17 W
- TypeStandard
- Voltage24 V
- Optional accessoriesExtension cable
$279.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Infrared lights custom-made for light shape and illumination mode, using differences in spectral reflectance for a variety of measurements.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0927 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Luminous dimension (mm) | 175 x 33 |
|---|---|
| Diffuser | diffuse plate optional |
| Wavelength IR | 940 nm |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125, LS-CTL-S32 series (match the power of the light source) |
|---|---|
| Power (W) | 17 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical

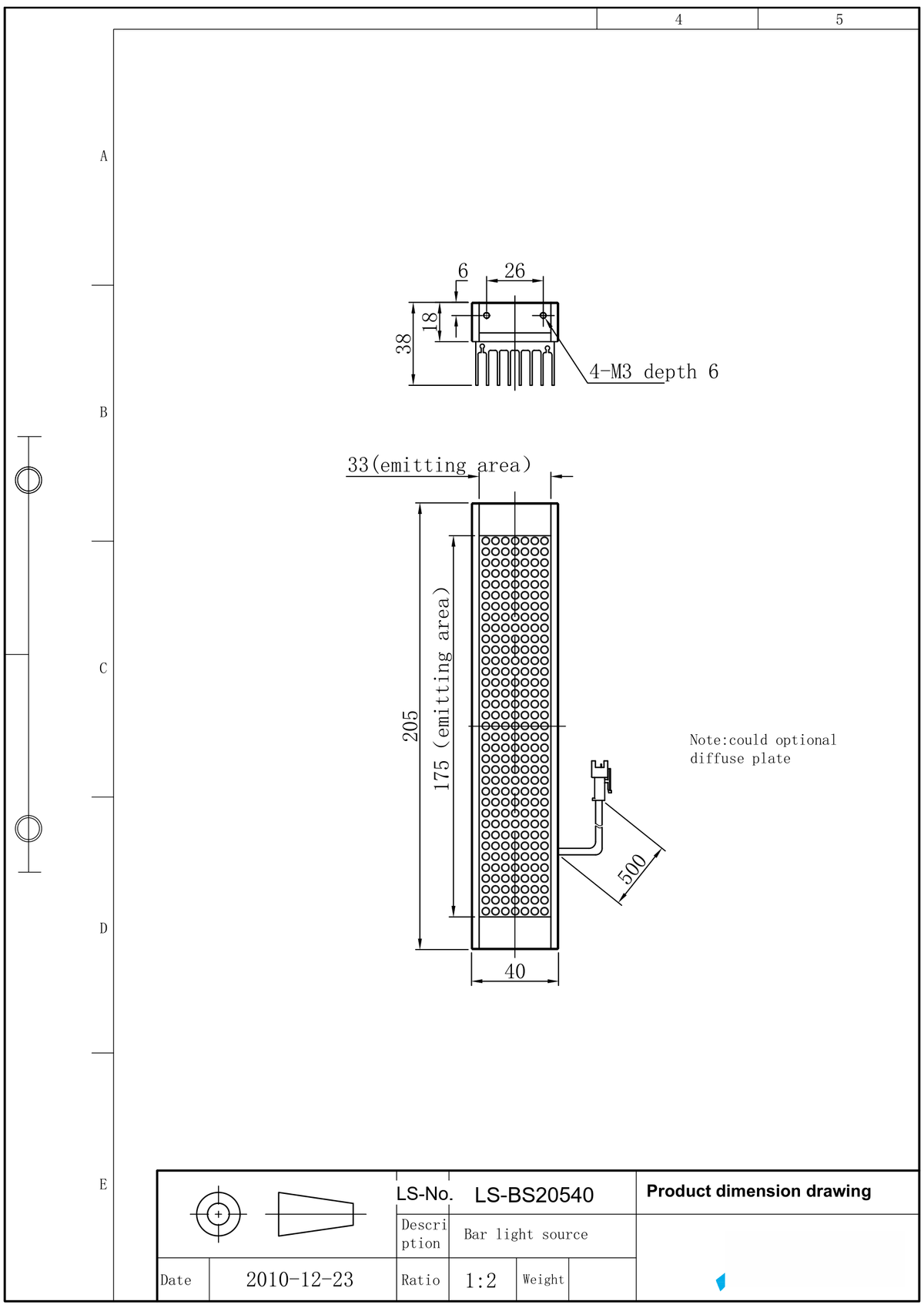

| Overall size (mm) | L205 x W40 x H38 |
|---|---|
| Shipping weight | 0.55 kg |
Photo shows another wavelength version of this light; this model emits 940 nm infrared light - see the specifications.
