Bar light (LS-BAR-S85)
  • Bar light (LS-BAR-S85)

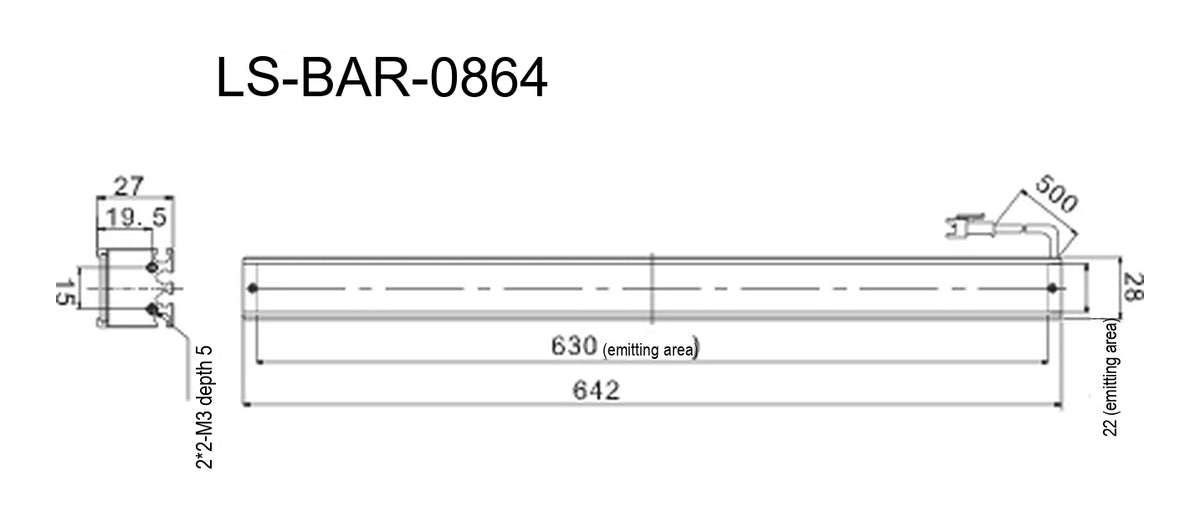

  • LS-BAR-0864 dimensions (mm)

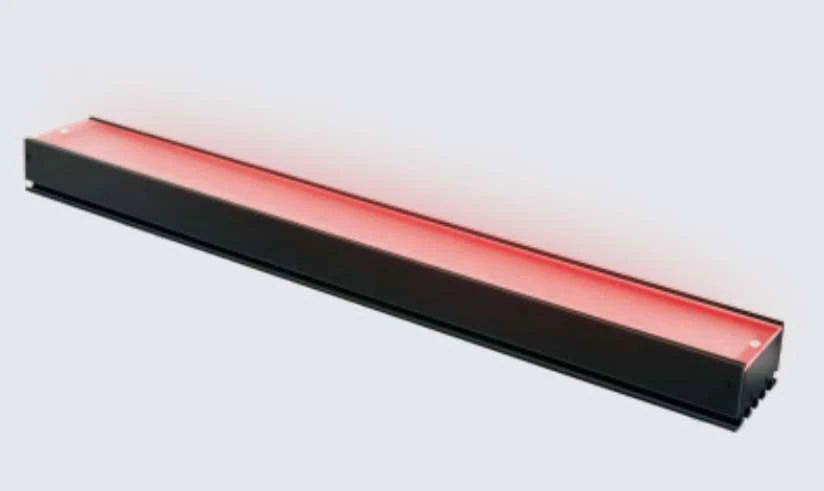

Representative photo of this series

Bar lights

630 x 22 mm Bar light (LS-BAR-0864)

Model LS-BAR-0864

  • ColourRed, Green, Blue, White
  • Emitting area630 x 22 mm
  • TypeStandard
  • Voltage24 V
$679.00

Ships in 2-3 weeks

0.8 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

630 x 22 mm Bar light (LS-BAR-0864)LS-BAR-0864

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar lights are especially suited to imaging large features; lengths range from a dozen-odd millimetres to several metres and the light colour is chosen as needed. Several bar lights can be combined freely and the illumination angle adjusted to the inspection. (Length can be customised: length = 57 + 45 x N; above 1002 mm splicing is recommended.)

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0864
Expected lifeRed and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%)
Support1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view

Interfaces and I/O

Cable length (mm)500

Light

LED rows4
Emitting area (mm)630 x 22
Wavelength red620-630 nm
Wavelength green525 nm
Wavelength blue470 nm
Colour temperature white5000-8000 K

Environment and compliance

Operating environmentAmbient about 25 °C, operating temperature within 35 °C

Electrical

Recommended controllersLS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T
Power, green / blue / white (W)32.0
Power, red (W)21.5
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142, LS-CTL-0526, LS-CTL-0333

Mechanical

Mounting2 x 2-M3 threads, depth 5 (per drawing)
Size (mm)L 642 x W 28
Height (mm)27
Shipping weight0.80 kg
