Rendered illustration: the actual product may differ in appearance.

Bar lights

80 x 16 mm waterproof bar light (LS-BAR-0818)

Model LS-BAR-0818

ColourRed, Blue, White, Green, Infrared
Emitting area80 mm
Voltage16 V
TypeStandard

$110.00

Ships in 3-4 weeks

1.0 kg shipping weight

Color Red Blue White Green Infrared

Volume pricing, Net 30 terms or a formal quote for purchasing?

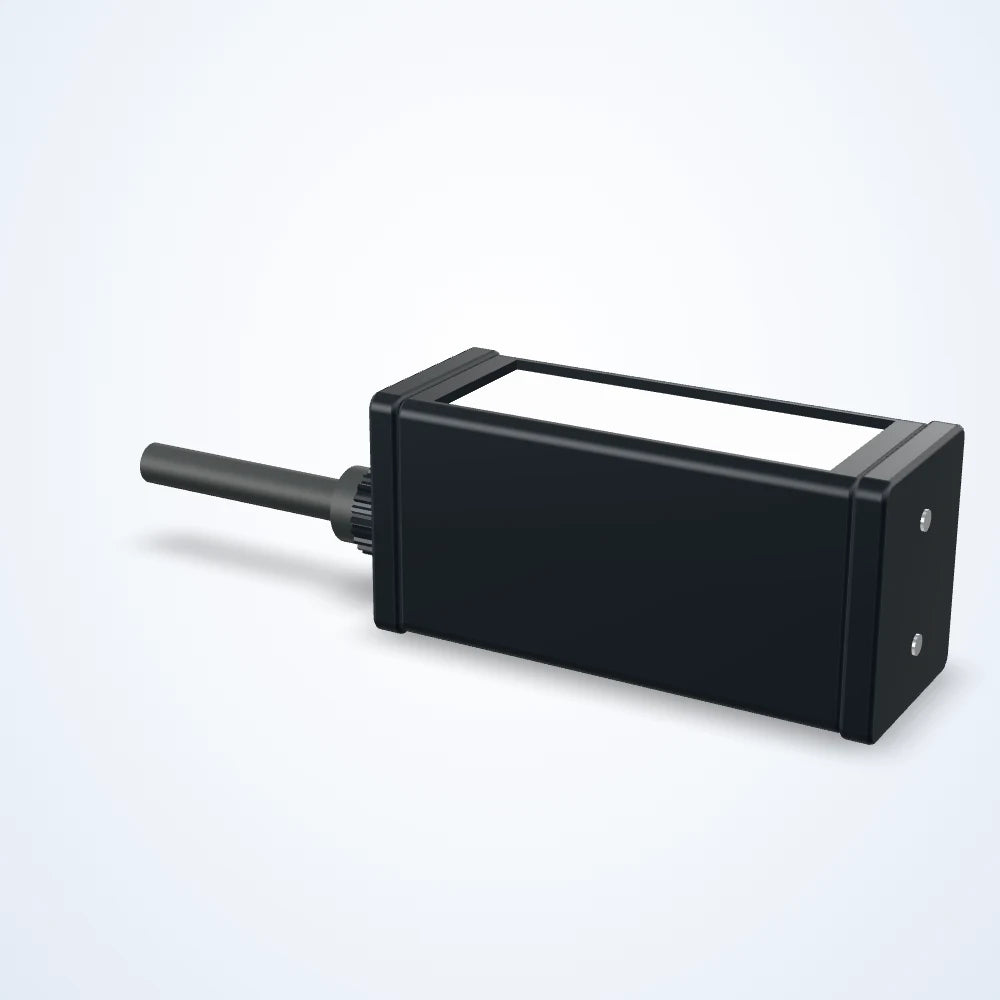

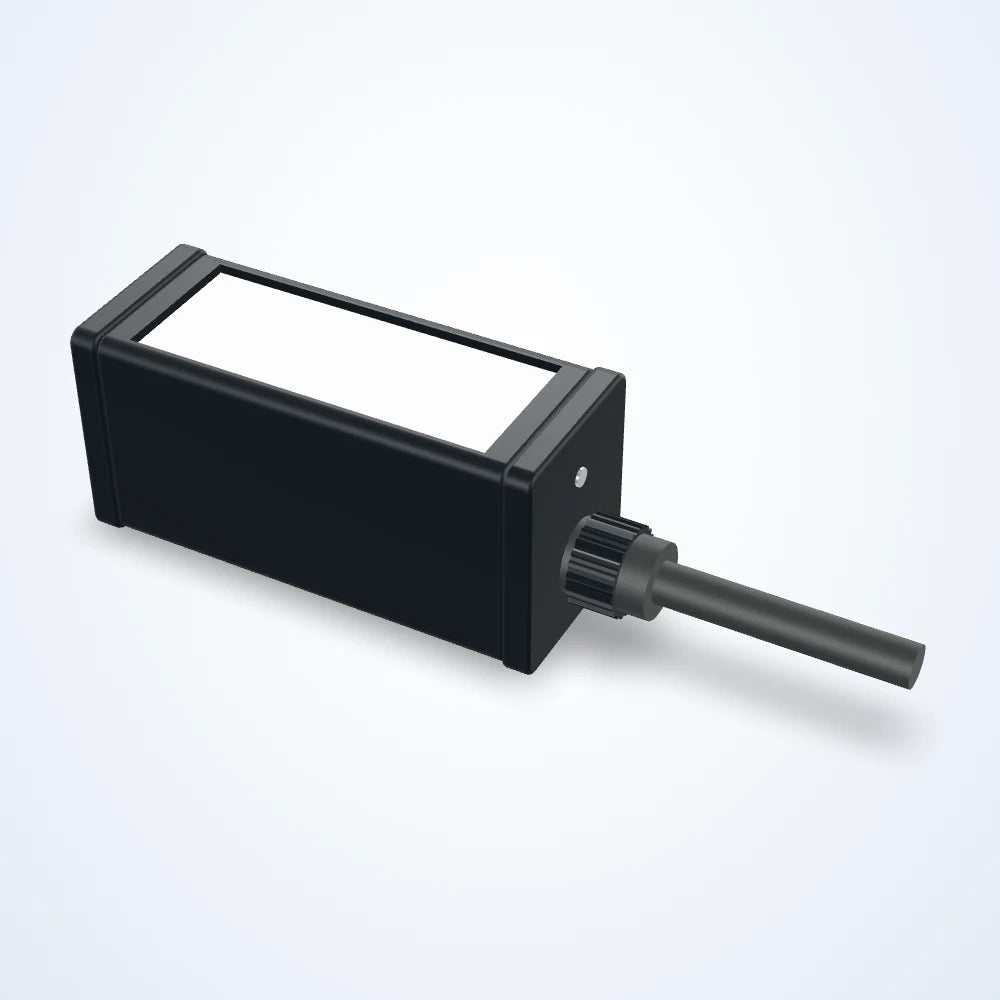

Waterproof bar light for directional and low-angle illumination. Emitting area 80 x 16 mm; 16 V supply; available in red, blue, white, green, infrared.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0818
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Pin assignment	1: (+), 2: NC, 3: (-)

Interfaces and I/O

Connector	SMR-03 V-B
Cable length	500 mm

Light

Emitting area (mm)	80
Wavelength	Red: 620-630 nm; Blue: 465-475 nm; Green: 515-530 nm; White: 6000-10000K(ColorTemperature)

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	16 V
Power (red)	24
Power (blue / white / green)	2.7

Mechanical

Housing material	Aluminum alloy, Resin
Shipping weight	1.00 kg

Other models in the Waterproof bar lights (LS-BAR-S84) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-BAR-0817	40 x 16 mm	from $90.00	Ships in 3-4 weeks	View
LS-BAR-0819	119 x 16 mm	from $135.00	Ships in 3-4 weeks	View
LS-BAR-0821	158 x 16 mm	from $150.00	Ships in 3-4 weeks	View
LS-BAR-0820	146 x 30 mm	from $165.00	Ships in 3-4 weeks	View
LS-BAR-0822	197 x 16 mm	from $170.00	Ships in 3-4 weeks	View
LS-BAR-0823	290 x 30 mm	from $255.00	Ships in 3-4 weeks	View
