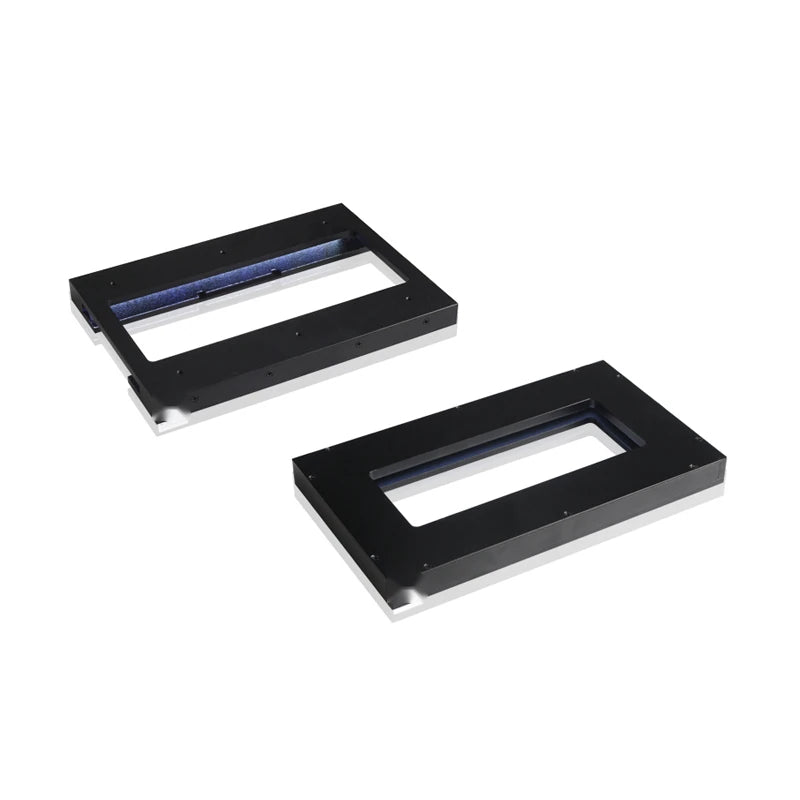

Representative photo of this series
Bar lights
Pin inspection light, 120 x 75 x 13.5 mm (LS-BAR-0811)
Model LS-BAR-0811
- SizeL120xW75xH13.5(mm)
- Voltage24V
- Power2.9W/5.8W
- TypeStandard
$169.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Pin inspection light use surface-mount LED, the light ray is thin, similar as laser light. Compact volumn, easy to install. Applicate in slender object inspection, such as Pin inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0811 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

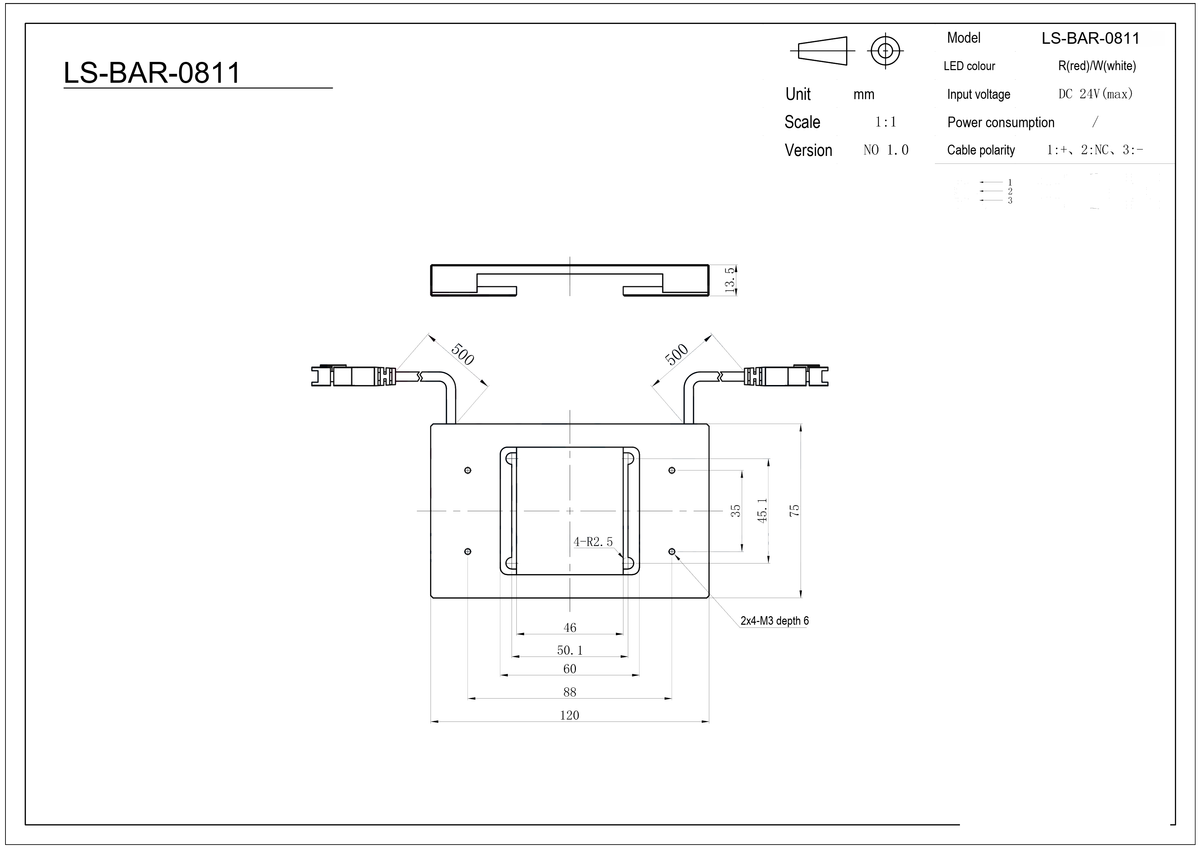

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 2.9W/5.8W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L120xW75xH13.5(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 6 |
| Shipping weight | 0.35 kg |
Other models in the Pin inspection light (LS-BAR-S83) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0812 | L120xW110xH16(mm) · 24V | $169.00 | Ships in 2-3 weeks | View |
| LS-BAR-0813 | L150xW120xH26(mm) · 24V | $199.00 | Ships in 2-3 weeks | View |
| LS-BAR-0814 | L170xW120xH13.5(mm) · 24V | $219.00 | Ships in 2-3 weeks | View |
| LS-BAR-0815 | L190xW110xH16(mm) · 24V | $229.00 | Ships in 2-3 weeks | View |
