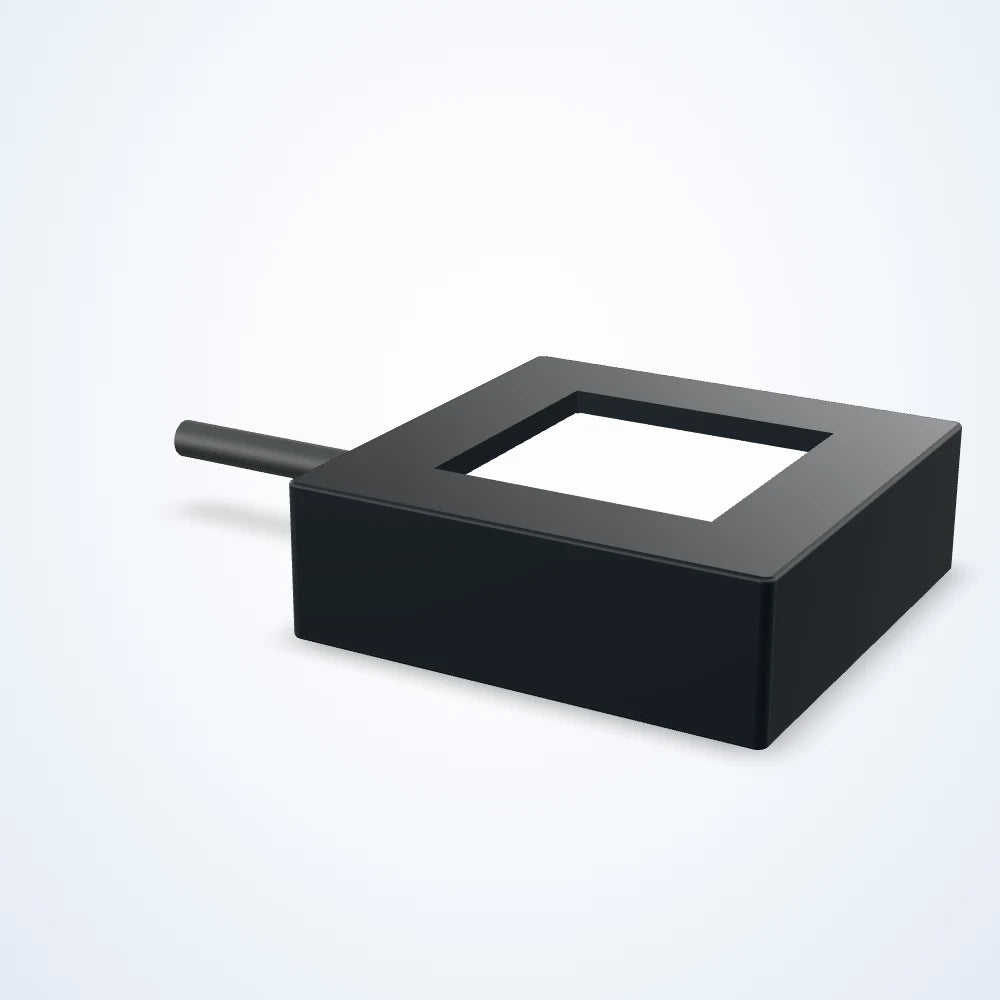

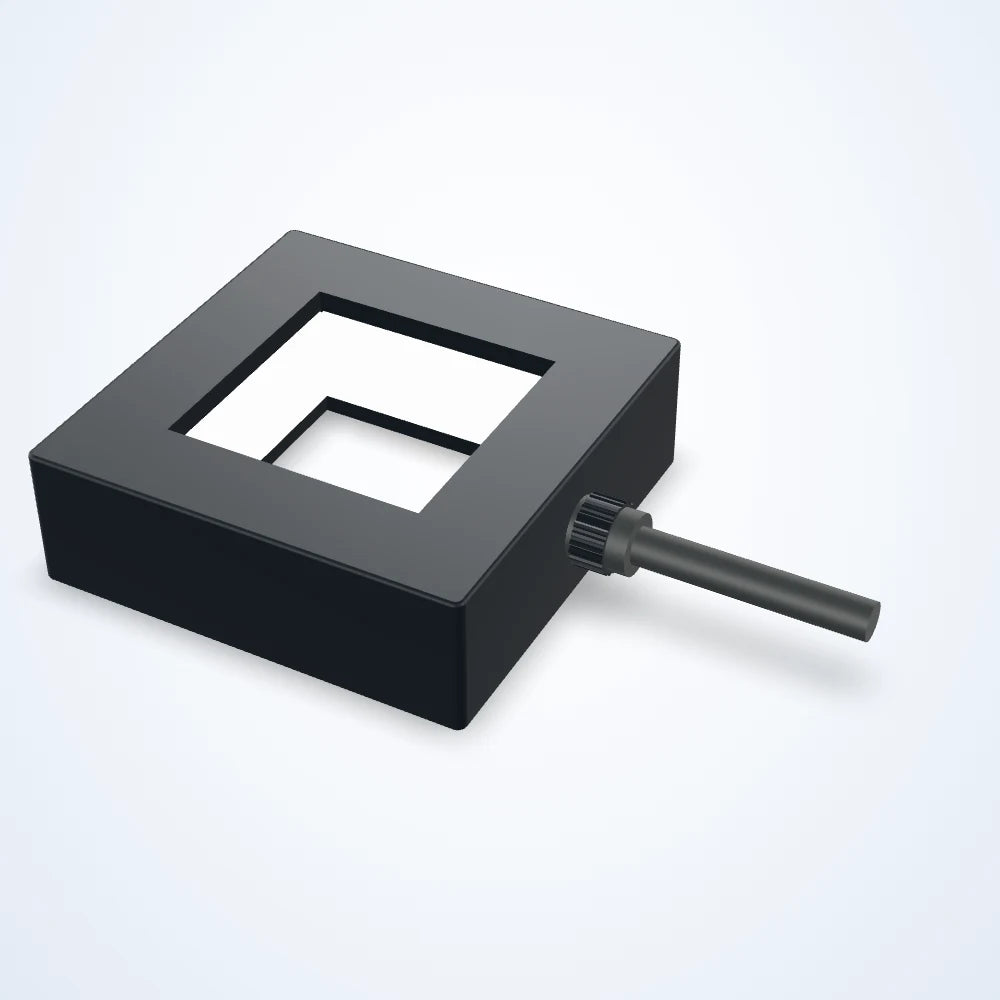

Rendered illustration: the actual product may differ in appearance.
Bar lights
40 x 40 mm square bar light (LS-BAR-0797)
Model LS-BAR-0797
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting area40 x 40 mm
- Size102 × 201 × 43 mm
- Voltage24 VDC
$300.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Square bar light for directional and low-angle illumination. Emitting area 40 x 40 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0797 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
| Inner Hole | 54.5×54.5 mm |
| Pin assignment | 1: (+), 2: NC, 3: (-) |
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | 500 mm |
Light
| Emitting area (mm) | 40 x 40 |
|---|---|
| Wavelength | Red: 620-630 nm; Blue: 465-475 nm; Green: 515-530 nm |
| Colour temperature (white) | 6000-7500K |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity: 20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|

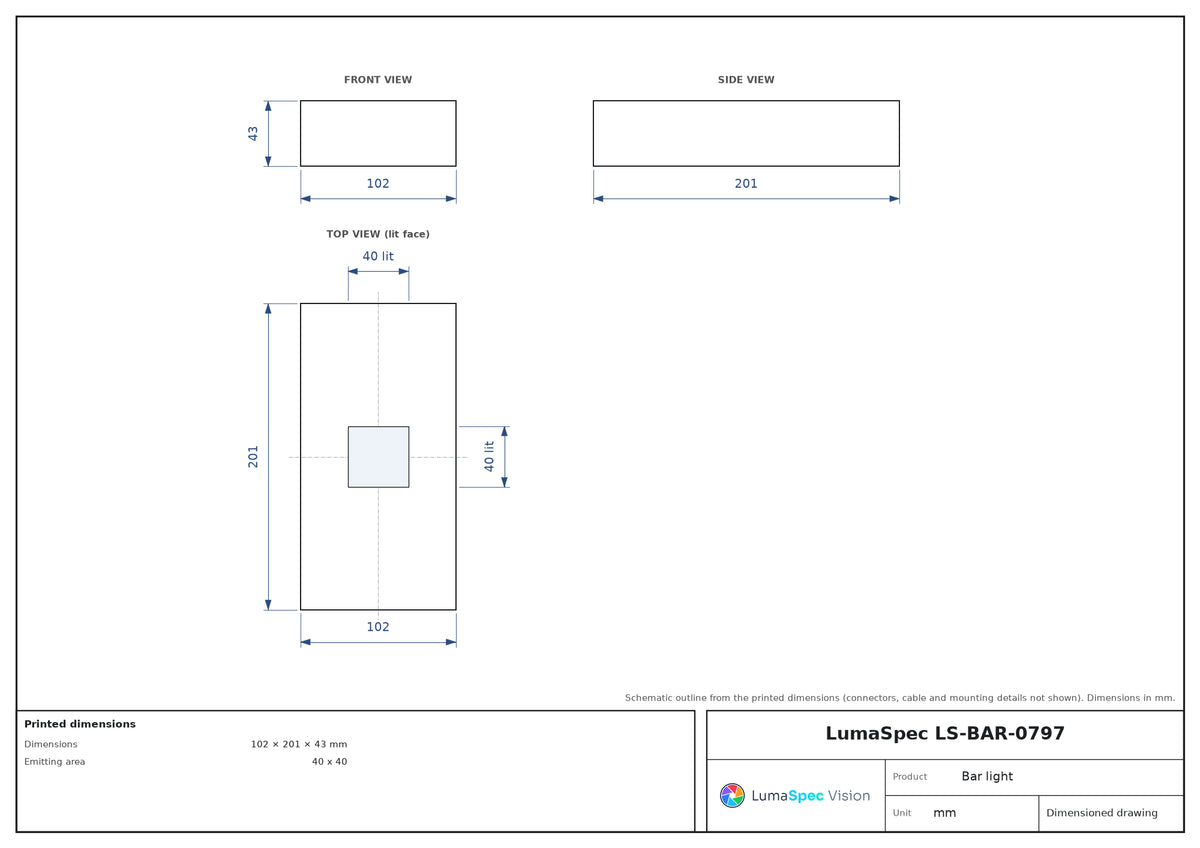

| Dimensions (mm) | 102 × 201 × 43 mm |
| Shipping weight | 2.00 kg |
