Representative photo of this series
Bar lights

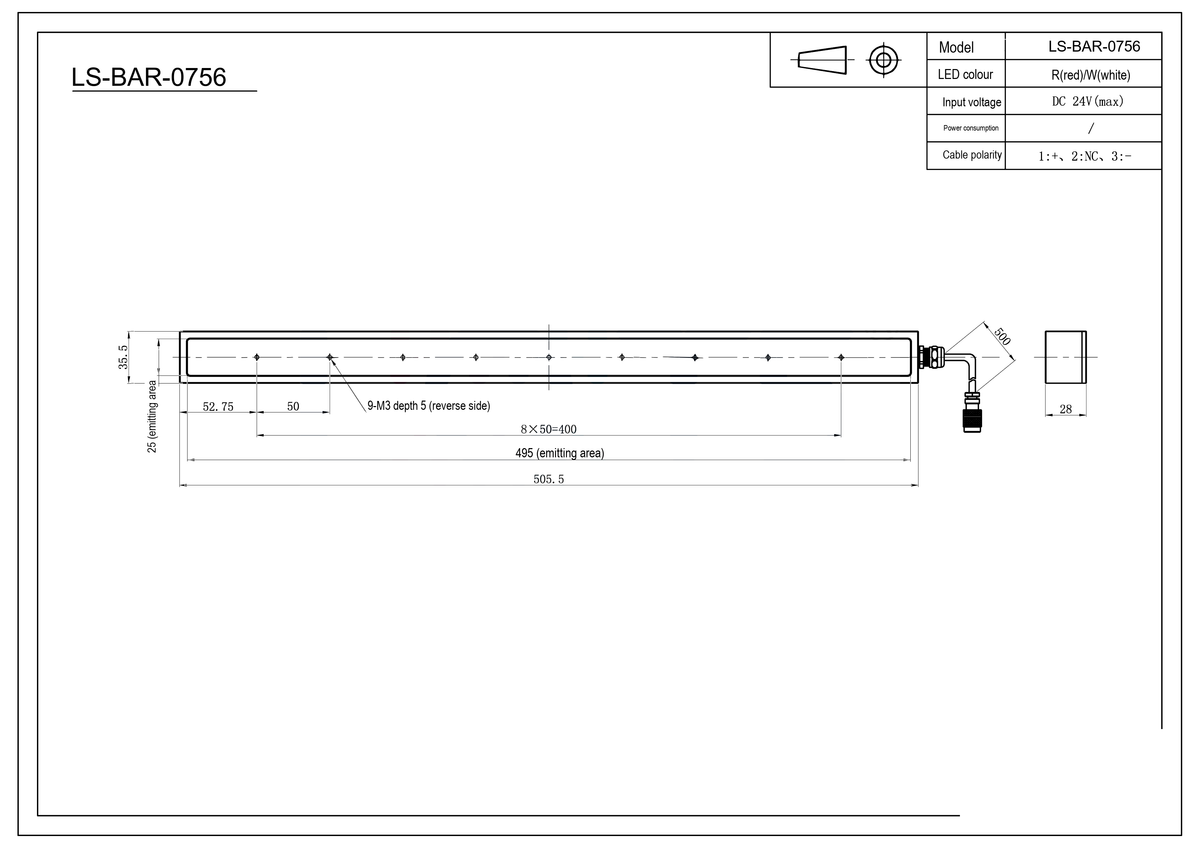

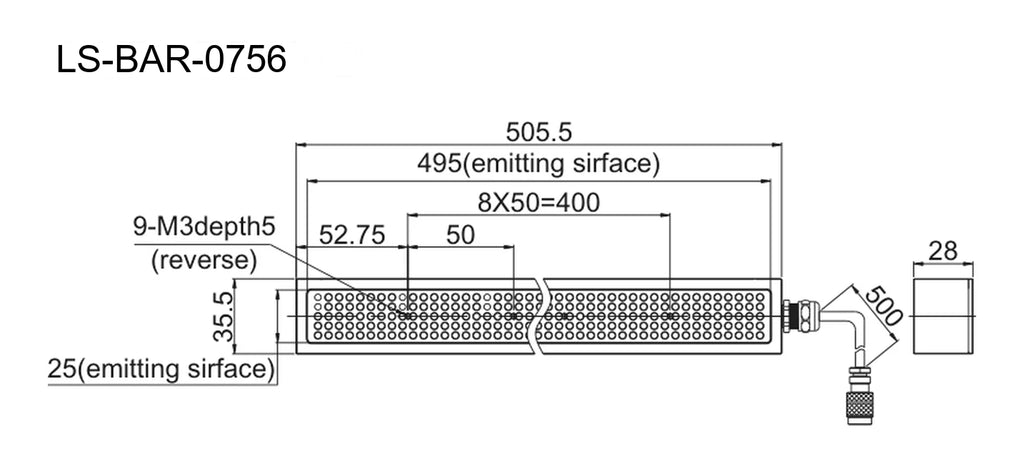

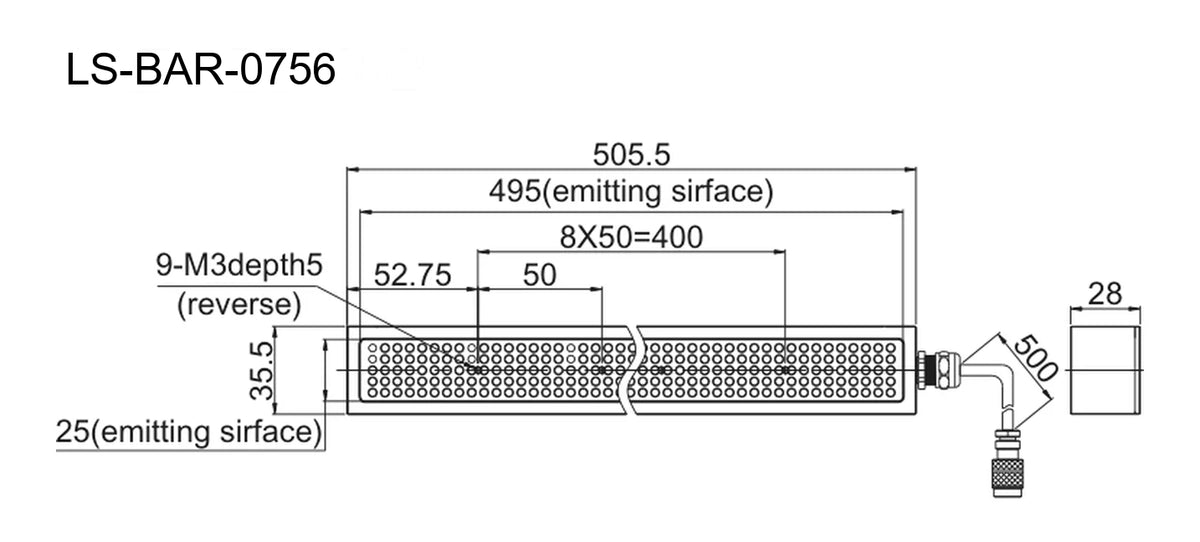

495 x 25 mm Waterproof bar light (LS-BAR-0756)
Model LS-BAR-0756
- ColourRed, Green, Blue, White
- Emitting area495 x 25 mm
- SizeL505.5xW35.5xH28(mm)
- Voltage24 V
- Power5.8W/10.6W
$569.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Light for humid, dusty or harsh environments with a special leakproof structure and heat-dissipating material; passed 12 h dust-box and 12 h sprinkler tests and holds IP54 certification from SGS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0756 |
|---|---|
| Dustproof test | 12 h in a professional dust box with continuous dust drift |
| Waterproof test | 12 h spray by professional sprinkler at 800 mm |
| Customizable | shape, colour and colour temperature, cable length, installation method, multi-area control |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
|---|
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting surface (mm) | 495 x 25 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller |
| Protection | IP54 (SGS certified) / IP67 level |
| Power, R (W) | 5.8 |
| Power, G/B/W (W) | 10.6 |
| Power | 5.8W/10.6W |
| Input voltage | DC 24V (max) |
Mechanical
| Weight (g) | 860 |
|---|---|
| Mounting | 9-M3 depth 5 (reverse) |
| Dimension | L505.5xW35.5xH28(mm) |
| Mounting holes | 9-M3 depth 5 (reverse side) |
Other models in the Waterproof bar light (LS-BAR-S78) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0753 | 90 x 32 mm | $209.00 | 19 in stock | View |
| LS-BAR-0754 | 254 x 25 mm | $289.00 | 17 in stock | View |
| LS-BAR-0755 | 375 x 40 mm | $399.00 | 15 in stock | View |
